DO NOT SCALE

Notes:

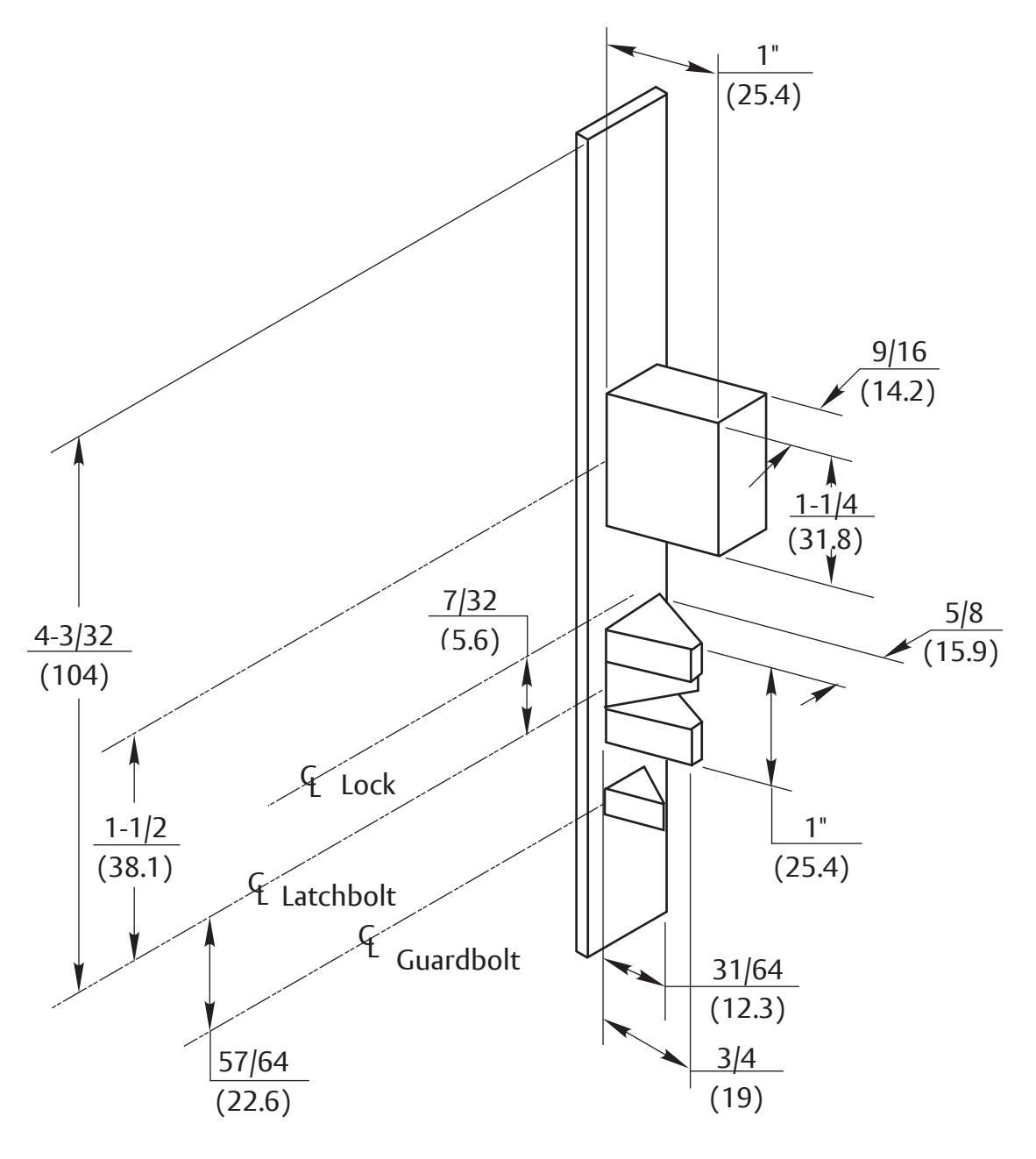

  • 1. The illustration indicates the location of the latchbolt, deadbolt and guardbolt (when used) for all mortise functions.
  • 2. When electric door openers are specified, it is the responsibility of the hardware consultant to coordinate template information of both the lock and electric door opener with the door and frame manufacturers.
  • 3. All dimensions given in inches (mm) unless otherwise noted.
  • 4. Latchbolt, guardbolt and deadbolt are in the same location for all mortise lockbodies.

Corbin Russwin ML2000 Series Mortise Locks Bolt Position Dimensions Mechanical, Electrical, Exit Device Template_T31265 diagr

ML2000 Series Mortise Locks

Bolt Position Dimensions Mechanical / Electrical / Exit Device
