FM212 1/14
® ElectroLynx Connector System ® For ASSA ABLOY Group Doors and Hinges with ElectroLynx Connector System

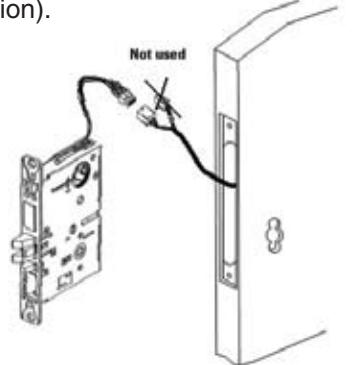

• Plug 8-pin lock connector into 8-pin door connector (4-pin door connector not used for this application).
- Install lock per instruction sheet provided

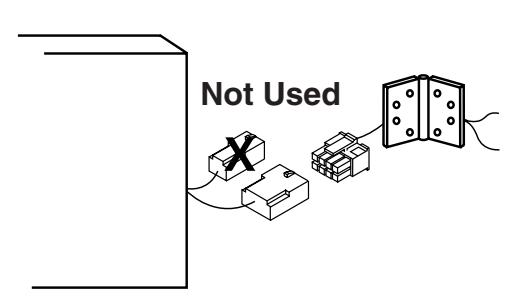

- Plug 8-pin door connector into 8-pin hinge connector (4-pin door connector not used for this application).
• Wire hinge to power source
For non ElectroLynx Connector System, door install available retrofit harness and use with ElectroLynx hinge. Follow installation instructions for ElectroLynx Connector System.
For non ElectroLynx Connector System door and hinge, remove connector on lock (warranty void if rectifier module is removed). Use proper crimp splices or wire nuts in accordance with local code for terminating connections. No polarity of wires is required.
Use template T30970 for door preparation
• Electrical Specifications 24 Volts AC/DC +/-10% Operating Current 390 mA
12 Volts AC/DC +/-10% Operating Current 880 mA

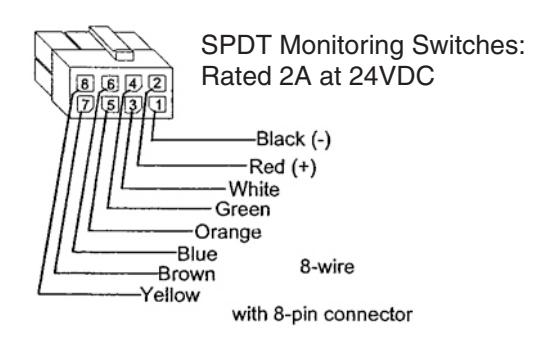

| 8 PIN RECEPTACLE | 4 PIN RECEPTACLE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ML20900 SERIES
ORTISE LOCK |
1-BLACK | 2-RED |
WHITE
3- |
4-GREEN | 5-ORANGE | 6-BLUE |
WN
O 7-BR |
W
8-YELLO |
OLET
9-VI |
10-GRAY | 11-PINK | 12-TAN |
| POWER |
REQUEST TO EXIT MONITOR
M92 |
LATCH BOLT MONITOR
M91 |
||||||||||
| (-) | (+) | Common |
Normally
Open |
Normally
Closed |
Common |
Normally
Open |
Normally
Closed |
NOT | ||||
|
SECURITY MONITOR
M105 |
USED | |||||||||||
| M | Common |
Normally
Open (Unlocked) |
Normally
Closed |
|||||||||
Hardwiring Made Easy
As part of their promise to provide innovative, fast and effective high security solutions to their customers, ASSA ABLOY Group companies offer ElectroLynx®, a universal quick-connect system that simplifies the electrification of the door opening. ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
