Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. (*) When preparing doors for lead wrapped locks, add 1/8 (3.2) to dimensions marked (*) to allow proper clearance.
• 3. 1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
• 4. For preparation of security trim, refer to T30573.
• 5. Dimensions given in inches and (mm).

Series		Required Holes
Function	Α	В	С	D
ML2010HS, ML2210HS
ML2013HS, ML2213HS	•		•
ML2020HS, ML2220HS				•
ML2022HS, ML2222HS		•
ML2024HS, ML2224HS	•		•
ML2029HS, ML2229HS	•
ML2030HS, ML2230HS				•
ML2032HS, ML2232HS,
ML2042HS, ML2242HS,		•
ML2072HS
ML2048HS, ML2248HS	•		•
ML2051HS, ML2251HS,
ML2055HS, ML2255HS,	•
ML2057HS, ML2257HS
ML2060HS, ML2260HS				•
ML2065HS, ML2265HS,
ML2067HS, ML2267HS,
ML2069HS, ML2269HS,
ML2075HS

CAUTION: DOOR & FRAME MANUFACTURERS

When door gasketing or silencers are used, proper allowances must be made for strike location to maintain a common centerline with lock and door as shown so that bolt will freely enter strike.

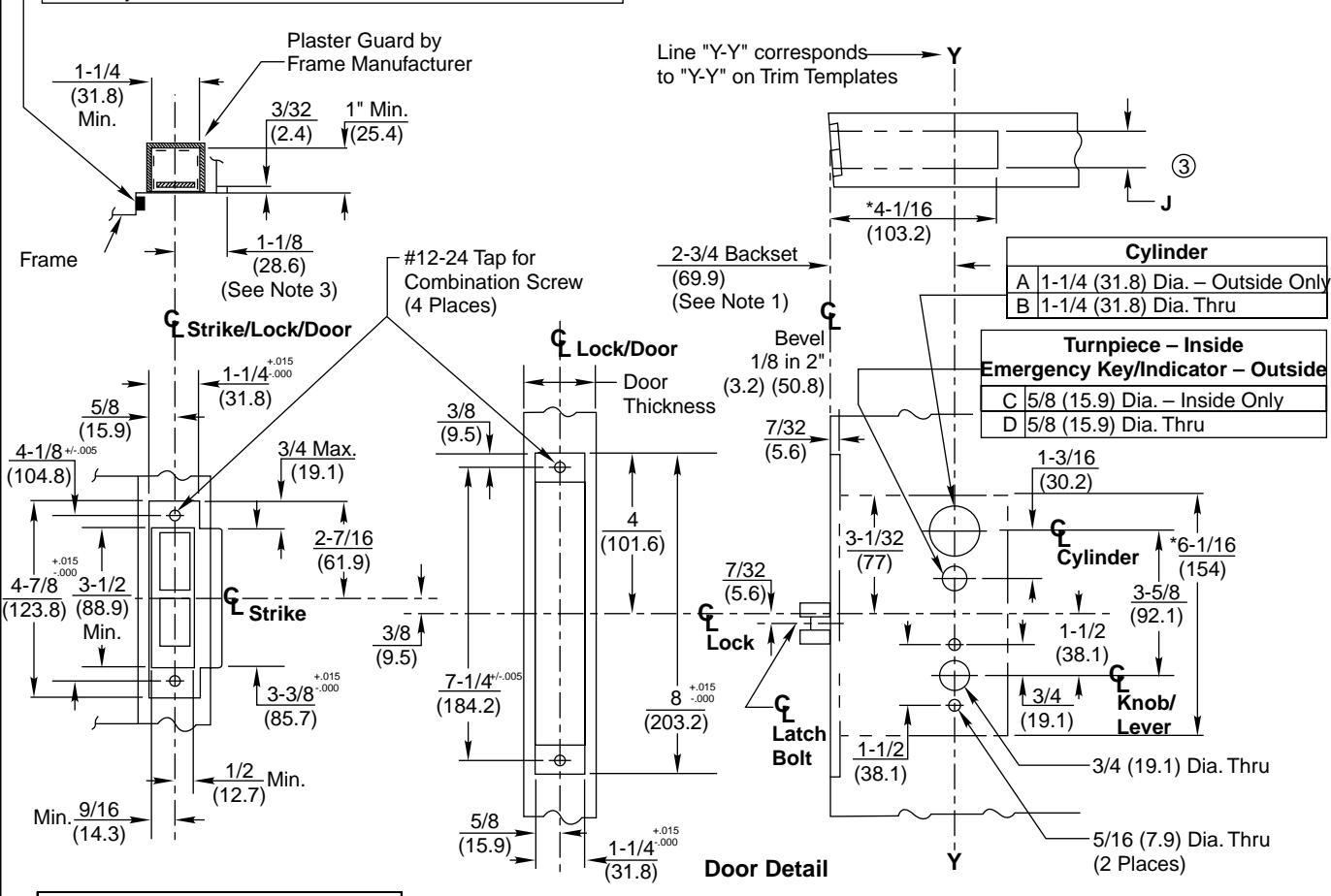

FRAME DETAIL
ANSI Strike	Description
236L72	Latch & Dead Bolt Holes
236L73	Latch Bolt Hole Only
236L74	Dead Bolt Hole Only
And Optional Box 120F76

G	Н	J	Door Thickness
1-1/4 (31.8)	5/8 (15.9)	1-1/16 (27)	1-3/4 Min. (44.5) Standard
1-1/16 (27)	17/32 (13.5)	1-1/32 (26.2)	1-3/8 Min. (34.9) Optional

Tolerances
Inches	(mm)
.005	(.127)
.015	(.381)

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ML2000HS / ML2200HS Series

High Security Mortise Lock

T30604-3

www.corbinrusswin.com

Do Not Scale Drawing Supersedes T30604-2 Dr. Date

Template Number

(3)

7-03
