Installation Instructions
MELR Retrofit Kit
PED5000 / PED4000 Series Exit Devices
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov.
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
WARNING
Attention Installer: Improper installation may result in damage to the product and void the factory warranty.
PED Series Exit Devices
Installation Instructions

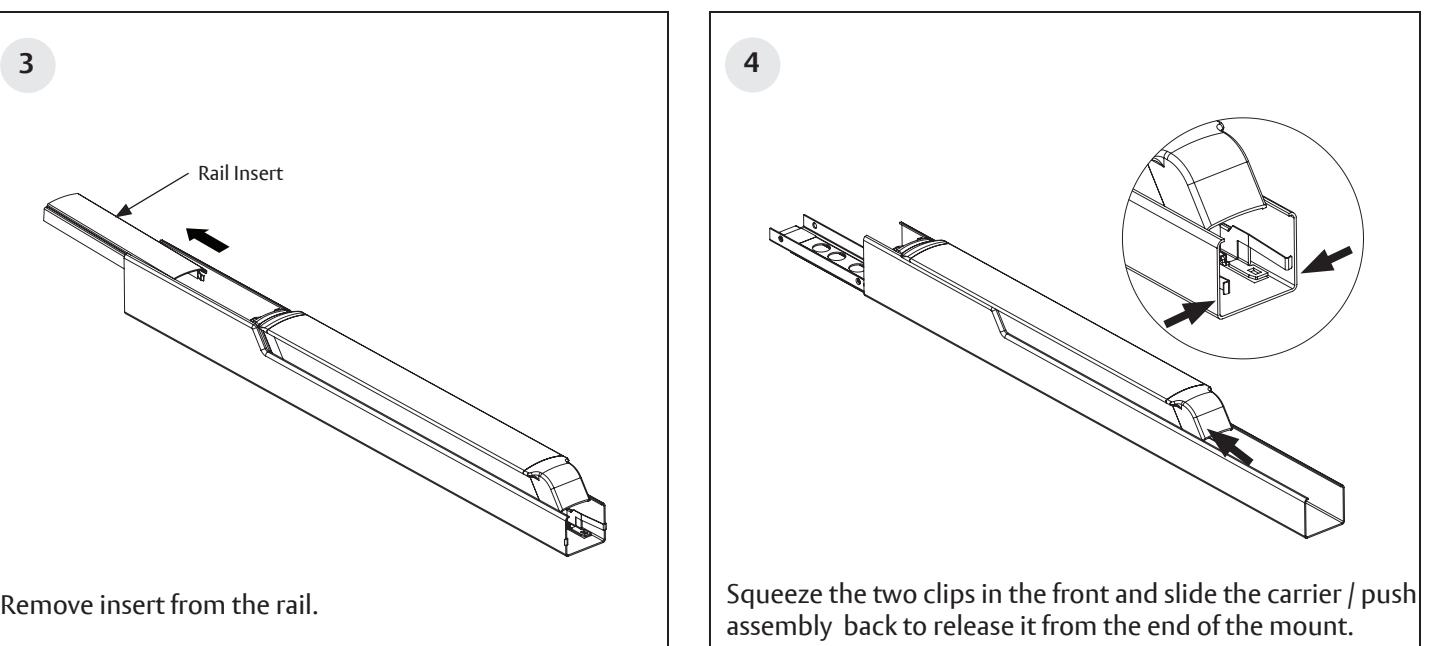

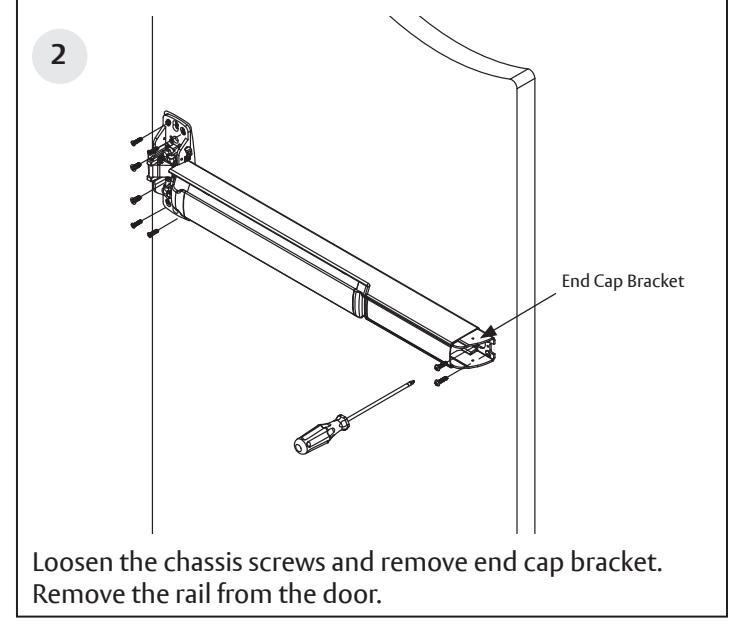

Remove the four wear guides (two on each side) by tapping them with a hammer to pop them out. There will be new wear guides to install in the kit, if these break during removal.
NOTE: Save these screws.
and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access
FM805 12/23
PED Series Exit Devices
Installation Instructions
Remove screw from dogging slope assembly. Replace it with the longer screw from the retrofit kit. The longer screw will hold the plug in place. Discard dogging cam, bushing, & spring.

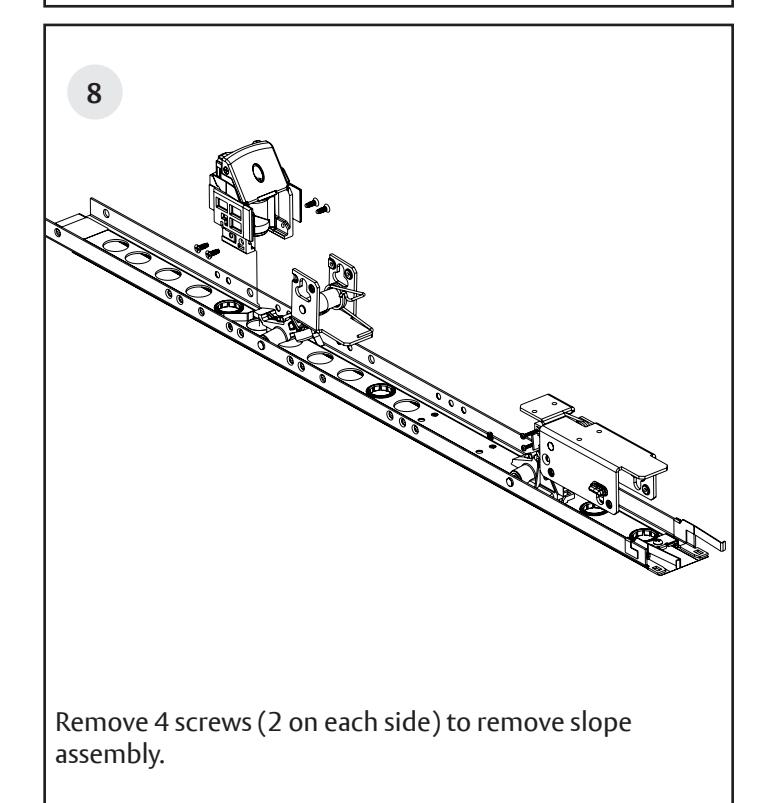

Reattach the dogging slope on the assembly with the four screws from step eight.
Note: The dogging slope is reattached to the new carrier assembly received with the ELR kit.
Attach the wire harness to the controller before it's locked into the dogging slope.
Take the controller and plug it into the back of the dogging slope assembly. Align the plastic teeth and slide it in so the unit locks into the dogging slope.
FM805 12/23
PED Series Exit Devices
Installation Instructions
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
Experience a safer and more open world
4
PED Series Exit Devices
Installation Instructions
Reinstall carrier / push assembly back into the mount. Squeeze the front clip springs and slide the assembly into the mount until it clicks into place.
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
and Egress Hardware Group, Inc. is prohibited.
FM805 12/23
assembly in place.
PED Series Exit Devices
Installation Instructions
6
PED Series Exit Devices
Installation Instructions
7
