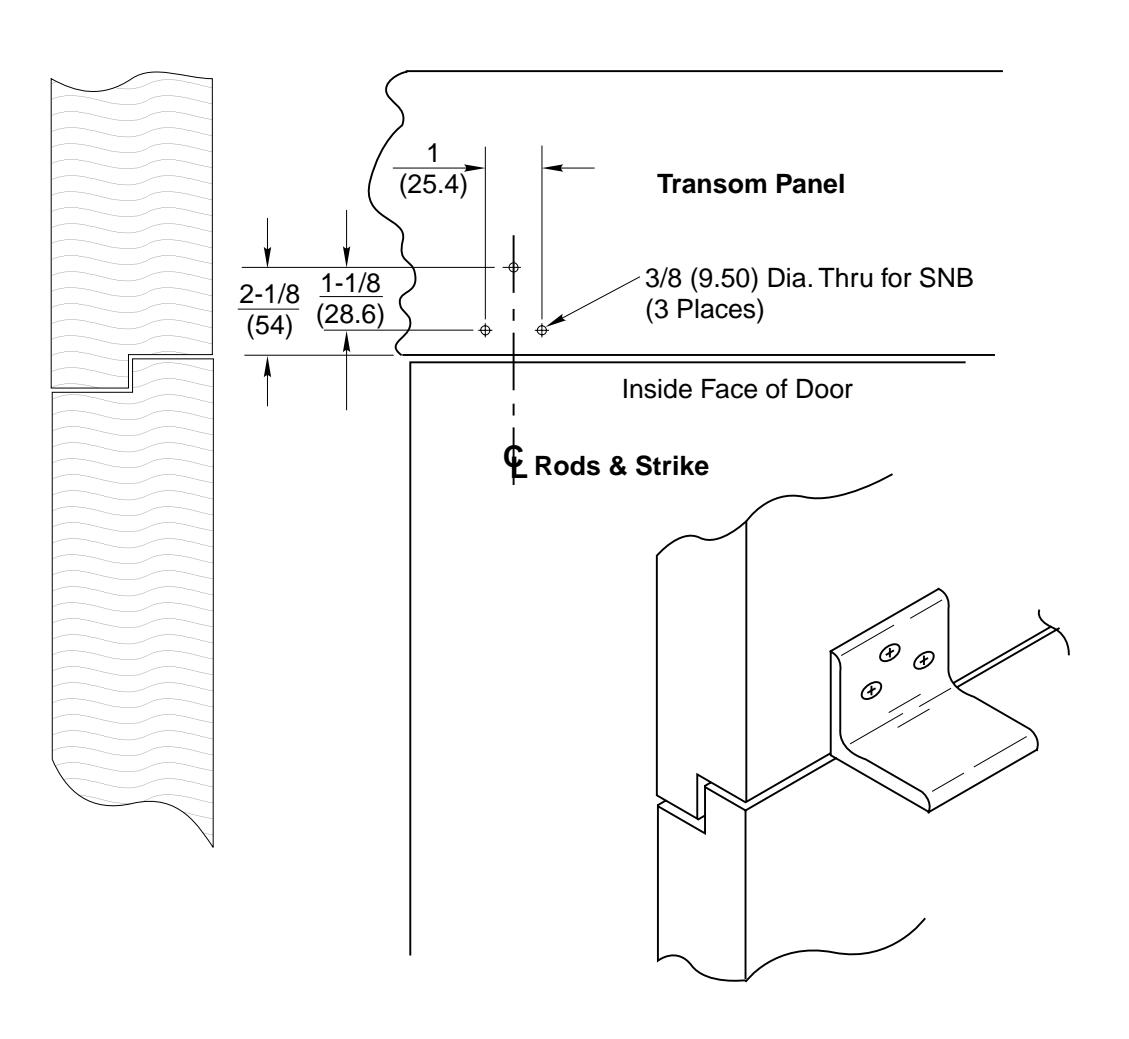

Corbin Russwin M67 (650F87) Auxiliary Bracket for ED5400 Wide Stile SVR Application to Flush Wood Transom Templa…_T30920 imag

Notes:

  • 1. Do not scale drawing. Dimensions shown in inches(mm).
  • 2. LHR Door shown. Preparation is typical or both door hands.
  • 3. Prepare mounting holes when installing the hardware.
  • 4. Provide adequate structural support to maintain transom rigidity and integrity after installation and during door operation.

M67 (650F87) Auxiliary Bracket for ED5400 Series Surface Vertical Rod Exit Devices Application to Flush Wood Transom

Corbin Russwin M67 (650F87) Auxiliary Bracket for ED5400 Wide Stile SVR Application to Flush Wood Transom Templa…_T30920 imag

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30920 9-99
