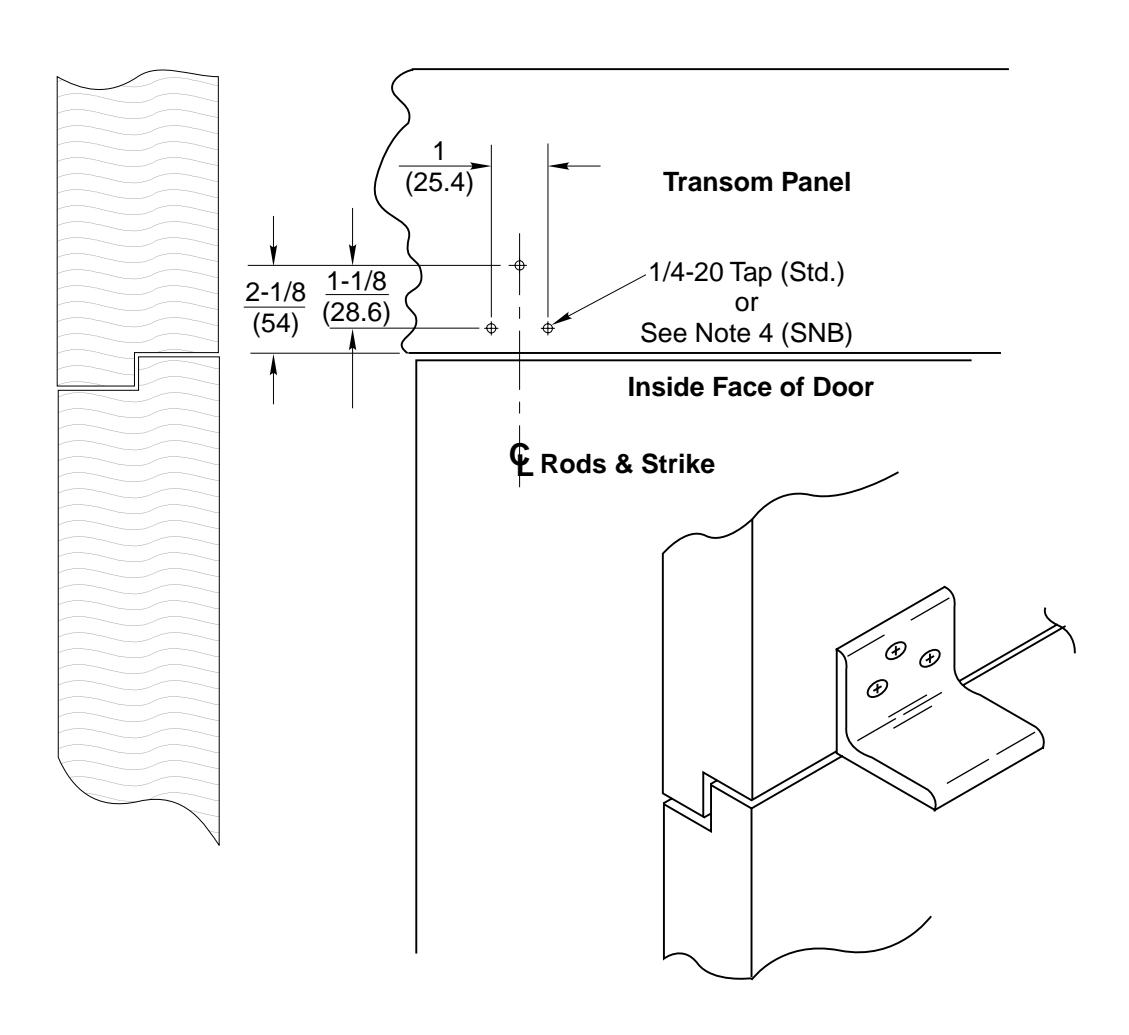

Corbin Russwin M67 (650F87) Auxiliary Bracket for ED5400 Wide Stile SVR Application to Flush Transom Template_T30881 diagram

Notes:

  • 1. Do not scale drawing. Dimensions shown in inches(mm).
  • 2. LHR door shown. Preparation is typical for both door hands.
  • 3. Prepare mounting holes when installing the hardware.
  • 4. Holes for optional SNB: 3/8(9.50) Dia. Thru Transom.
  • 5. Unless transom provides solid engagement for not less than (3) full screw threads, the SNB option is required.
  • 6. Provide stiffeners, as required to prevent transom collapse due to installation with power tools, door use, or abuse.

M67 (650F87) Auxiliary Bracket for ED5400 Series Surface Vertical Rod Exit Devices Application to Flush Transom

Corbin Russwin M67 (650F87) Auxiliary Bracket for ED5400 Wide Stile SVR Application to Flush Transom Template_T30881 image on

T30881

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30881-1 9-99
