Installation Instructions
MP6600 Series
M19S/M19V Occupancy Indicators with Emergency Release
Multi-Point Lock
1 Package Contents

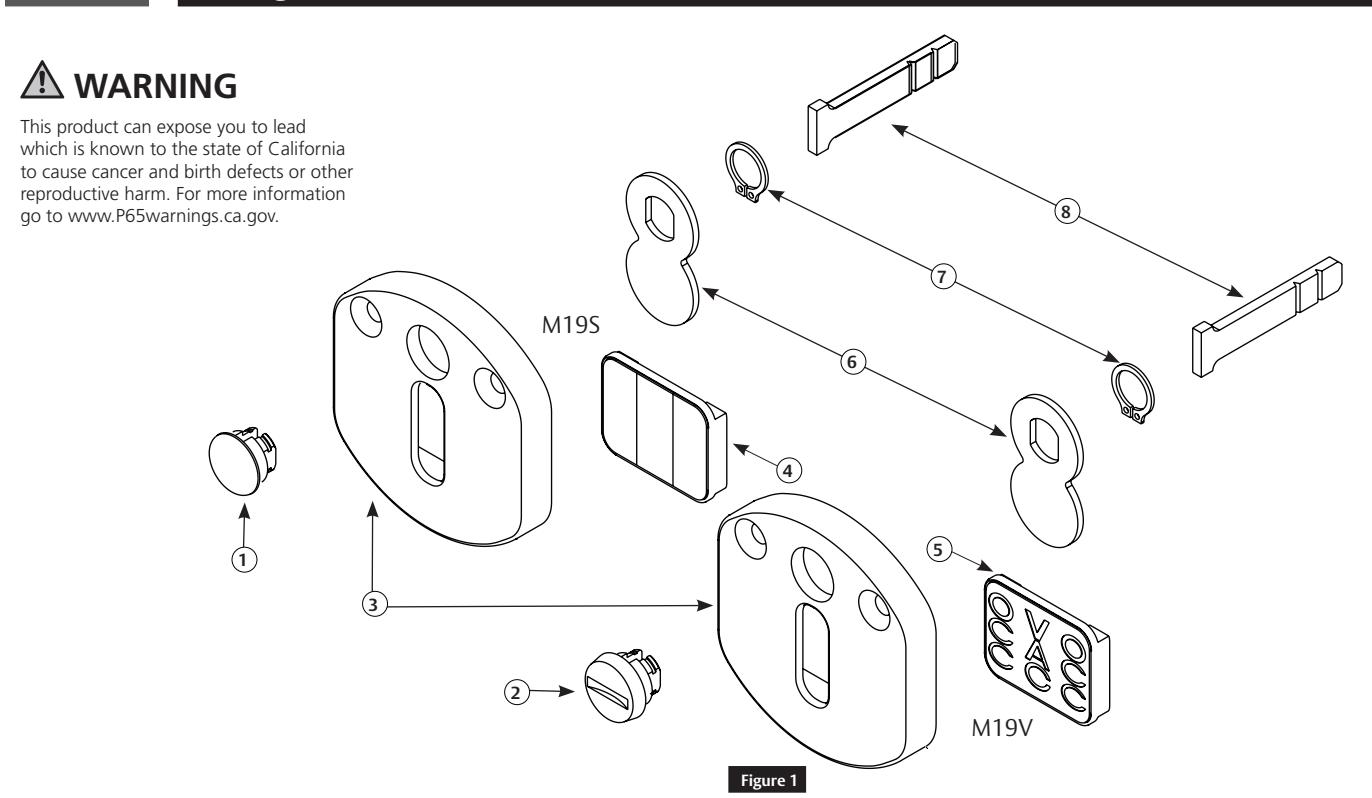

| Figure 1 | Description | Qty. | Figure 1 | Description | Qty. |
|---|---|---|---|---|---|
| 1 | Indicator Button | 1 | 6 | Rotation Plate | 1 |
| 2 | Indicator Button Emergency Release | 1 | 7 | Snap Ring | 1 |
| 3 | Housing Plate | 1 | 8 | Spindle | 1 |
| 4 | Red/White Slide | 1 | 9 | #6 x 5/8" Wood Screw (not shown) | 2 |
| 5 | VAC/OCC Slide | 1 | 10 | #6-32 x 1/2" MS (not shown) | 2 |
| Figure 1 | Description | Qty. | Figure 1 | Description | Qty. |
|---|---|---|---|---|---|
| 1 | Indicator Button | 1 | 6 | Rotation Plate | 1 |
| 2 | Indicator Button Emergency Release | 1 | 7 | Snap Ring | 1 |
| 3 | Housing Plate | 1 | 8 | Spindle | 1 |
| 4 | Red/White Slide | 1 | 9 | #6 x 5/8" Wood Screw (not shown) | 2 |
| 5 | VAC/OCC Slide | 1 | 10 | #6-32 x 1/2" MS (not shown) | 2 |
Installation Instructions

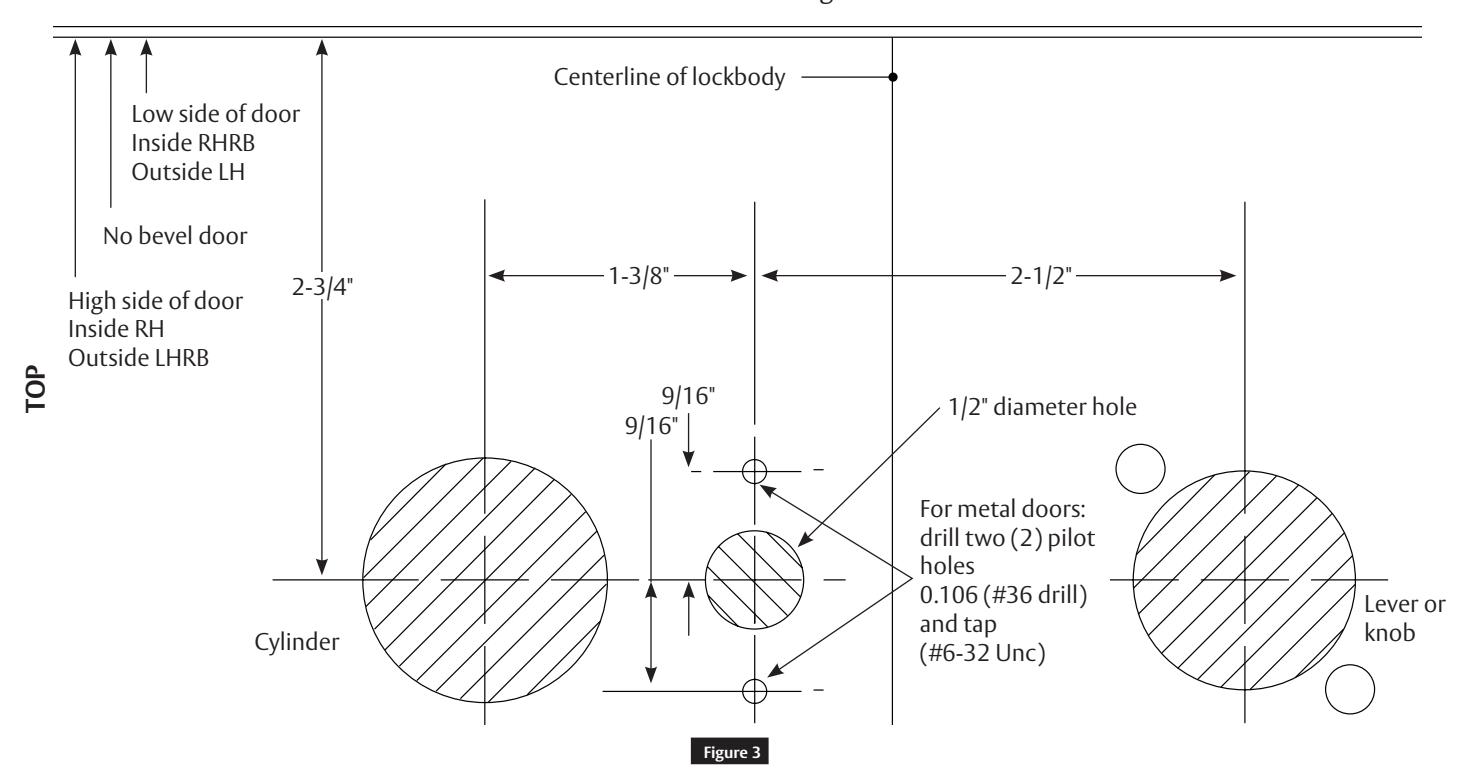

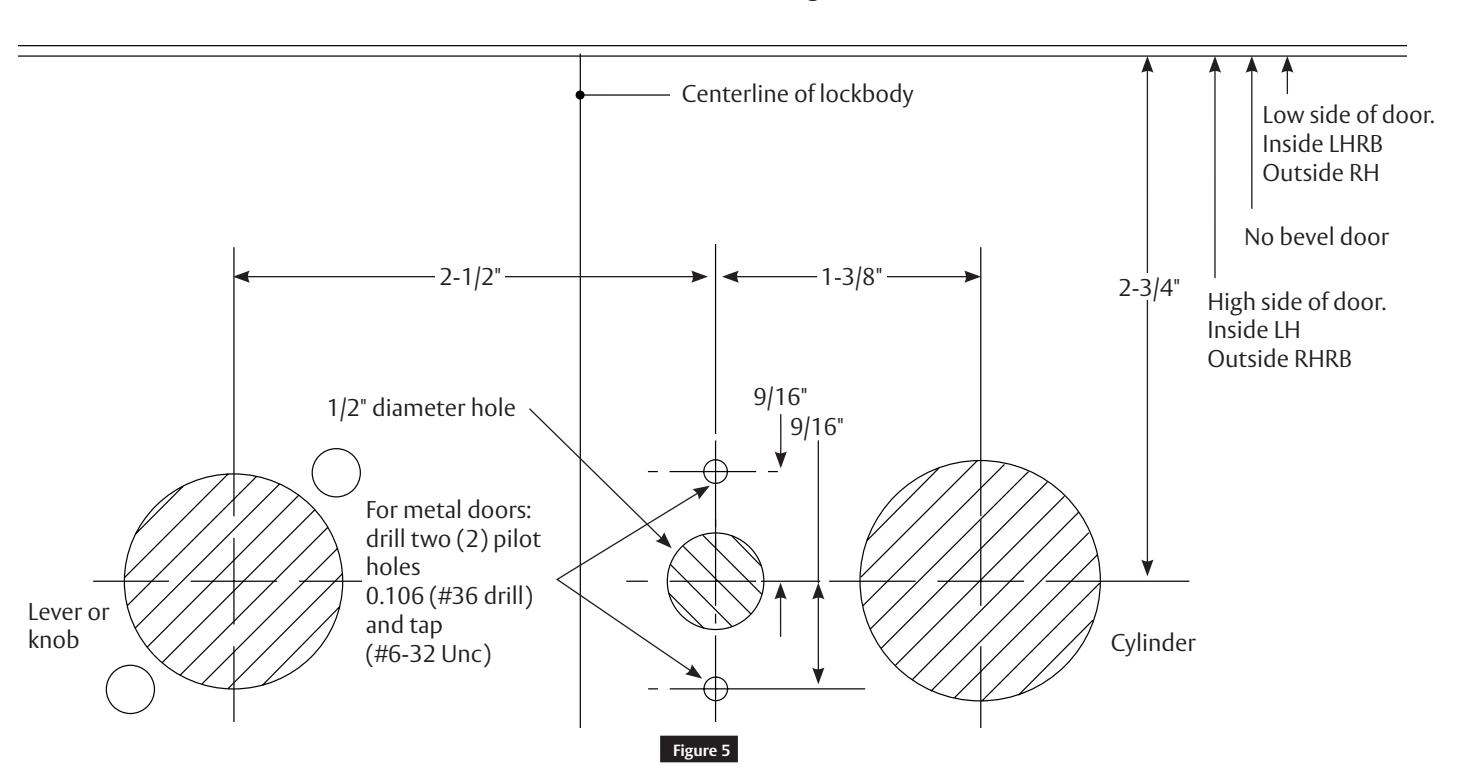

1 M19S/M19V Occupancy Indicator Figure 2 Inside of door Centerline of lockbody 2-1/2" Template layout on door edge. Outside of door
Fold here according to door hand and bevel
Installation Instructions

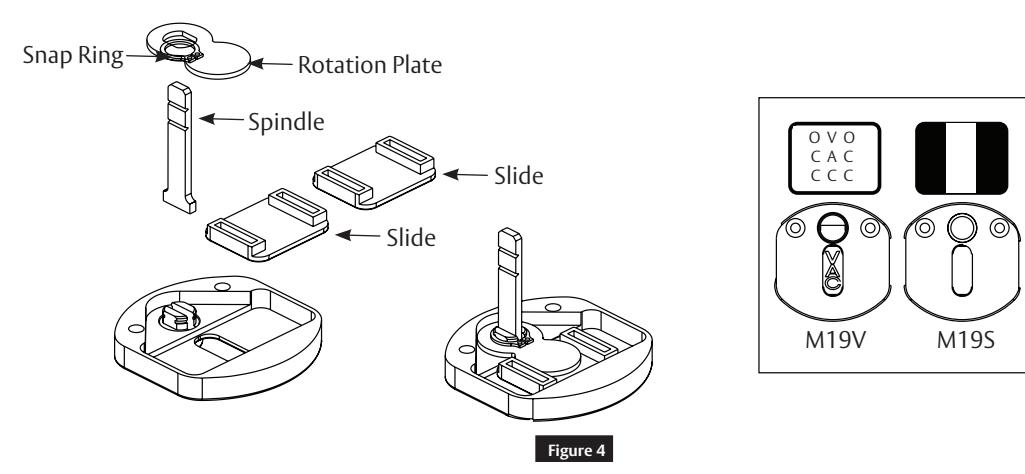

2 Changing Indicator Slides
- 1. Remove snap ring.
- 2. Remove rotation plate, spindle, and slide.
- 3. Replace with alternate slide.
- 4. Reassemble spindle and rotation plate.
Note:
Ensure proper orientation of VAC/OCC Slide.
5. Replace snap ring into groove in button.
