Notes:

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 2. Refer to respective lock series template listed in template cross reference chart for all other dimensions.
  • 3. Dimensions given in inches and (mm).

Template Cross Reference
Description Template
CL3100 SERIES VR LEVER LOCK T31193
CL3300 SERIES CYLINDRICAL LEVER LOCK T30684
CLX3300 SERIES CYLINDRICAL LEVER LOCK T31253
CL33900 ELECTRIC LOCK T30971

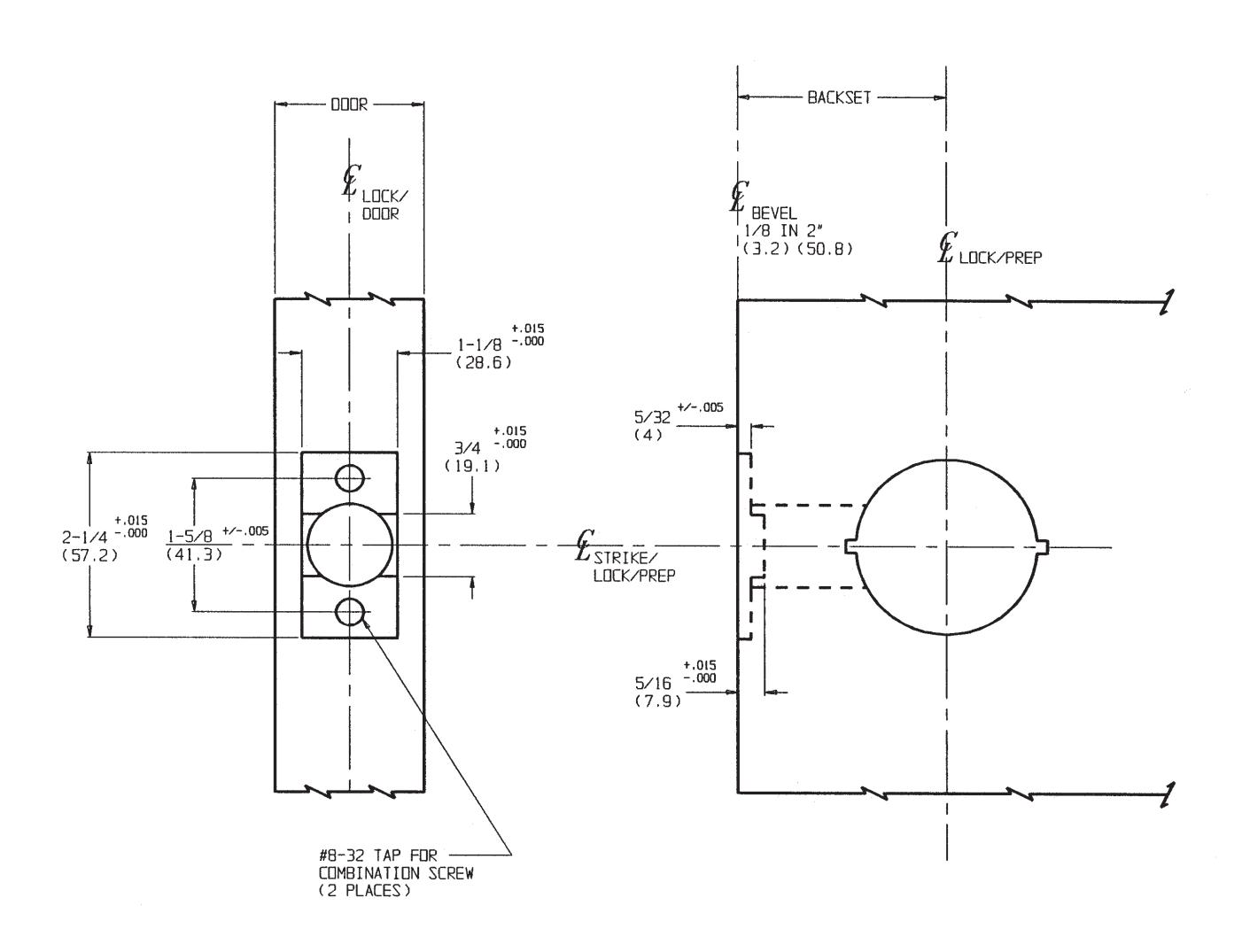

Corbin Russwin M16 3, 4 Latch Assembly for CL3100, CL3300, CL33900, and CLX3300 Series Template_T30528 diagram on page 1

3

Tolerance Conversion
Inches (mm)
.005 (.127)
.015 (.381)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

M16 3/4" Latch Assembly

®

ASSA ABLOY

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE T30528-3 1 of 1 03/21 T30528-2
