Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template. Refer to device template for device mounting dimensions and locations.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.

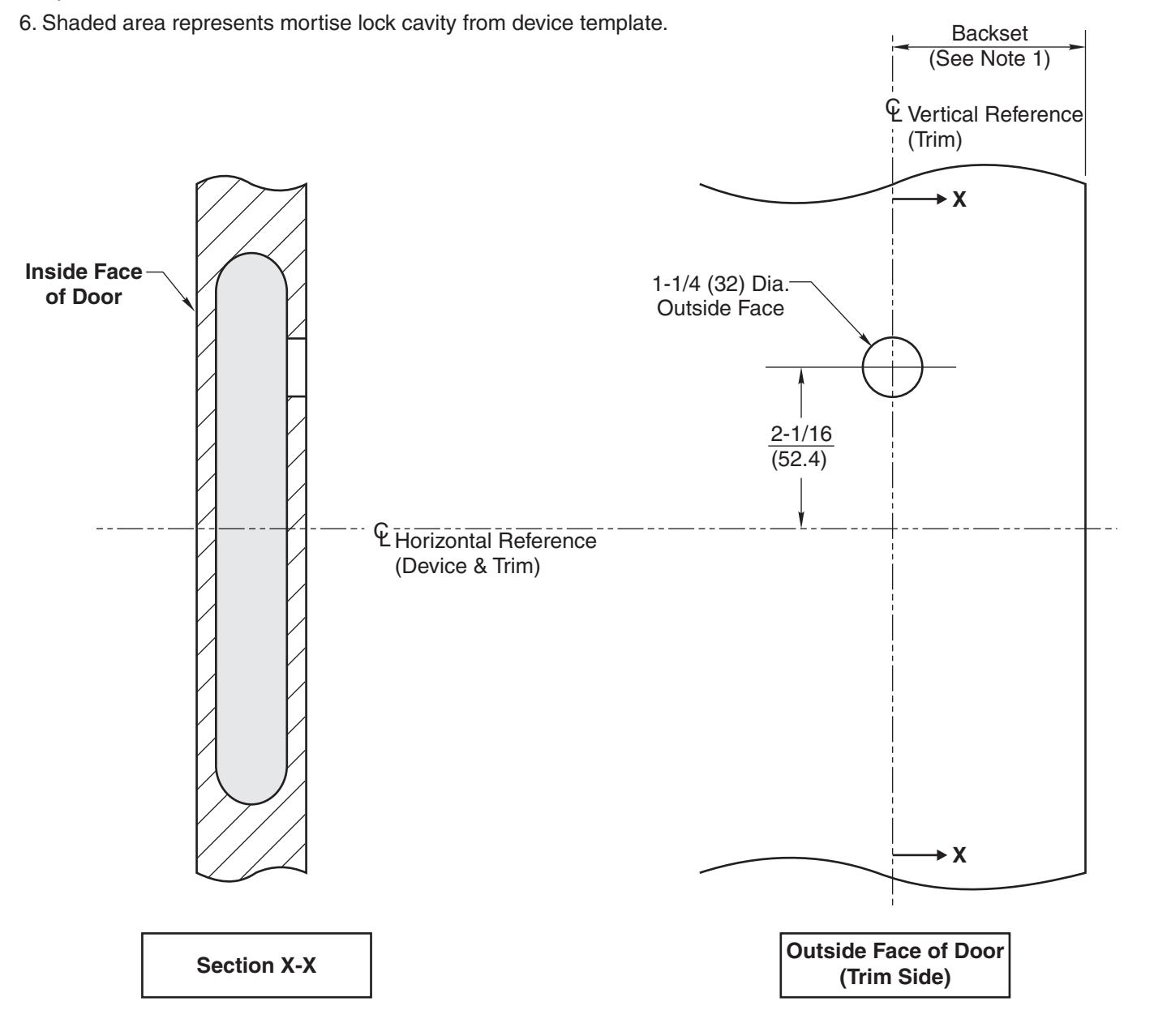

Corbin Russwin K1M57 Key Only Trim for ED5600(A) Wide Stile Mortise Metal, Wood or Composite Doors Template_T31190 diagram on

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

K1M57 Key Only Trim With ED5600(A) Series Exit Mortise Devices Metal, Wood or Composite Doors

Corbin Russwin K1M57 Key Only Trim for ED5600(A) Wide Stile Mortise Metal, Wood or Composite Doors Template_T31190 diagram on

T31190 0 -11 4 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER
