← Corbin

NOTES

  • BACKSET IS MEASURED FROM CENTERLINE OF BEVEL WHICH IS CENTERPOINT OF DOOR THICKNESS. REFER TO APPROPRIATE DEVICE TEMPLATE FOR BACKSET DIMENSION.
  • 2. DIMENSIONS GIVEN IN INCHES AND (MM).
  • 3. SUITABLE REINFORCEMENTS/BLOCKING ARE REQUIRED TO SUPPORT EXIT DÉVICE AND CYLINDER TRIM FOR WOOD AND COMPOSITE DOOR APPLICATIONS. INSIDE OF METAL DOOR FACE MUST BE REINFORCED WHEN DOOR SKIN THICKNESS IS LESS THAN .090 (2.3).
  • 4. PREP SHOWN APPLIES TO CORBIN RUSSWIN K157 RIM CYLINDER TRIM ONLY. FOR RIM CYLINDERS BY OTHER MANUFACTURERS, USE SCREWS AND TEMPLATING BY OTHER MANUFACTURERS.

CAUTION: CYLINDER MOUNTING SCREWS SHOULD FIT WITHOUT PROJECTING FROM INSIDE DOOR FACE. CHECK PREP FEASIBILITY BEFORE DRILLING DOOR.

LHR SHOWN RHR OPPOSITE

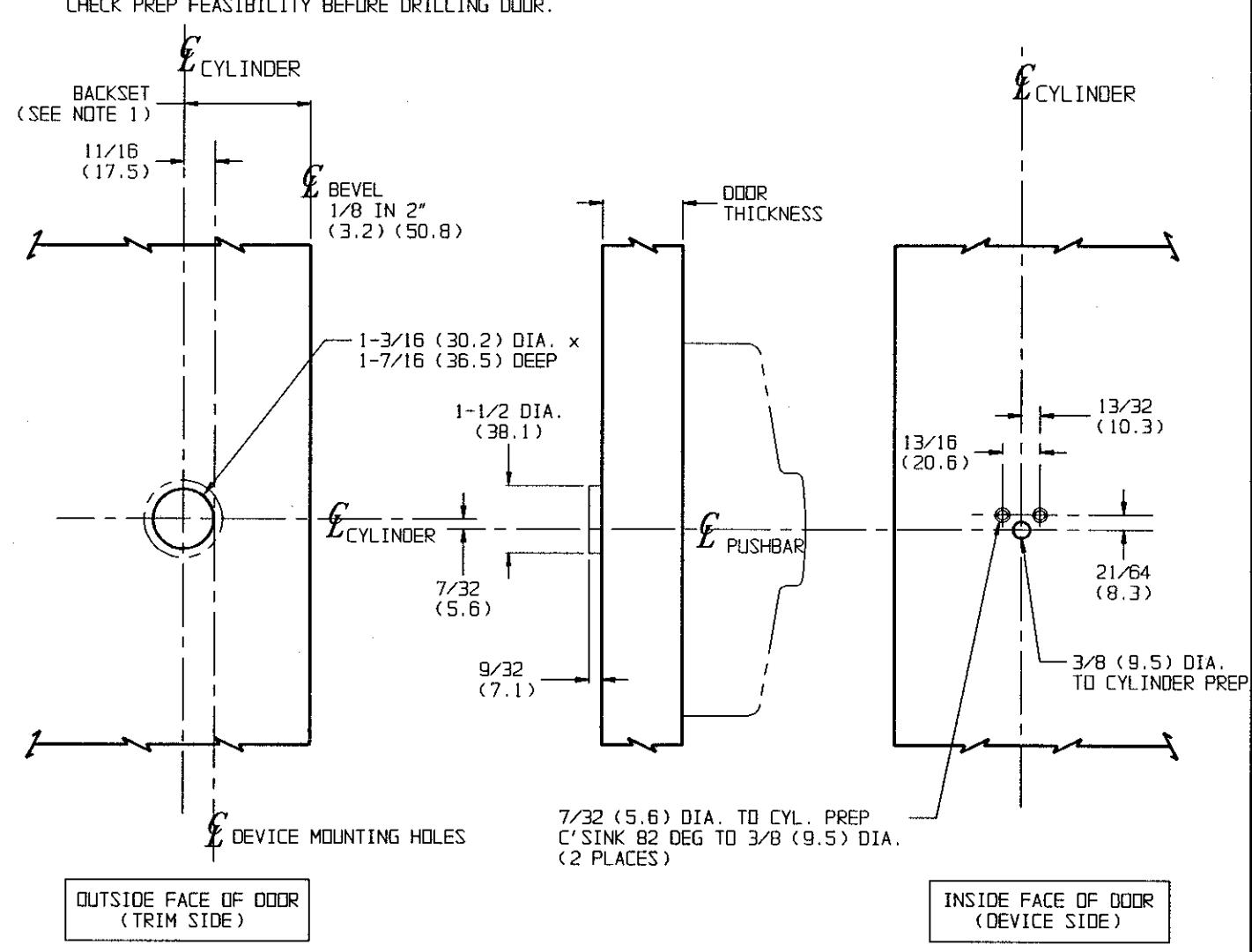

Corbin Russwin K157 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal, Wood, or Composite Door Temp…_T30886 diag

K157 Trim With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices Metal, Wood or Composite Door Preparation

Corbin 7

T30886

Do Not Scale Drawing

Template Number T30886-1

ຶ 9/99
