Notes:

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness. Refer to appropriate device template for backset dimension.
  • 2. Dimensions given in inches and (mm).
  • 3. Suitable reinforcements/blocking are required to support exit device and cylinder trim for wood and composite door applications. Inside of metal door face must be reinforced when door skin thickness is less than .090 (2.3).
  • 4. Prep shown applies to Corbin Russwin K157 rim cylinder trim only. For rim cylinders by other manufacturers, use screws and templating by other manufacturers.

CAUTION: Cylinder mounting screws should fit without interfering with 5/8 (15.9) dia. hole or projecting from inside door face. Check prep feasibility before drilling door.

TEMPLATE CROSS REFERENCE
Device Description Template
Rim ED4200 Series T30874
SVR ED4400 Series T30875
ED4400 Series x S09 x T'hold T30876
ED4400 Series x S09 T30877
CVR ED4800 Series T30878 1
ED4800 Series x S09 x T'hold T30879
ED4800 Series x S09 T30880

1

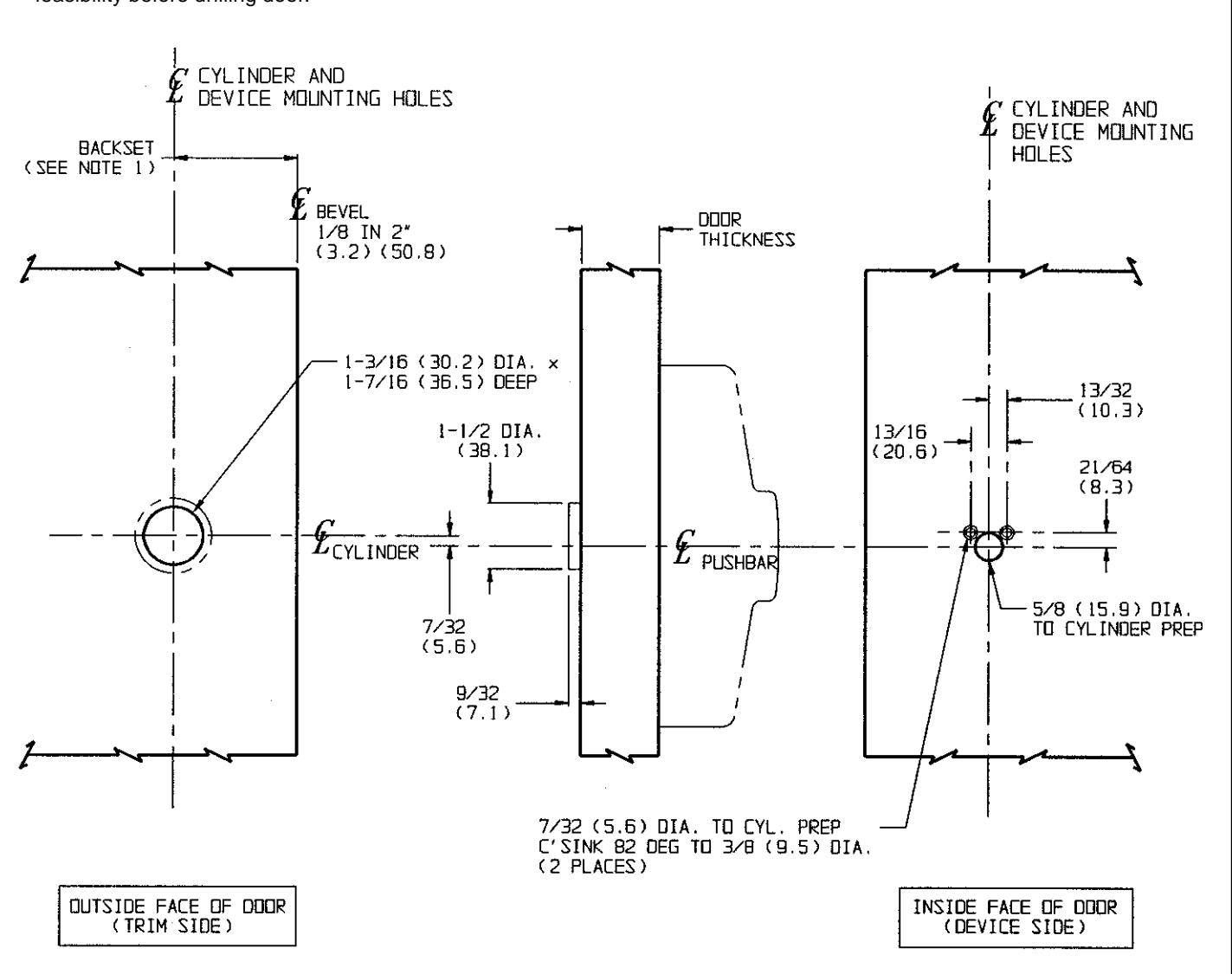

Corbin Russwin K157 Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Template_T30887 diagram on page 1

K157 Rim Cylinder Exit Trim (ED4000 Series Narrow Stile)

Corbin Russwin K157 Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Template_T30887 image on page 1

www.corbinrusswin.com

T30887 DO NOT SCALE DRAWING SUPERSEDES

T30887-1 TEMPLATE NUMBER DATE

8-02
