Notes:

  • Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • (*) When preparing doors for lead wrapped locks, add 1/8 (3.2) to dimensions marked (*) to allow proper clearance.
  • 1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
  • Dimensions given in inches and (mm).
  • For open back strike, refer to template T30606.

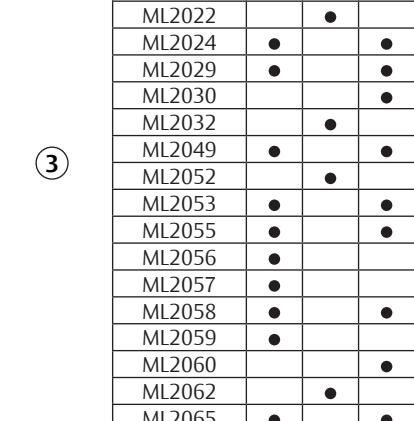

Corbin Russwin Inspire Roseless M30 Half Trim for ML2000 Series Mortise Locks Template_T31184 diagram on page 1

Series

Function

ML2010

ML2020

Required Holes

В

.

Corbin Russwin Inspire Roseless M30 Half Trim for ML2000 Series Mortise Locks Template_T31184 diagram on page 1

lemplate Cross Reference
Full Trim ML T31183
Full Dummy Trim T31186
Half Dummy Trim T31187

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ML2000 Series by M30 Inspire<sup>™</sup> Roseless Half Trim

.005

.010

.015

(.127)

(.254)

(.381)

ASSA ABLOY SUPERSEDES T31184-3 DO NOT SCALE DRAWING TEMPLATE NUMBER 08/22
