MORTISE LOCK INSTALLATION INSTRUCTIONS

INSPIRETM ROSELESS DESIGNER TRIM

FM 340 Rev. 10/18

INSPIRE TM Mortise Trim Instructions FM 340 Rev. 10/18

TABLE OF CONTENTS:

DOOR PREPARATION	1
ML2000 LOCK HANDING	2
FULL WORKING TRIM (STD)	3
HALF WORKING TRIM (M30)	6
FULL DUMMY TRIM (ML2070)	8
HALF DUMMY TRIM (ML2050)	9
CYLINDER / TURN-PIECE	10

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

08/2018

LOCK HANDING IS CRITICAL TO ENSURE LOCK FUNCTIONS PROPERLY

INSPIRETM Mortise Trim Instructions FM 340 Rev. 10/18

DOOR PREPARATION:

	TEMPLATE
FULL WORKING TRIM:	T31183
HALF WORKING TRIM:	T31184
FULL DUMMY TRIM:	T31186
HALF DUMMY TRIM:	T31187

ALL TEMPLATES CAN BE FOUND AT WWW.CORBINRUSSWIN.COM/Library/Templates

INSPIRETM Mortise Trim Instructions FM 340 Rev. 10/18

Mortise Lock Handing Instructions

FULL TRIM (STD) INSTALLATION

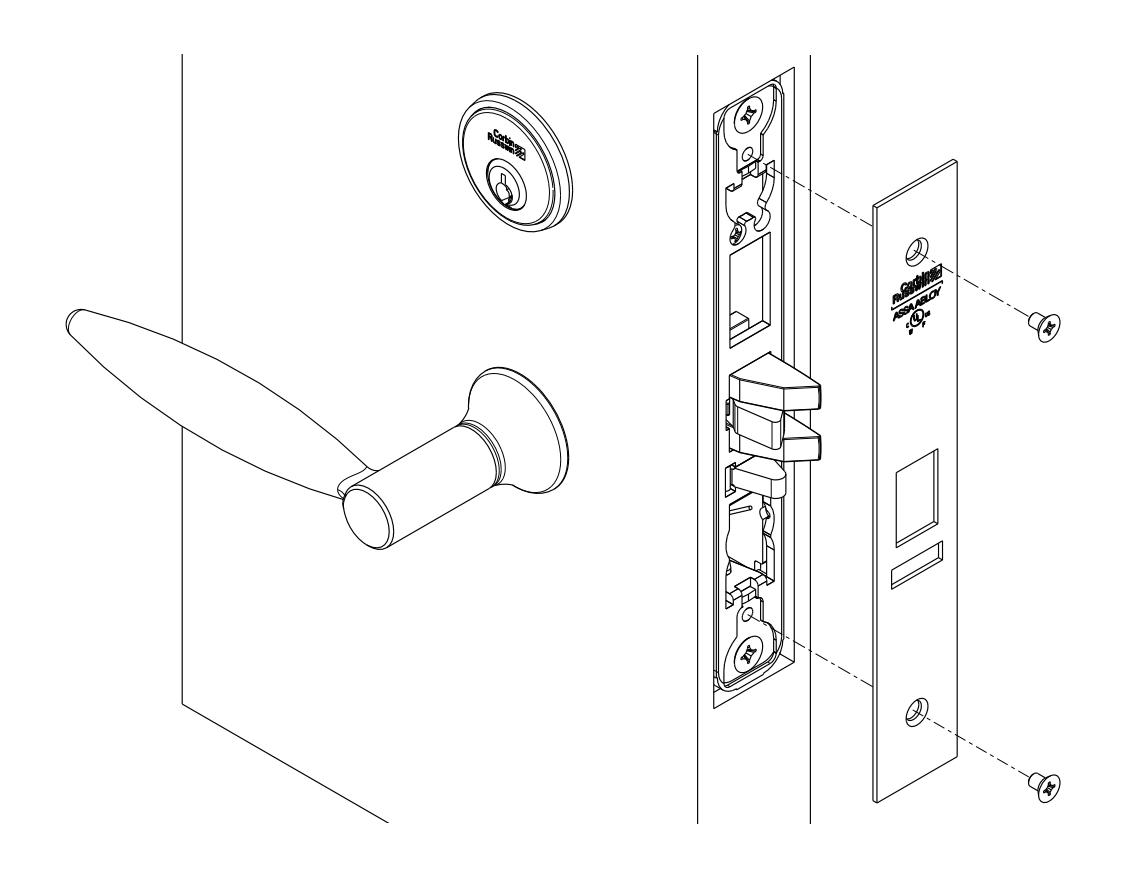

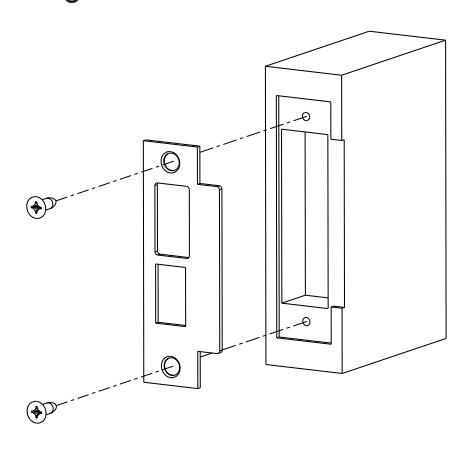

Step 1) Install strike with shorter 3/4" mounting screws

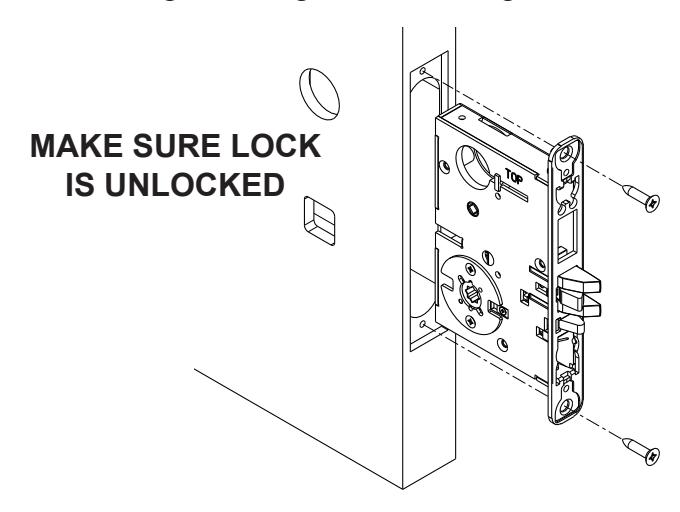

Step 2) Insert mortise lock into door and hand tighten longer 1" mounting screws

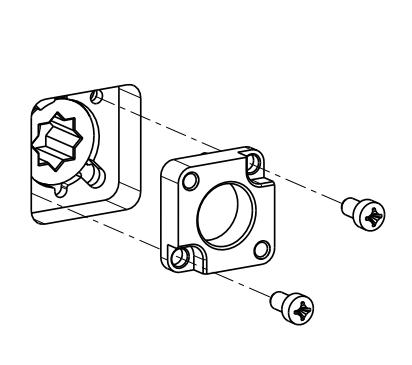

Step 3) Install spacer blocks on both sides of lock-body with 1/4" Fillister Head Screws

Note: Align tabs on spacer with cutouts on lock-body

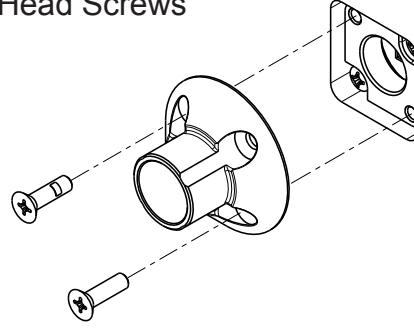

Step 4) Install adapter plates on both sides of door using 1/2" Flat Head Screws

INSPIRETM Mortise Trim Instructions FM 340 Rev. 10/18

Keypad ribbon cable

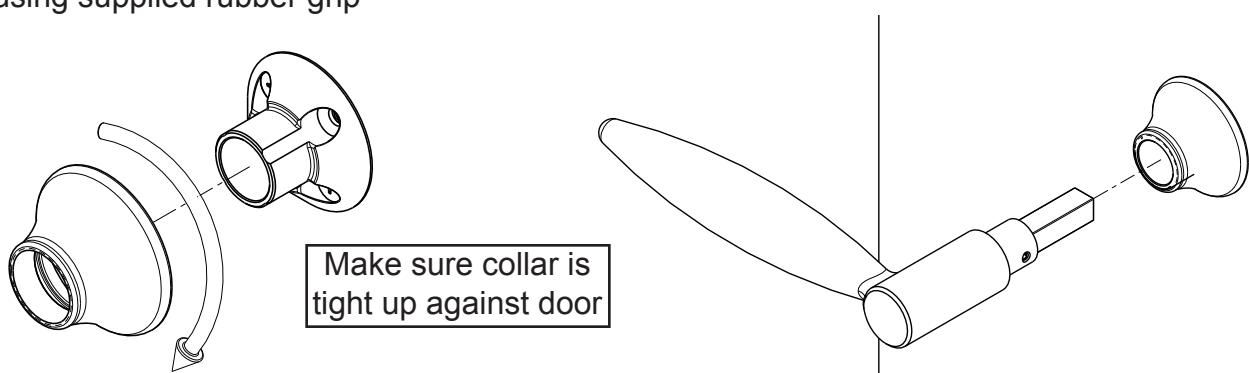

Step 5) Thread collar onto both sides of door using supplied rubber grip

Step 6) Install O/S Lever

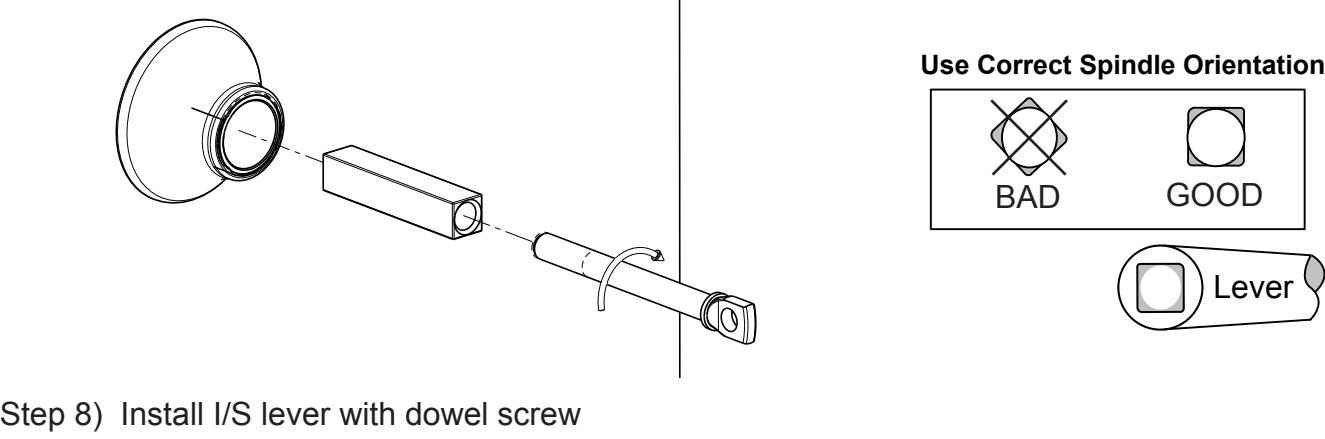

Step 7) Install I/S spindle and adjustment bolt

Step 9) Rotate both levers individually and make sure both levers return. If either lever binds, remove I/S lever and un-thread adjustment bolt 1/2 turn.

INSPIRETM Mortise Trim Instructions FM 340 Rev. 10/18

Step 10) If the lock function calls for a cylinder or turn-piece proceed to cylinder and turn-piece instructions on page 10. Otherwise proceed to next step

Step 11) Install scalp using 3/16" Flat Head Screws

HALF TRIM (M30) INSTALLATION

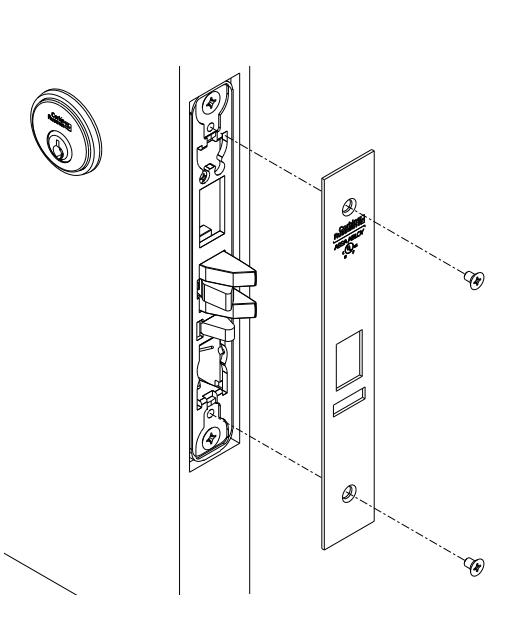

Step 1) Install strike with shorter (3/4") mounting screws

tighten longer (1") mounting screws

Step 2) Insert mortise lock into door and hand

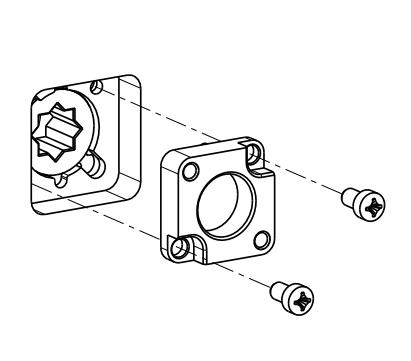

Step 3) Install spacer block on trim side of

lock-body with 1/4" Fillister Head Screws

Align tabs on spacer with cutouts on lock-body

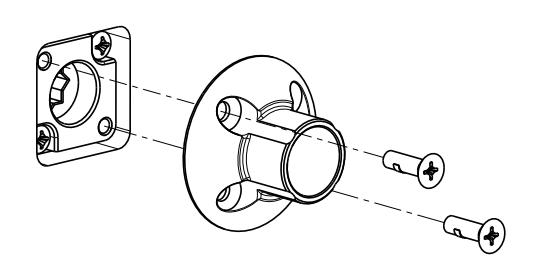

Step 4) Install adapter plate on trim side of door using 1/2" Flat Head Screws

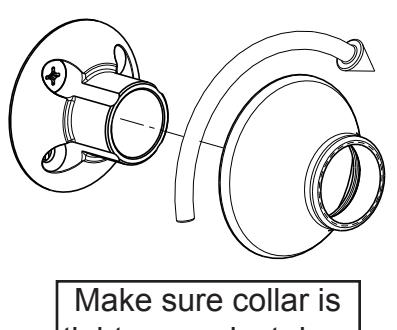

Step 5) Thread collar on trim side of door using supplied rubber grip

tight up against door

INSPIRETM Mortise Trim Instructions FM 340 Rev. 10/18

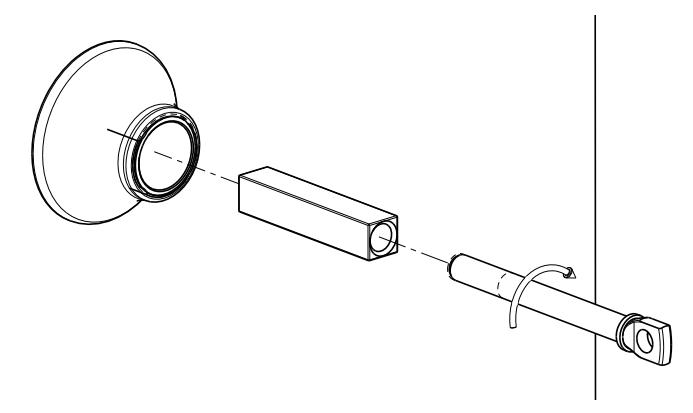

Step 6) Install I/S spindle and adjustment bolt

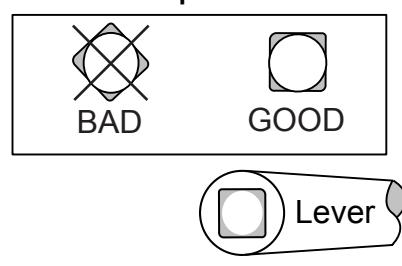

Use Correct Spindle Orientation

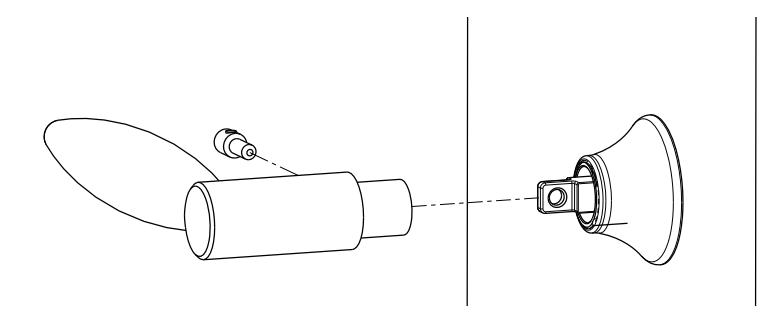

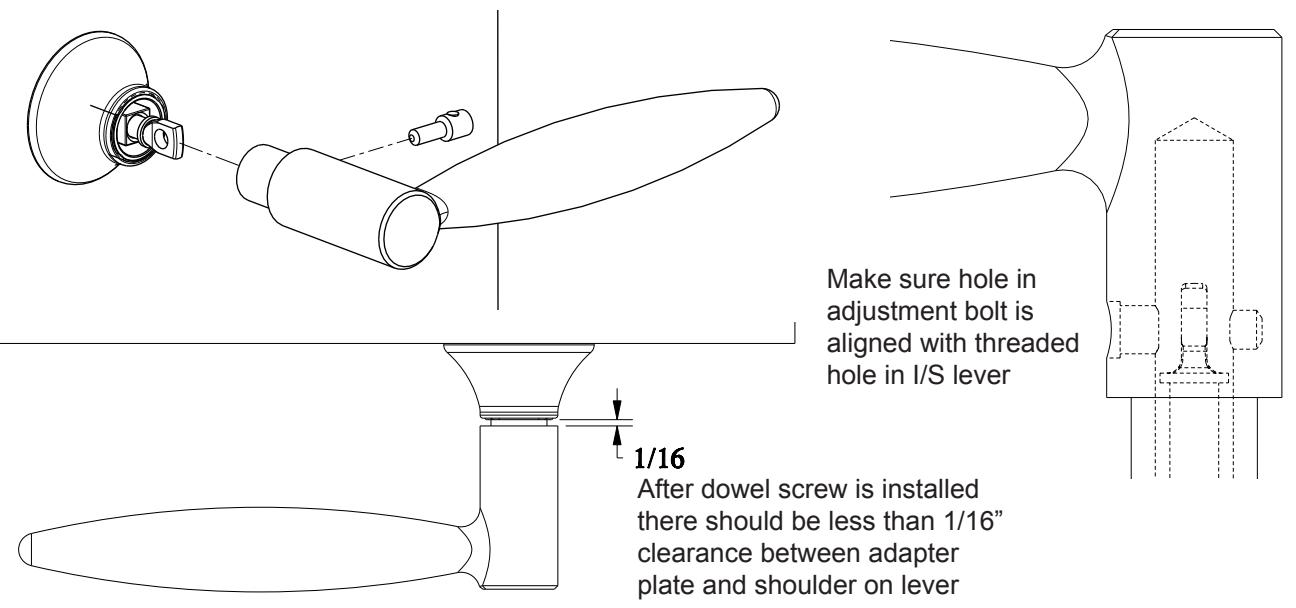

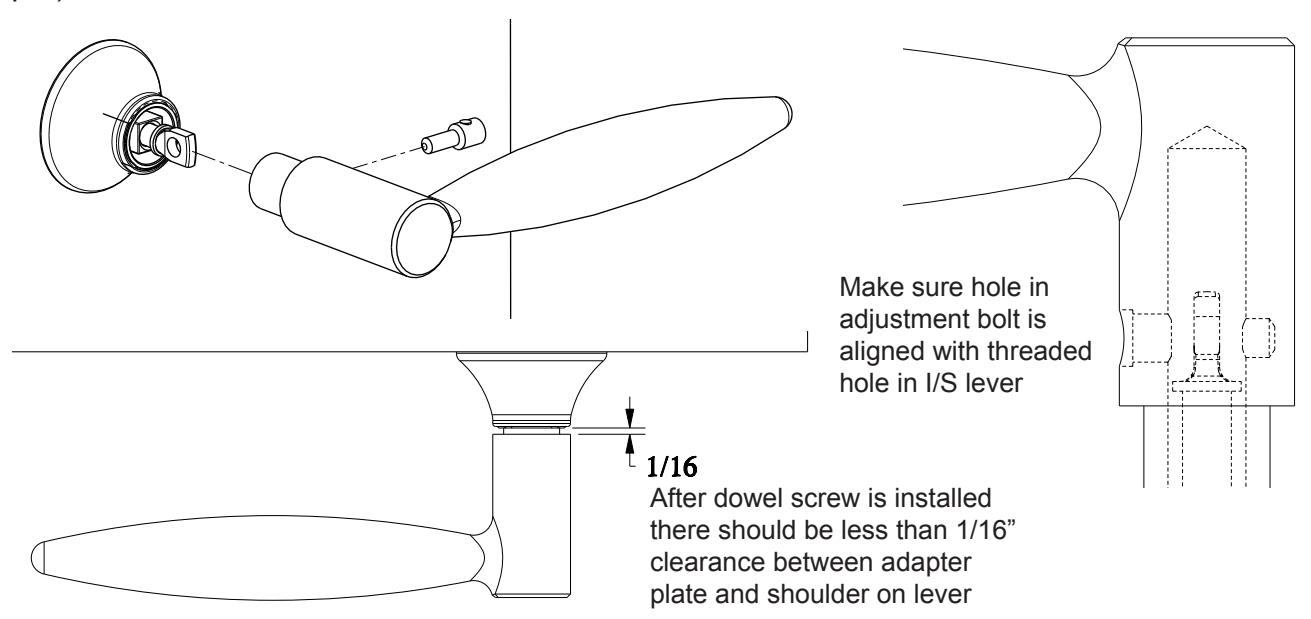

Step 7) Install I/S lever with dowel screw

Step 8) Rotate both levers individually and make sure both levers return. If either lever binds, remove I/S lever and un-thread adjustment bolt 1/2 turn.

Step 10) If the lock function calls for a cylinder or turn-piece proceed to cylinder and turn-piece instructions on page 10. Otherwise proceed to next step

Step 11) Install scalp using 3/16" Flat Head Screws

INSPIRETM Mortise Trim Instructions FM 340 Rev. 10/18

FULL DUMMY TRIM (ML2070) INSTALLATION

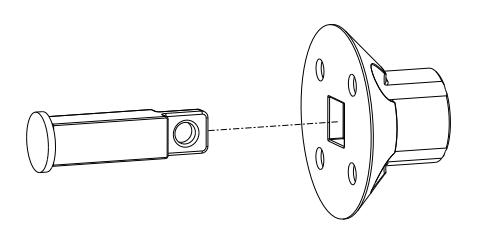

Step 1) Insert dummy spindle into both adapter plates

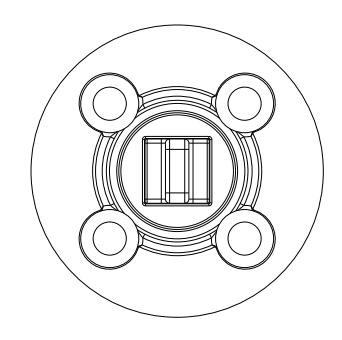

Make sure dummy spindle is aligned as shown

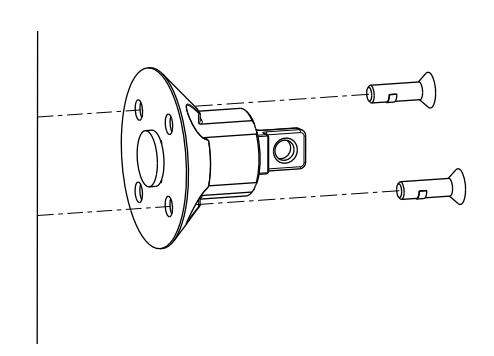

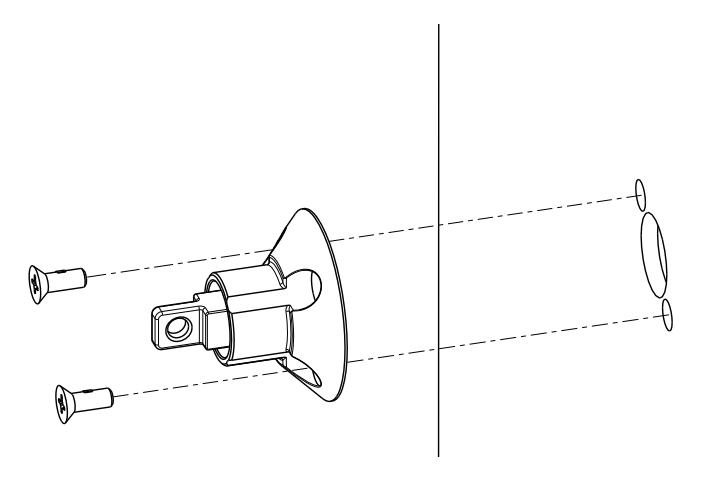

Step 2) Install adapter plate assemblies

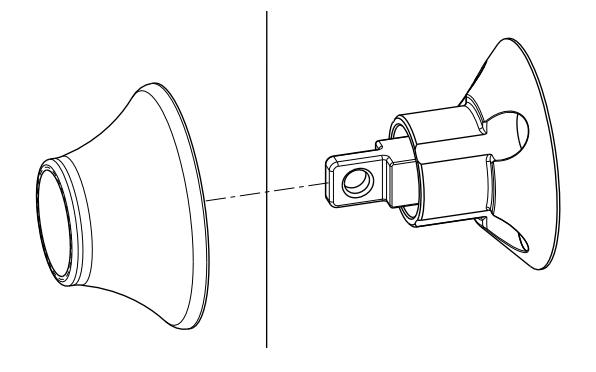

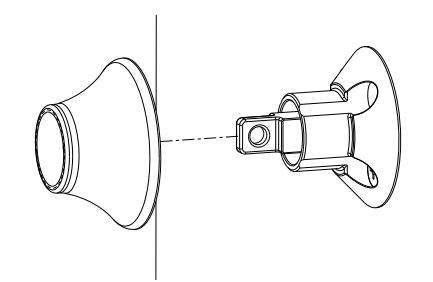

Step 3) Thread collar on both sides of door

Make sure collar is tight up against door

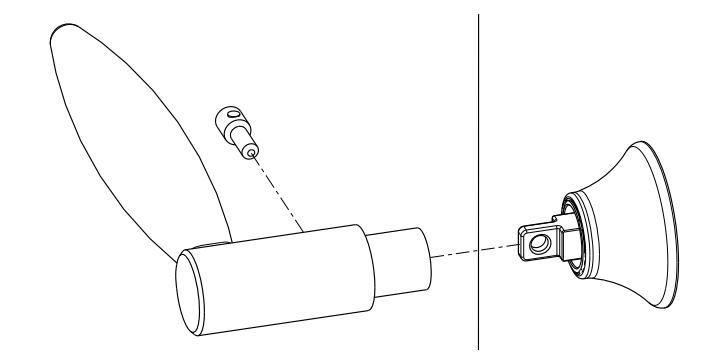

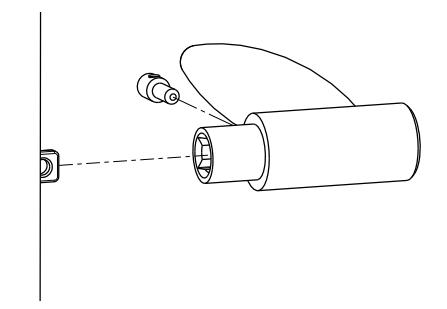

Step 4) Install lever on both sides of door with dowel screws

HALF DUMMY TRIM (ML2050) INSTALLATION

Step 1) Insert dummy spindle into adapter plate

Make sure dummy spindle is aligned as shown

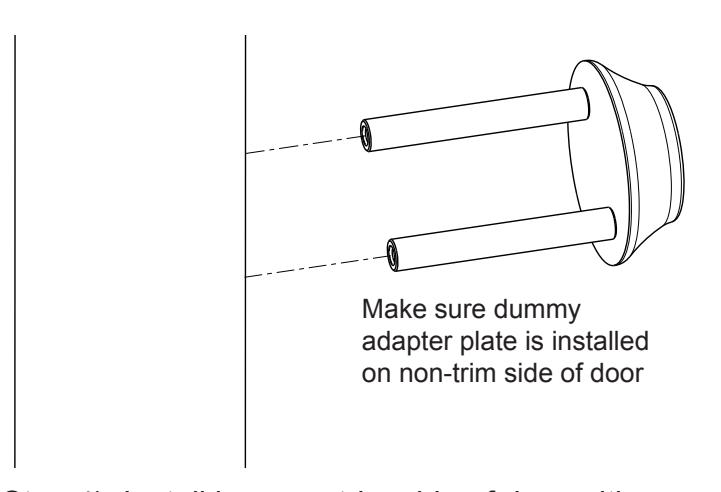

Step 2) Install adapter plate assemblies

Step 3) Thread collar on trim side of door Step 4) Install lever on trim side of door with dowel screw

Make sure collar is tight up against door

INSPIRE TM Mortise Trim Instructions FM 340 Rev. 10/18

CYLINDER AND TURN-PIECE INSTALL

Cylinder Install:

- Push cylinder collar over cylinder then thread cylinder into lock-body

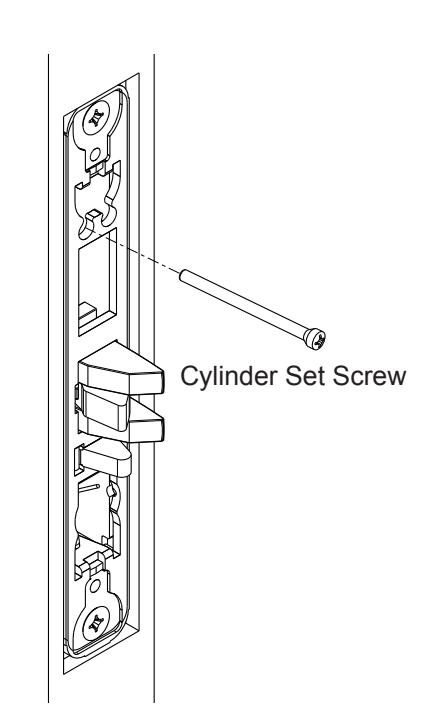

- Secure cylinder with set screw

NOTE: Key and cylinder must be rotated as shown

- If cylinder will not thread into lock loosen lock mounting screws

Turn-Piece Install:

• Mark turn-piece mounting holes then drill two .110" holes where marked
• Make sure turn-piece is vertical when lock is unlocked
