Sleek Design

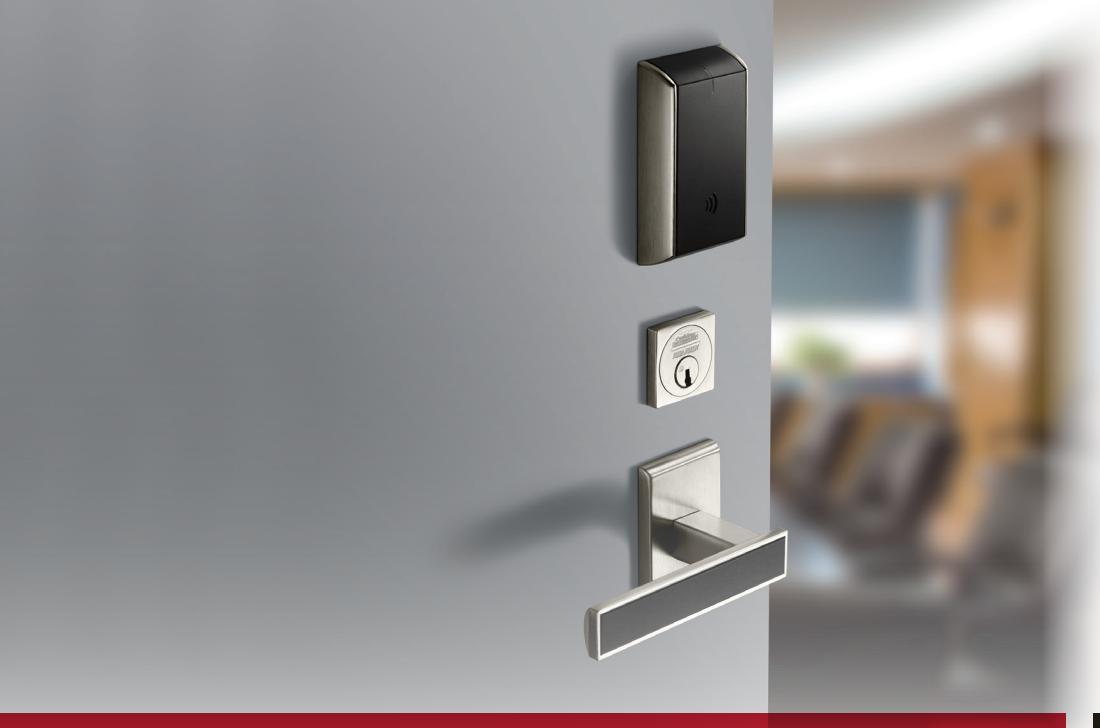

IN120 Intelligent WiFi Access Control

The Corbin Russwin IN120 pairs a sleek, attractive design with the latest in access control technology to address the evolving needs of today's facilities.

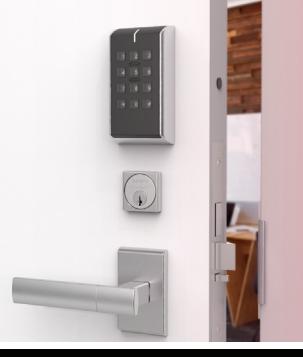

Featuring multiCLASS SE® technology and an optional keypad, it supports multiple credential types, including mobile devices, for a future-proof solution that is convenient and secure.

IN120 Intelligent WiFi Access Control

Features Benefits

Specifications and System Requirements Credential Support:

• › 2.4 GHz credentials:
• Secure Identity Object™ (SIO) on Mobile IDs (Bluetooth Smart)
• › 13.56 MHz credentials:
• iCLASS®
• iCLASS SE® (SIO-enabled)
• iCLASS® Seos®
• SIO on MIFARE® Classic
• SIO on MIFARE DESfire® EV1
• MIFARE Classic
• DESfire EV1
• NFC-enabled mobile phones
• › PIV/PIV-I credentials*:
  • 64-bit BCD Output
• 128-bit BCD Output
• 200-bit Output
• › 125 kHz credentials:
• HID Prox®

Operating Power:

• › 6 AA batteries or
• › 12-24VDC hard power option

Security:

• › AES 128-bit encryption
• › Supports current WiFi network security standards, including:
• WEP, WPA and WPA2
• 802.1x (e.g. EAP, PEAP, PAP)

Software Options:

• › ASSA ABLOY IP-Enabled Access Control Partner software
• › SDK and support available to integrate into other third party access control systems (contact: OEMSupport_Group@assaabloy.com)

EAC Regulatory Compliance**:

• › UL294 6th Edition
• › CAN/ULC S319
• › BHMA A156.25
• **Excludes multi-point locks

Utilizes IEEE 802.11 WiFi infrastructure • Significantly reduces installation costs • Eliminates the need for any proprietary equipment • Ideal for hard-to-wire locations multiCLASS SE® Technology from HID Global® • Provides heightened security • Supports: – Multiple credential technologies, offering easy migration to higher security credentials or consolidation of mixed credentials – Optional keypad for dual authentication requirements or one-time PIN usage – HID Mobile Access® powered by Seos®, for both iOS® and Android™ devices – PIV/PIV-I variants support HID PROX, iCLASS and iCLASS SE Field-upgradable 802.11b/g/n radio • Interoperability with other WiFi equipment • Future proof for constantly evolving WiFi standards Customizable feature set • Select only the features you need • Add features as your requirements grow Intelligence built into lock for local decision making • Lock operates regardless of network status • Supports up to 2,400/10,000 users* • Provides a 10,000 event transaction history/audit trail Privacy button • Enables shelter in place / local lockdown • Offers privacy capabilities for applications such as restrooms Field selectable communication frequency • Allows you to balance security requirements with battery life

Integrated ANSI/BHMA Grade 1 hardware, available in cylindrical lock, mortise lock, multi- point lock, and exit device

Available with a wide range of finishes

Typical System Configuration

architects

configurations

and decorative levers

• Flexibility to support various openings • Assurance of high quality hardware

• Blends into any environment seamlessly

• Designed to meet the requirements of designers and

Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 www.corbinrusswin.com

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive, Vaughan, Ontario, Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

Copyright © 2015-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

^* Contact your access control system manufacturer for more information
