Installation Instructions

Mortise Multi-Function M30 Half Trim Kit

Tools Required Handing Chart

• 3/8" socket
• #2 Phillips screwdriver

(Side of lock plate should be installed based on door hand):

RH/RHR = Case Side

LH/LHR = Cap Side

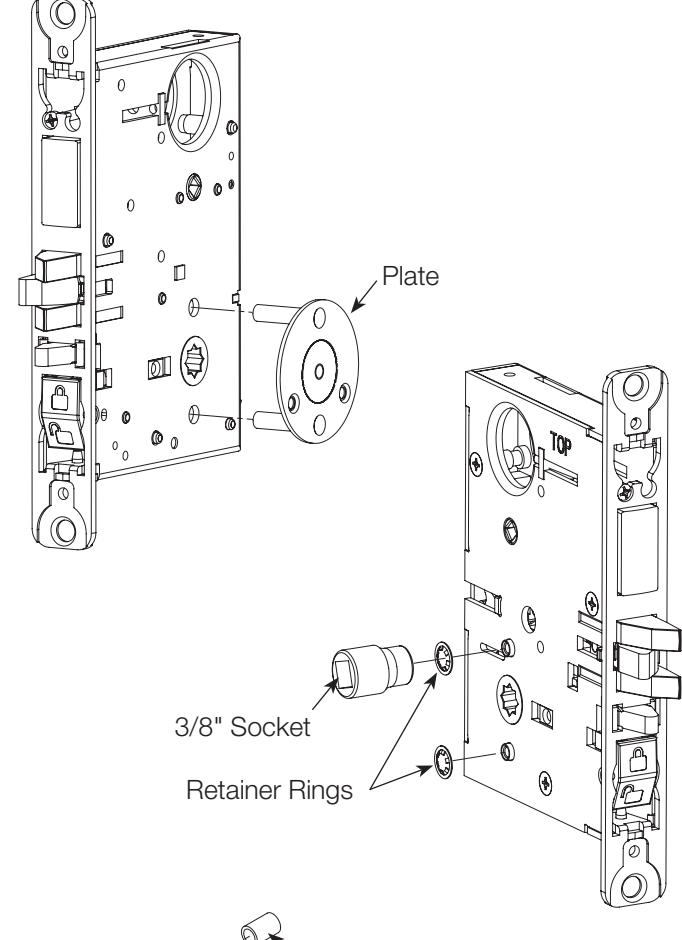

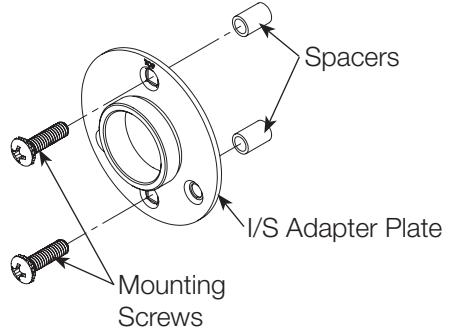

1. Install plate on outside of lockbody. (Use chart to determine case/cap side of lock.)

2. Install two (2) retainer rings using 3/8" socket.
