Notes:

• 1. Do not scale drawing. Dimensions shown in inches(mm).

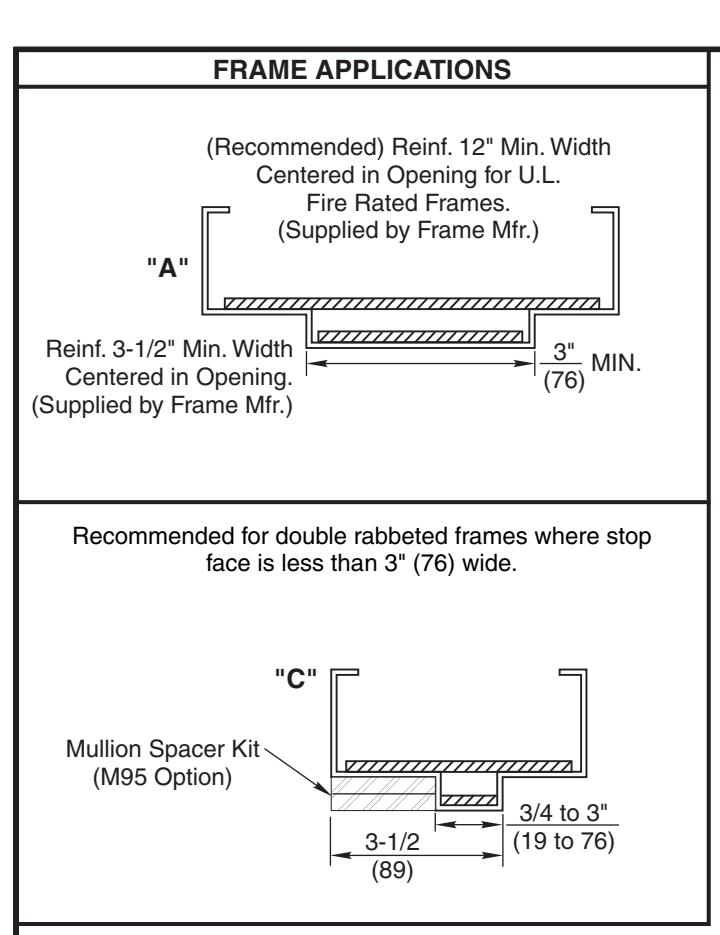

• 2. Prepare mounting holes when installing the mullion. Use this template for structural frame preparation.
• 3. Metal frames should provide mounts to maintain not less than (3) full screw threads engaged.
• 4. FE700A Series and WS700AKM Series mullions are made from 2" x 3" (51 x 76) tubular steel. Locate device from mullion face (strike seat).
• 5. Two flat head 1/4-20 x 1-1/4 machine screws are included with Mullion Spacer Kit (M95 Option) when so ordered.

FE707A & FE708A Mullions WS707AKM & WS708AKM Mullions Frame Preparation
