FE6800 Series
Multi-Point Locks Parts Manual
Experience a safer and more open world

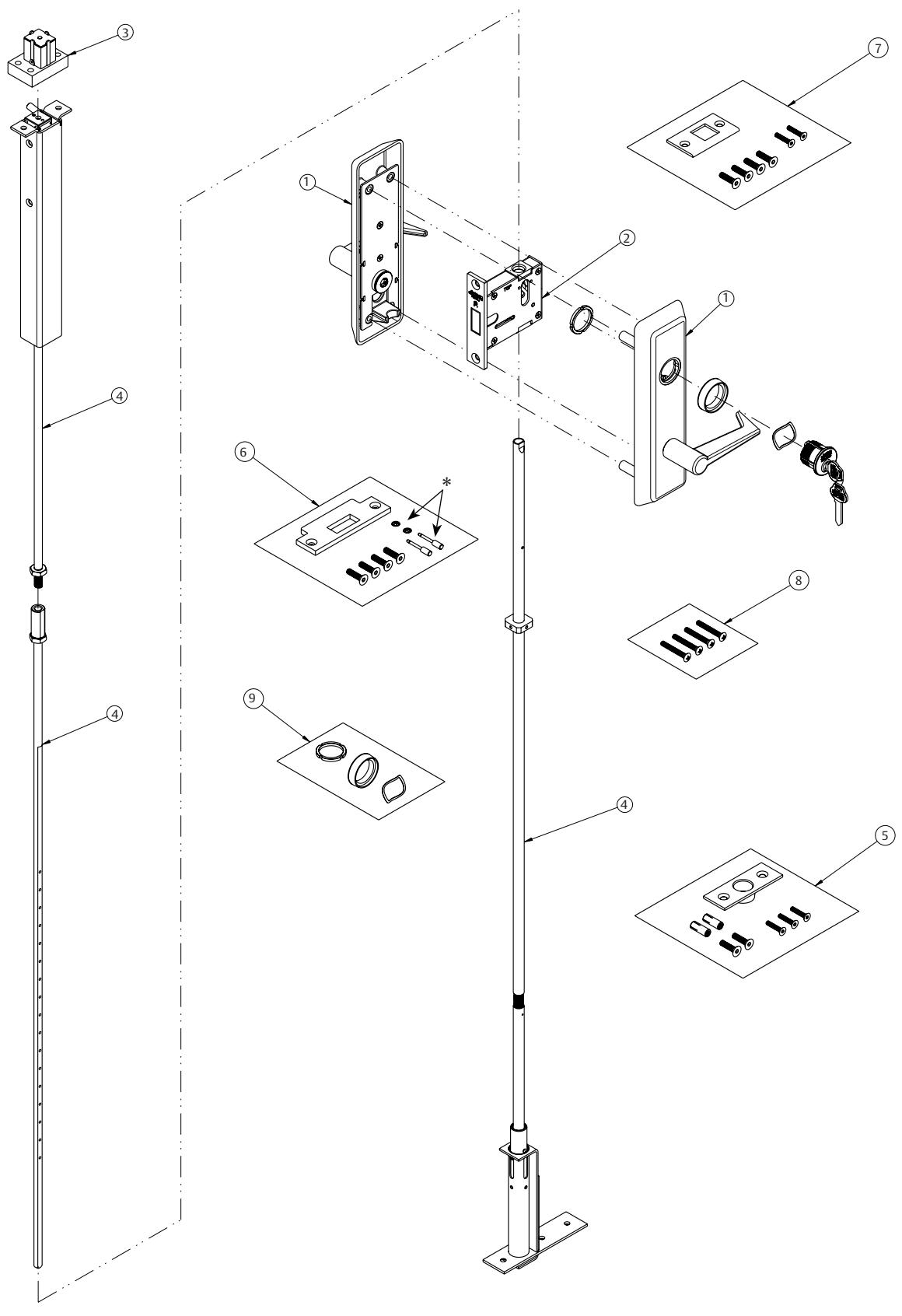

| Item | Part Number | Description | Comments |
|---|---|---|---|
| 1 | FE6810 xS x Finish x Hand x M31 | Outside Trim Assembly - FE6810 |
Must be ordered as a pair.
Must specify lever. Upgraded design, September 2017 |
| FE6855 xS x Finish x Hand x M31 | Outside Trim Assembly - FE6855 | ||
| FE6880 xS x Finish x Hand x M31 | Outside Trim Assembly - FE6880 | ||
| FE68XX xS x Finish x Hand x M31 | Inside Trim Assembly (All Functions) | ||
| 2 | 723F357 | Deadbolt | Fasteners Included |
| 3 | 723F347 | Top Latch Assembly | Fasteners Included |
| 4 | 729F738 | Replacement Rod Assembly - 5'6" - 6'8" |
Upgraded design, June
2022 |
| 729F728 | Replacement Rod Assembly - 6'8" - 8'0" | ||
| 5 | 720F952 26D | Bottom Bolt & Strike Mounting Pack | |
| 6 | 720F977 32D | Center Strike & Deadbolt Mounting Pack | |
| 7 | 720F968 26D | Front & Top Latch Mounting Pack |
Upgraded design, April
2019 |
| 8 | 719F99 x Finish | Trim Mounting Pack | |
| 9 | 721F36 x Finish | Cylinder Collar Pack | Use with 1 1/8" Cylinder |
| 721F37 x Finish | Use with 1 1/4" Cylinder | ||
| 721F38 x Finish | Use with 1 1/2" Cylinder |
* For Link/Drive Pin and Retaining Ring, order Item #6.
For additional information, contact your ASSA ABLOY Door Solutions sales consultant or visit www.corbinrusswin.com.
The warranty on Corbin Russwin products becomes void if the product is modifi ed in any way, regardless of whether the modifi cations causes or contributes to any alleged defect. If a Corbin Russwin product is modifi ed it may no longer meet industry certifi cation and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
