Corbin Russwin FE6800 Series Multi-Point Lock Template_T31042

Original Source Document Full PDF Version

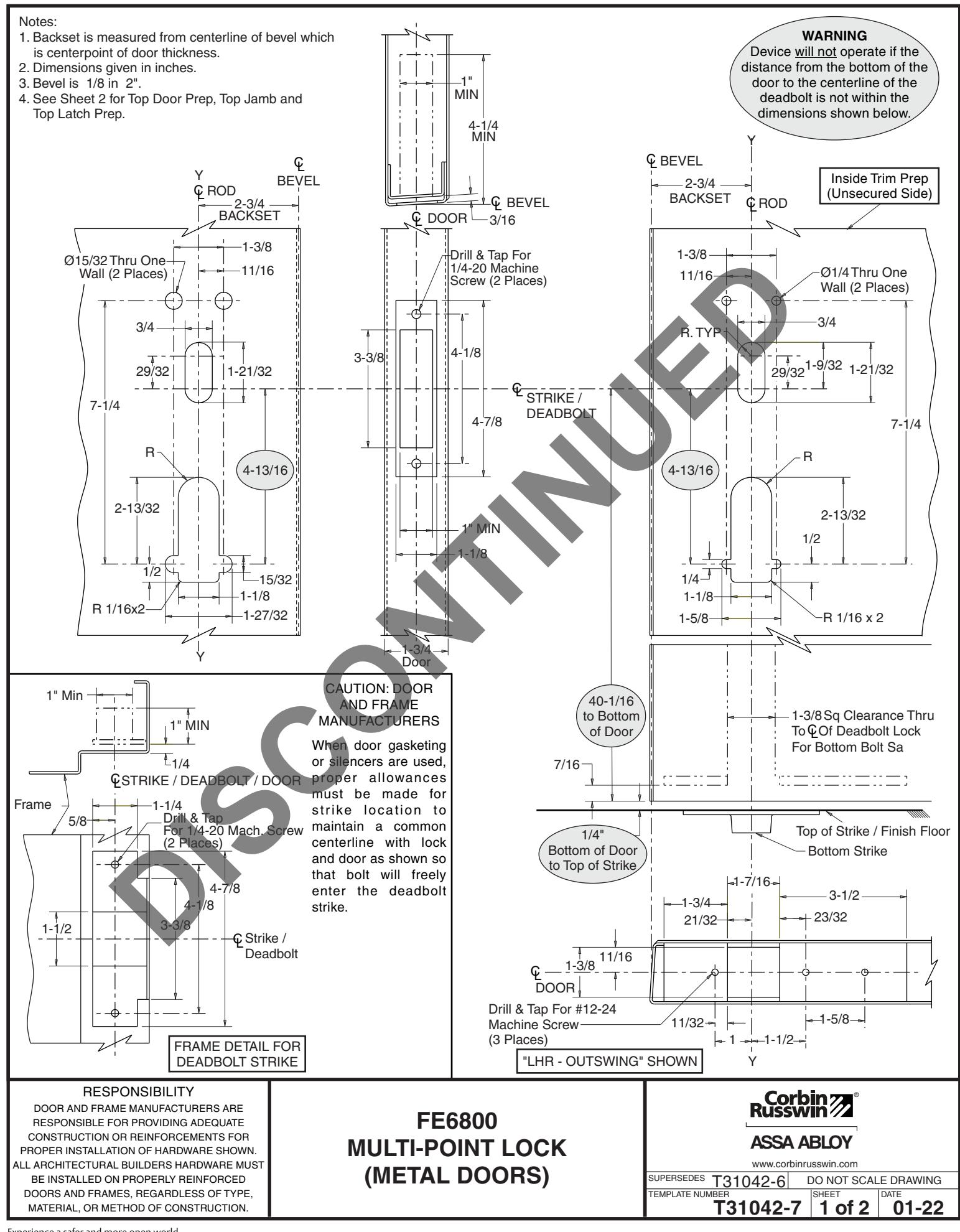

Corbin Russwin FE6800 Series Multi-Point Lock Template_T31042 diagram on page 1

Corbin Russwin FE6800 Series Multi-Point Lock Template_T31042 diagram on page 2
