FE6800
Fortified Multi-Point Latching System
Applications
FE6800 Fortified Multi-Point Latching System
Index
| Applications | 2 |
|---|---|
| Features | 3-4 |
| Trim Designs 5-6 | |
|
Functions, Options
& Accessories 7 |
|
|
Ordering Reference/
Quick Codes8 |
|
| How to Order 9 | |
|
Architectural
Specifications 10 |
The Corbin Russwin FE6800 is a robust three-point locking system engineered to help save lives by securing the community shelter entry. Extra-heavy duty steel components secure the door to the frame – at the top, bottom and center latch points – fortifying the opening to withstand extreme wind speeds and flying debris.
UL approved, the FE6800 is ideal for both FEMA 361 and FEMA 320 applications.
Typical applications include doors and inswing window storm shutters located in:
- › Community Shelters and Safe Rooms
- › Corporate Campuses
- › Schools
- › Healthcare Facilities
- › Government Facilities
Advantages
- › Three-point auto deadlocking as door closes. No manual operation required
- › Solid cast levers
- › UL approved as a severe windstormrated assembly in accordance with FEMA 320 and FEMA 361 guidelines
- › UL 3-hour fire rating
- › Three functions are available including window shutter applications
- › Through-bolts on door for solid attachment
- › Heavy duty component construction with easy everyday use design
Features
FE6800 Fortified Multi-Point Latching System
Certification/ Compliance
UL approved:
- › Meets FEMA 320 and FEMA 361 Guidelines for both inswing and outswing doors; single door 2'6" x 5'6" min and 4'0" x 8'0" max.
- › Fully integrated FE6800 is part of a complete ASSA ABLOY severe windstorm solution utilizing Ceco StormPro® 361, Curries StormPro® 361, Fleming F-5 doors and frames and McKinney® hinges
UL /ULc:
- › All locks listed for 3 hour single doors
- › UL compliant with fire and windstorm markings
- › Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Handing
› Device is handed
Mortised Centerbolt
› Utilizes a one-piece heavy 13 gage chrome plated steel lock case, 3/16" thick stainless steel front.
Deadbolt
› One-piece stainless steel, 19/32" x 1-1/4" x 1" throw
Front
› 1 1/8" x 4-7/8" x 3/16" thick stainless steel, one piece
Backset
› 2-3/4" standard
Center Bolt Strike
› 1/4" stainless steel strike versus 1/8" standard wrought strike
Top Latch
› 5/8" stainless steel latch housing. Through-hardened steel latchbolt, with 7/8" projection fortified with 1/4-20 steel Holo-Krome® mounting screws
Latch front
› 1/8" thick, through-hardened steel front
Door Height
- › Standard for any door or window storm shutter from 6'8" to 8'0" height.
- › Optional top rods for 5'6" to 6'8" door heights.
- › For window storm shutter applications, 1'8" x 3'0" to 4'0" x 6'8" height refer to the FE6700 series catalog.
Bottom Bolt
› 3/4" diameter steel with 3/4" projection with 1/8" steel reinforcement plate
Strike
› Brass bottom strike 1/4-20 steel Holo-Krome fasteners
Door Thickness
› FE6800 is for use with standard 1 3/4" thick doors and frames
Cylinder
› Brass, 6-pin, L4 keyway, 0-bitted, 1 1/8" standard. Optional cylinders available; see Quick Codes
Keys
› Two nickel silver standard
Keying Features Available
- › Master keying
- › Construction master keying
- › Visual key control
- › Concealed key control
- › 7-pin cylinder
- › Security cylinder
- › Pyramid cylinder
- › Interchangeable core (IC)
- › Security IC
- › Pyramid IC
- › Blockout cylinder
Warranty
› Seven-year limited

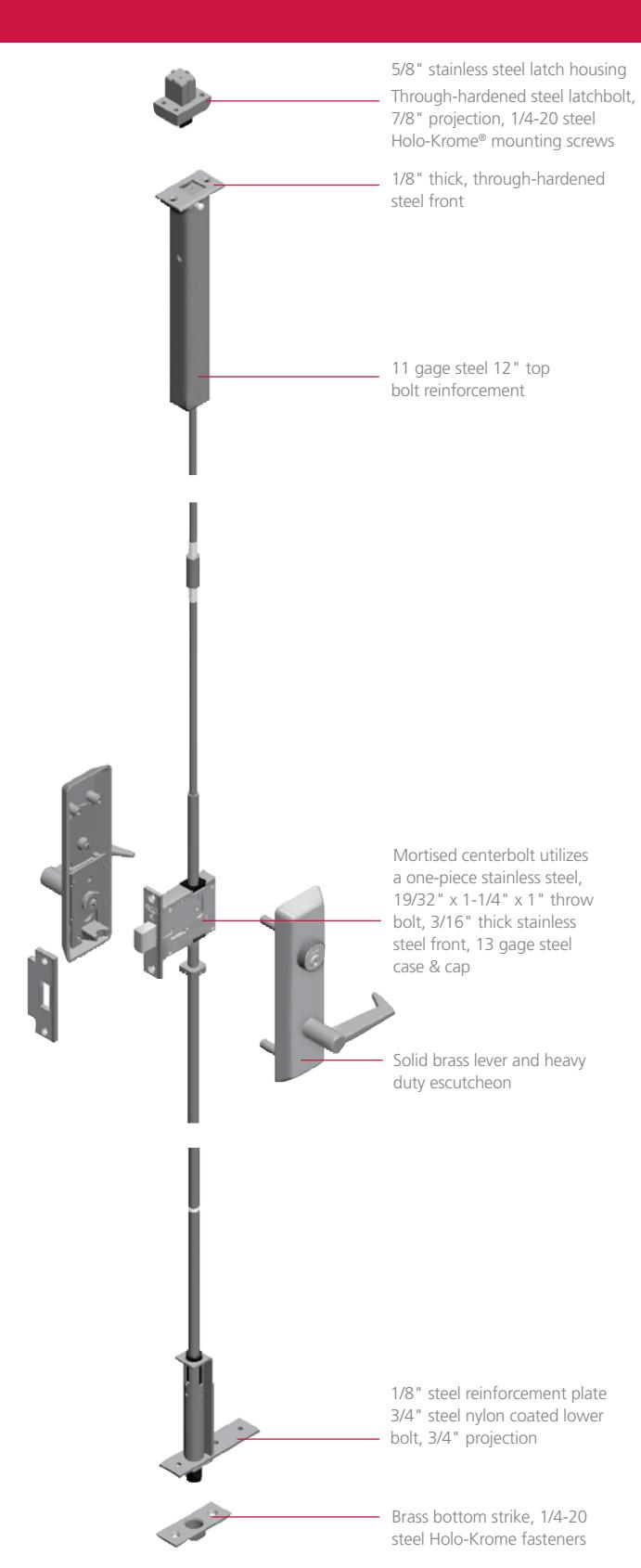

Features
FE6800 Fortified Multi-Point Latching System

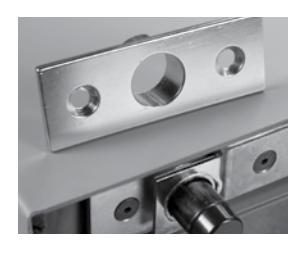

Top Latch 5/8" stainless steel housings, 3/4" projection with 1/8" door gap
Center Bolt Stainless steel deadbolt with 1" projection
Bottom Bolt 3/4" diameter steel with 3/4" projection

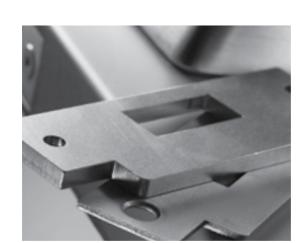

Center Bolt Strike 1/4" stainless steel strike

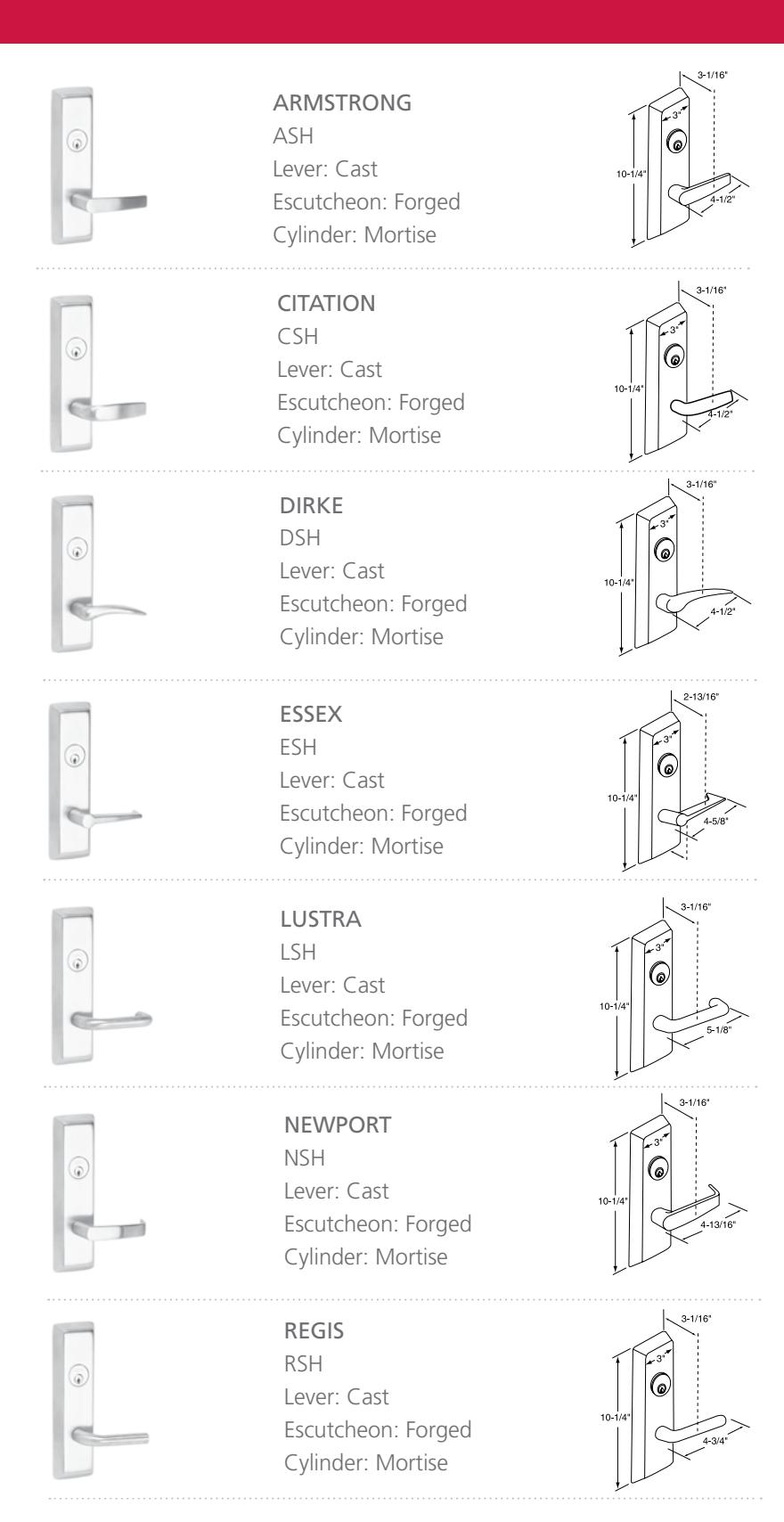

Trim Designs
FE6800 Fortified Multi-Point Latching System
Trim Designs
FE6800 Fortified Multi-Point Latching System
PRINCETON
PSH
Lever: Cast
Escutcheon: Forged Cylinder: Mortise
FRASCATI
FSH
Lever: Cast
Escutcheon: Forged Cylinder: Mortise
MERLOT
MSH
Lever: Cast
Escutcheon: Forged Cylinder: Mortise
TUSCANY
TSH
Lever: Cast
Escutcheon: Forged Cylinder: Mortise
ZINFANDEL
ZSH
Lever: Cast
Escutcheon: Forged Cylinder: Mortise
Functions, Options & Accessories
FE6800 Fortified Multi-Point Latching System
| Outside | Inside |
Series/
Function |
Type | Function Description |
|---|---|---|---|
| FE6855 | Classroom |
• Three-point auto deadlocking.
• Three-point latch retraction by grip either side, unless outside grip is locked by key outside. • Inside grip always free. |
|
| FE6810 | Passage or Closet |
• Three-point auto deadlocking.
• Three-point latch retraction by grip either side. • Both grips always free. |
|
| FE6880 |
Passage Lever x
Blank Plate |
• Three-point auto deadlocking.
• Three-point latch retraction by inside grip. • Lever on one side, blank plate on the other. • Lever always free. |
Mortise Cylinders
- Conventional (standard for FE6800)
- Pyramid (optional)
- IC (optional)
- 2 nickel silver keys
Pyramid (Fixed Core)
Conventional (Fixed Core)
Interchangeable Core
Pyramid
Cylinder Quick Codes
| Mortise Cylinder Type | Cylinder Catalog Number |
|---|---|
| Pyramid High Security (PHS) | 1020-114-A02 |
| Pyramid High Security Interchangeable Core (PCHS) | 1030-114-A02 |
| Conventional 6-pin | 1000-118-A02 |
| 7-pin (7P) | 1000-114-A02-7 |
| 6-pin IC (C6) | 1080-114-A02 |
| 7-pin IC (C7) | 1080-112-A02-7 |
| Security IC (CHS) | 1090-114-A02 |
| Security (HS) | 1010-118-A02 |
FE6800 H-series escutcheon requires cylinder collars depending on length of cylinder specified. To order collars separately, see below:
| Specify |
Cylinder
Length |
|---|---|
| 721F36 | 1-1/8" |
| 721F37 | 1-1/4" |
| 721F38 | 1-1/2" |
Quick Codes
FE6800 Fortified Multi-Point Latching System
Miscellaneous Options
| Description | Specify |
|---|---|
| Torx® head security screws | M04 |
Door Thickness
| Door Thickness | Specify |
|---|---|
| 1-3/4" | Standard |
Door Height
| Door Height | Specify |
|---|---|
| 5'6" - 6'8" | H0600 |
| 6'8" - 8'0" | standard |
Cylinders and Keying
| Description | Specify |
|---|---|
| Conventional 6-pin | 6P |
| Conventional 7-pin | 7P |
| Less Cylinder(s) | LC |
| Security | HS |
| Security IC | CHS |
| Pyramid Security | PS |
| Pyramid Security IC | PCS |
|
Pyramid High Security
Fixed Core |
PHS |
| Pyramid High Security IC | PCHS |
|
Pyramid with Temporary
Construction Core |
CTP |
| Pyramid Less Core | CLP |
| IC 6-pin | C6 |
| SFIC 6-pin with Less Core | CLS6 |
|
SFIC 6-pin with SFIC
disposable temporary core |
CT6SD |
|
IC 6-pin with Temporary
Construction Core |
|
| Red | CT6R |
| Blue | CT6B |
| Green | CT6G |
| IC 6-pin Less Core | CL6 |
| IC 7-pin | C7 |
| SFIC 7-pin with Less Core | CLS7 |
|
SFIC 7-pin with SFIC
disposable temporary core |
CT7SD |
|
IC 7-pin with Temporary
Construction Core |
|
| Red | CT7R |
| Blue | CT7B |
| Green | CT7G |
| IC 7-pin Less Core | CL7 |
| Pyramid Disposable Core | CTPD |
| 6-pin Disposable Core | CT6D |
| 7-pin Disposable Core | CT7D |
| 0-bitted with 2 Blank Keys | |
| Keyed Random (Standard) | KR |
| Construction Master Keyed | CMK |
| Visual Key Control (VKC) | |
|
- No bitting or keyset
stamping on keys |
VKC0 |
| - Keys Only | VKC1 |
|
- Cylinders and Keys
- (not for HS, CHS, PHS or PCHS) |
VKC2 |
|
- Cylinders Only (not for
HS, CHS, PHS or PCHS) |
VKC3 |
Cylinders and Keying (cont.)
| Description | Specify |
|---|---|
| Concealed Key Control (CKC) | |
|
- CKC Cylinders with
VKC Keys |
CKC2 |
|
- CKC Cylinders Only
(not for PHS, PCHS) |
CKC3 |
| 2 Keys per Lock | standard |
| More than 2 Keys |
KY#
(e.g., KY6) |
How to Order
FE6800 Fortified Multi-Point Latching System
Ordering Examples
Stock Order
| Quantity | Series/Function | Trim | Finish | Hand |
|---|---|---|---|---|
| 100 | FE6855 | FSH | 626 | RHR |
Split Trim/Finish Order
| Trim | Finish | |||||
|---|---|---|---|---|---|---|
| Quantity | Series/Function | Outside | Inside | Outside | Inside | Hand |
| 12 | FE6855 | FSH | NSH | 626 | 625 | RH |
Contract/Detailed Order
| Quantity | Keyset | Series/Function | Trim | Finish | Hand |
Optional
Cylinder |
Keying |
|---|---|---|---|---|---|---|---|
| 24 | AA1 | FE6855 | NSH | 626 | RHR | PHS | CKC2 |

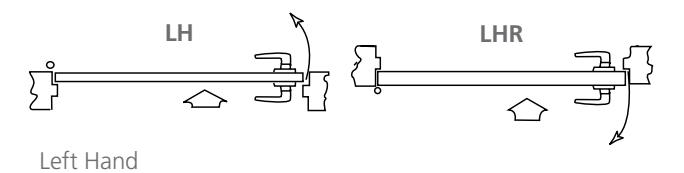

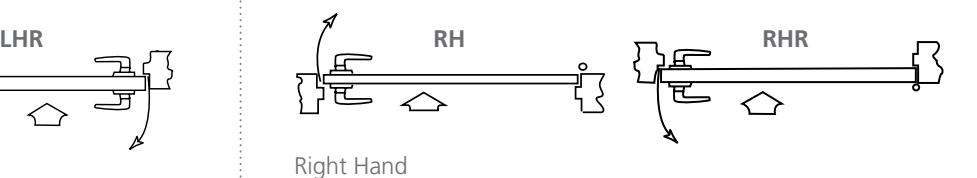

Handing
Note: Arrow indicates secure side of door
| Function | Trim | Finish | Hand | Misc. | Cyl. | |
|---|---|---|---|---|---|---|
| FE6855 | Standard | Vineyard | 605 | RH | M04 | See Page |
| FE6810 | ASH | FSH | 606 | RHR | 7 | |
| FE6880 | CSH | MSH | 611 | LH | ||
| DSH | TSH | 612 | LHR | |||
| ESH | ZSH | 613 | ||||
| LSH | 618 | |||||
| NSH | 619 | |||||
| RSH | 625 | |||||
| PSH | 626 | |||||
| 626C | ||||||
| 629 | ||||||
| 630 | ||||||
| 630C | ||||||
| 722 |
Finish
| Description | Specify |
|---|---|
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
6131 |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome
with MicroShield® |
626C |
| Bright Stainless Steel | 6293 |
| Satin Stainless Steel | 6303 |
|
Satin Stainless Steel
with MicroShield® |
630C |
|
Black Oxidized Bronze,
Oil Rubbed |
7222 |
New, March 2007
Formerly 613 prior to March 2007
Escutcheon finished to match 629, 630 finish
Architectural Specifications
FE6800 Fortified Multi-Point Latching System
FE6800 Series Fortified Multi-Point Auto Deadlocking System
Three-Point Locking System Devices: Three-Point, auto deadbolt locking devices are engineered for use on inswing and outswing door applications at windstorm safe shelter room locations. Concealed, fortified steel construction secures the door to the frame at top, bottom and center latching positions. All three latching points shall be automatically activated when the device is closed and retracted with one single motion upon exiting.
- 1. The Three-Point locking system device is part of an integrated door, frame and hardware assembly UL-approved to both FEMA 361 and FEMA 320 guidelines for both inswing and outswing doors.
- 2. Units shall be manufactured in compliance with NFPA 80 and NFPA 101 life-safety requirements and approved for usage on up to 3-hour, UL10b or 10c fire rated openings.
-
3. Latchbolt Construction:
- a. Mortised Centerbolt: Single piece, 13 gage chrome plated steel lockcase with 3/16" thick stainless steel front. Stainless steel, 1" throw deadbolt. 2 3/4" backset standard with 1/4" stainless steel centerbolt strike.
-
b. Top Latch: Through-hardened steel latchbolt with 7/8" projection, 1/8" steel latchbolt front, and 5/8" stainless steel latch housing secured with 1/4-20 Holo-Krome® fasteners.
- c. Bottom Bolt: 3/4" diameter steel nylon coated bolt with 3/4" projection and 1/8" steel reinforcement plate. Brass strike housing secured with 1/4-20 Holo-Krome fasteners.
- 4. Provide devices with heavy-duty, brass escutcheon trim and solid cast levers matching the design style and architectural finishes as the balance of the lockset and latches specified.
- 5. Cylinders and Keying: Refer to separate Part 2 Products "Keying" paragraph sub-section for related keying requirements.
- 6. Three-Point locking system devices shall have a seven-year limited warranty.
- 7. Three-Point Auto Deadlock Devices shall be FE6800 Series as manufactured by Corbin Russwin Architectural Hardware of Berlin, CT.
