Storm Resistant

Corbin Russwin FE6700 Series Storm Shutters Sell Sheet_45157 image on page 1

Corbin Russwin FE6700 Series Storm Shutters Sell Sheet_45157 image on page 1

FE6700 Series Storm Shutter Multi-Point Latching System

The Corbin Russwin FE6700 Series is a robust three-point locking system engineered to help save lives by securing the community shelter window openings. Extra heavy-duty steel components secure the shutter to the frame – at the top, bottom and center latch points – fortifying the opening to withstand extreme wind speeds and flying debris. UL Classified for both FEMA P-320 (2014), FEMA P-361 (2015) and ICC 500 (2014), the FE6700 Series provides peace of mind when a tornado approaches.

Corbin Russwin FE6700 Series Storm Shutters Sell Sheet_45157 image on page 1

Corbin Russwin FE6700 Series Storm Shutters Sell Sheet_45157 image on page 2

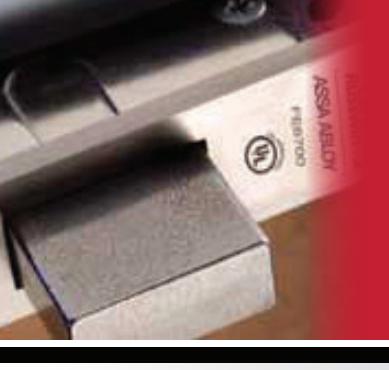

FE6700 Series

Storm Shutter Multi-Point Latching System

APPLICATIONS

  • Community Shelters and Safe Rooms
  • Corporate Campuses
  • K-12 Schools
  • Healthcare Facilities
  • Government Facilities

FEATURES AND BENEFITS

  • Three point auto deadlocking system
  • UL Classified to FEMA P-320 (2014), P-361 (2015) and ICC 500 (2014)
  • Recommended for In swing applications
  • Available for shutters sized 2' 8" x 3' 0" up to 4' x 6' 8".
  • Heavy duty escutcheons standard
  • Fully Integrated part of a complete ASSA ABLOY severe windstorm solution utilizing Ceco and Curries StormPro® shutters and frames and McKinney StormPro® and Markar hinges.
  • Fortified with high tensile alloy Holo-Krome® fasteners
  • All three latching points are activated automatically when the shutter is closed

Corbin Russwin FE6700 Series Storm Shutters Sell Sheet_45157 diagram on page 2

Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 www.corbinrusswin.com

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive, Vaughan, Ontario, Canada L4K 4T9 Phone: 800-461-3007 Fax: 905-738-2478 www.assaabloy.ca
