FE6700 Series
Product Catalog
Applications
FE6700 Series Storm Shutter Multi-Point Latching System
Table of Contents
| Applications2 | |
| Features3-4 | |
| Trim Designs5-6 | |
| Functions and Options7 | |
|
Ordering Reference/
Quick Codes8 |
|
| How to Order9 | |
|
Architectural
Specifications10 |

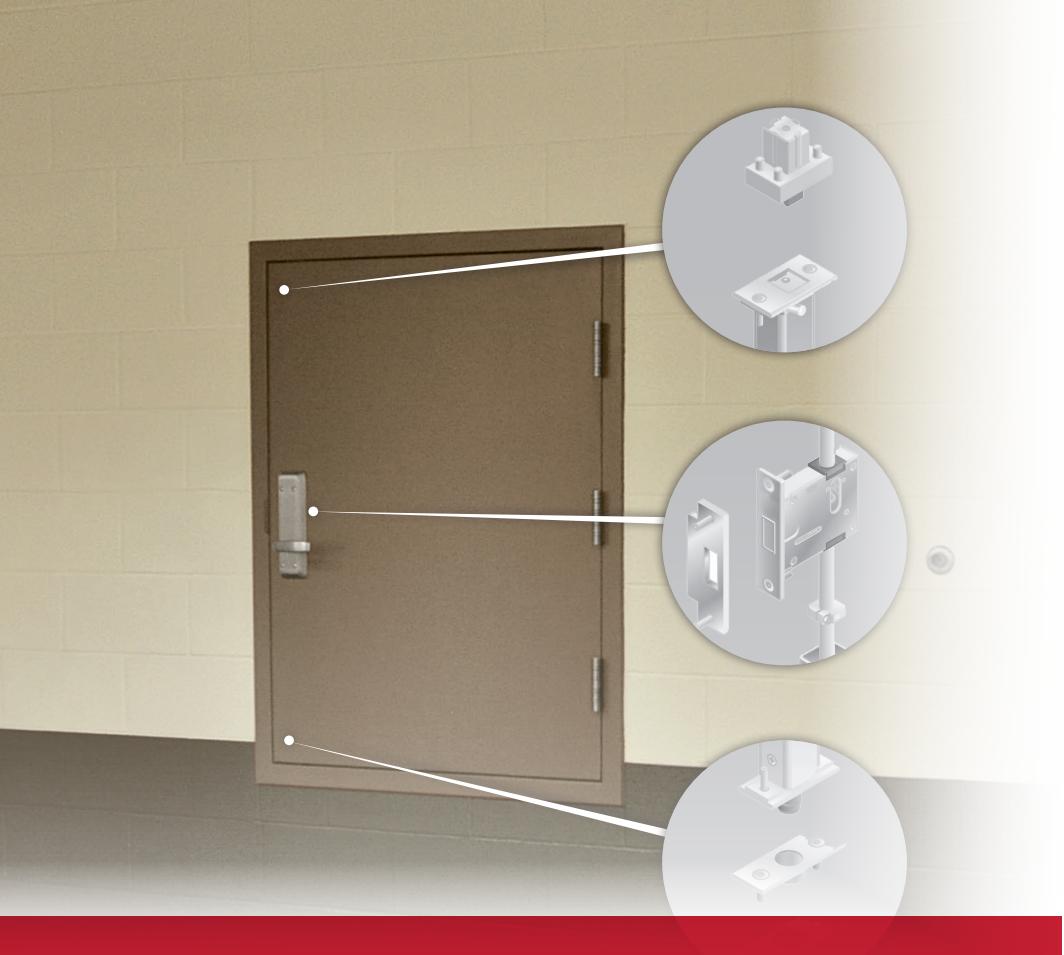

The Corbin Russwin FE6700 Series is a robust three-point locking system engineered to help save lives by securing the shelter window openings. Extra-heavy duty steel components secure the shutter to the frame – at the top, bottom and center latch points – fortifying the opening to withstand extreme wind speeds and flying debris.
The FE6700 Series is UL Listed for FEMA P320 (2014), P361 (2015) and ICC 500-2014.
Typical applications include window openings located in:
- › Community Shelters and Safe Rooms
- › Corporate Campuses
- › Schools
- › Healthcare Facilities
- › Government Facilities
Advantages
- › Three-point auto deadlocking when shutter closes. No manual operation required
- › Solid cast lever
- › UL listed as a severe windstorm-rated assembly in accordance with FEMA P-320 (2014), P-361 (2015) and ICC 500-2014.
- › Typical storm shutter applications use the passage lever x blank plate function (FE6780).
- › Optional classroom function (FE6755) and passage or closet function (FE6710) also available.
- › Heavy duty component construction with easy everyday use design
www.corbinrusswin.com
Features
FE6700 Series Storm Shutter Multi-Point Latching System
Certification/ Compliance
- › Meets FEMA P-320 (2014), FEMA P-361 (2015) and ICC 500 (2014) for inswing or outswing shutters 2'8" w x 3'0" h min to 4'0" w x 6'8" h max.
- › Fully integrated FE6700 Series is part of a complete ASSA ABLOY severe windstorm solution requiring Ceco and Curries StormPro® shutters and frames and McKinney® hinges.
- › UL10C with a 3 hour fire rating.
Note: Any retrofit or other field modification to a fire and/or windstorm rated opening can potentially impact the fire and/or windstorm rating of the opening, and Corbin Russwin makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire and/or windstorm rated opening, or specifying and installing a new fire and/or windstorm rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

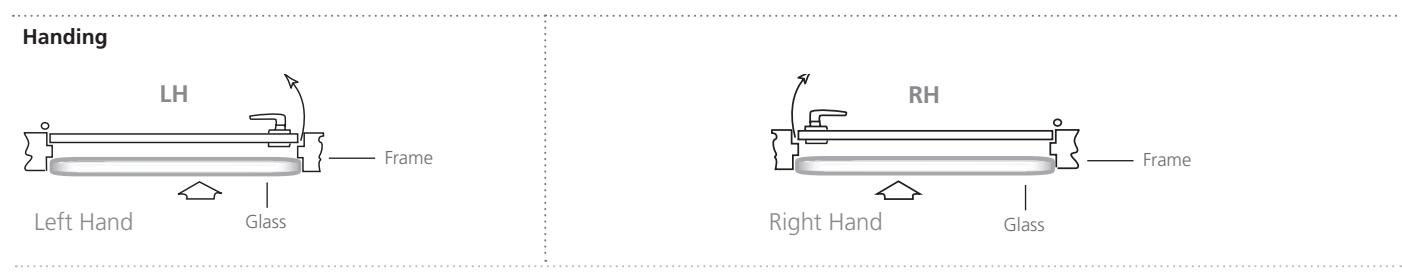

Handing
› Device is handed
Mortised Centerbolt
- › Utilizes a one-piece heavy gauge chrome plated steel lock case, 3/16" thick stainless steel front.
- › Center bolt and trim height location are set during installation allowing them to always remain in the center of the shutter, regardless of application and shutter height.
Deadbolt
› One-piece stainless steel, 19/32" x 1-1/4" x 1" throw
Front
› 1-1/8" x 4-7/8" x 3/16" thick stainless steel, one piece
Backset
› 2-3/4" standard
Center Bolt Strike
› 1/4" stainless steel strike
Top Latch
› 5/8" stainless steel latch housing. Through-hardened steel latchbolt, with 7/8" projection
Latch front
› 1/8" thick, through-hardened steel front
Shutter Sizes
- › Single shutters
- Minimum 2'6" x 3'0"
- Maximum 4'0" x 6'8"
-
› Pair of Shutters
- Minimum 5'0" x 4'0"
- Maximum 8'0" x 6'8"
Shutter Swing
› Inswing or outswing
Bottom Bolt
› 3/4" diameter steel with 3/4" projection with 1/8" steel reinforcement plate
Strike
› Brass bottom strike
Shutter Thickness
› FE6700 is for use with standard 1-3/4" thick shutters
Optional Keys
› Two nickel silver standard
Optional Keying Features Available
- › Master keying
- › Construction master keying
- › Visual key control
- › Concealed key control
- › 7-pin cylinder
- › Security cylinder
- › Pyramid cylinder
- › Access 3® cylinder
- › Interchangeable core (IC)
- › Security IC
- › Pyramid IC
- › Access 3® IC
Warranty
› Seven-year limited

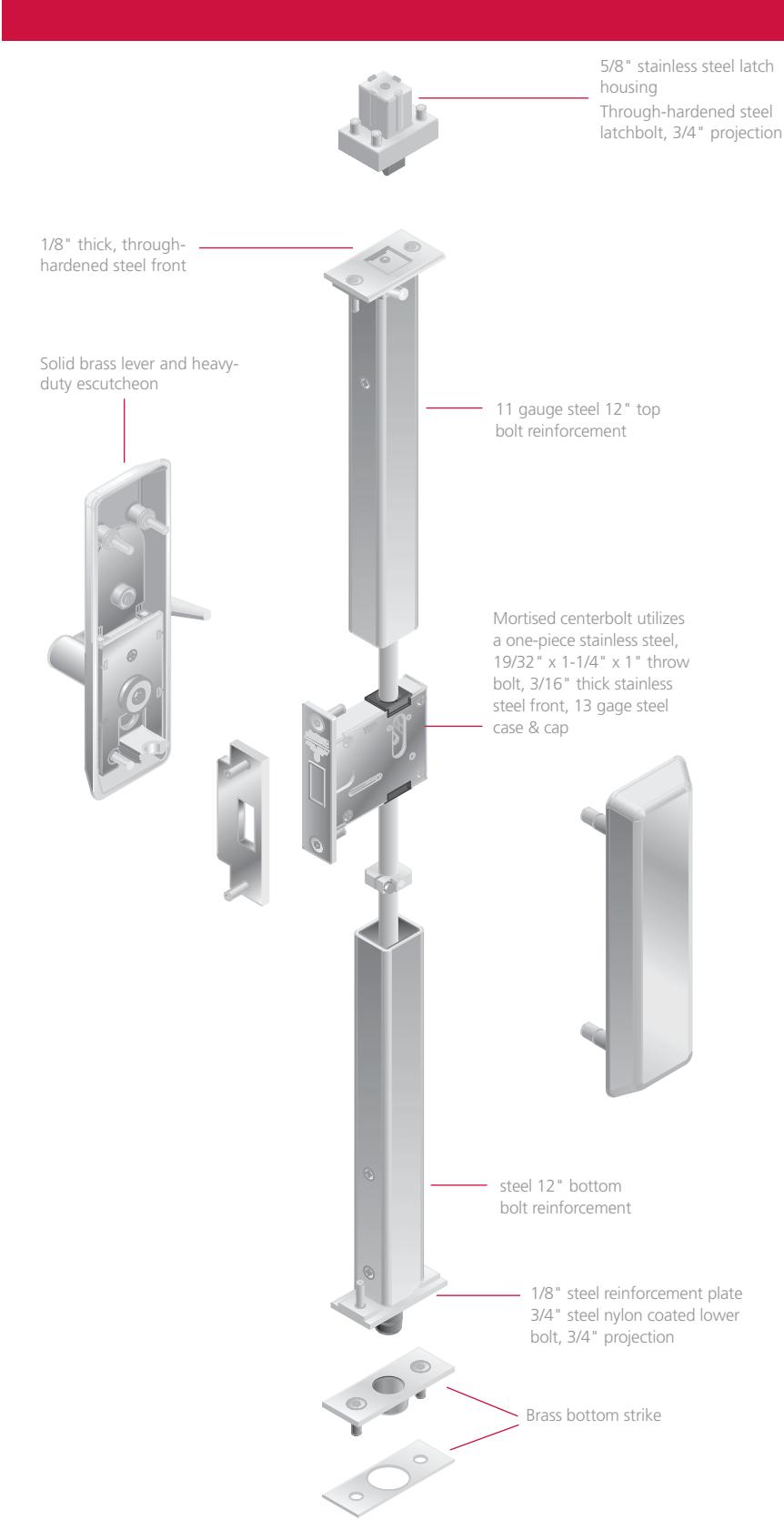

Features
FE6700 Series Storm Shutter Multi-Point Latching System
Top Latch 5/8" stainless steel housings, 3/4" projection with 1/8" shutter gap
Center Bolt Stainless steel deadbolt with 1" projection
Bottom Bolt 3/4" diameter steel with 3/4" projection

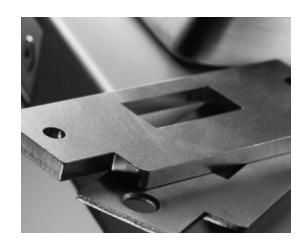

Center Bolt Strike 1/4" stainless steel strike
Trim Designs
FE6700 Series Storm Shutter Multi-Point Latching System
Copyright © 2009-2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

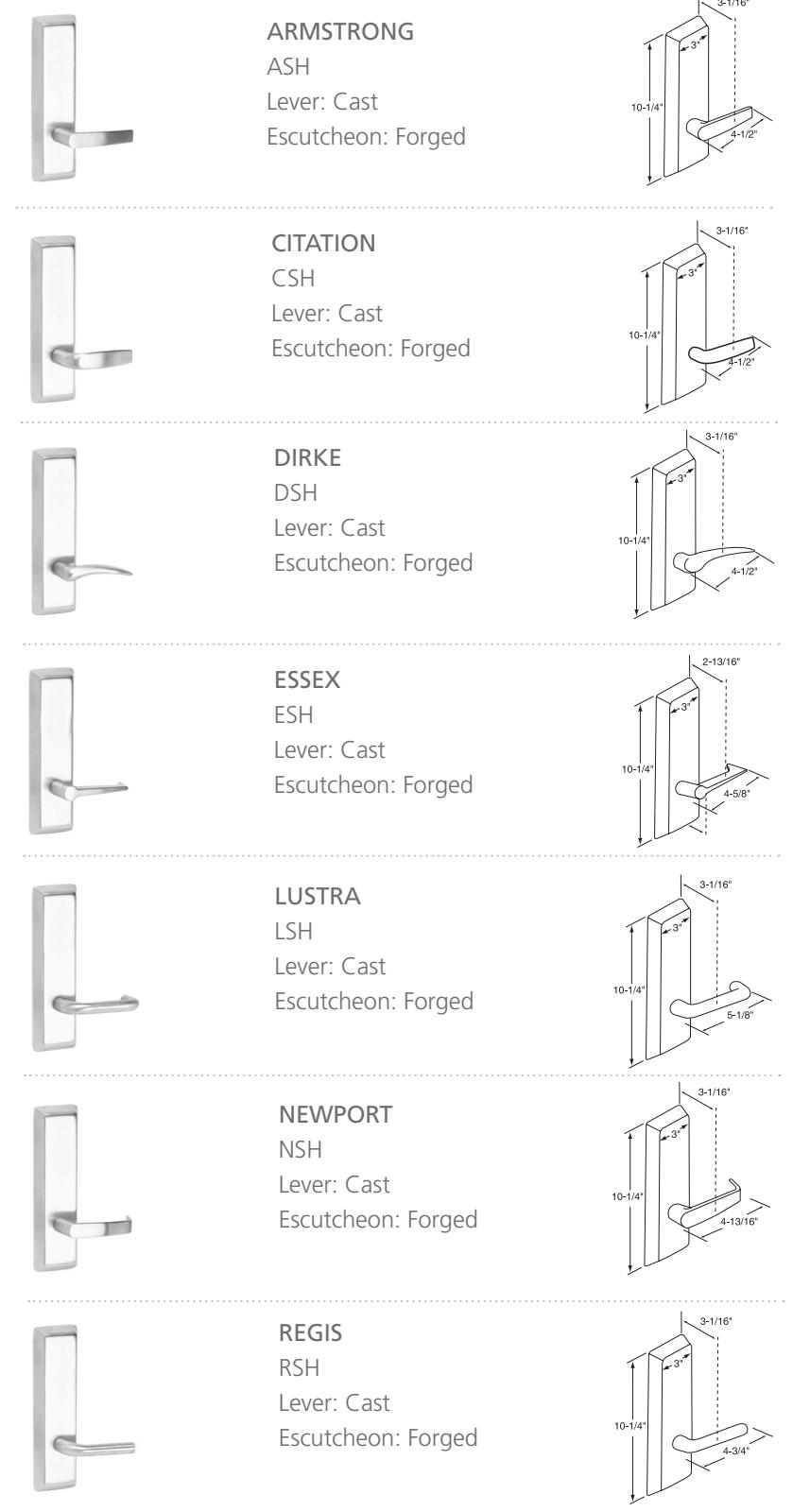

Trim Designs
FE6700 Series Storm Shutter Multi-Point Latching System
PRINCETON
PSH
Lever: Cast
Escutcheon: Forged
FRASCATI
FSH
Lever: Cast
Escutcheon: Forged
MERLOT
MSH
Lever: Cast
Escutcheon: Forged
ZINFANDEL
ZSH
Lever: Cast
Escutcheon: Forged
Functions and Options
FE6700 Series Storm Shutter Multi-Point Latching System
For Typical Shutter Applications
| Outside | Inside |
Series/
Function |
Type | Function Description |
|---|---|---|---|
| FE6780 |
Passage Lever x
Blank Plate |
• Three-point auto deadlocking.
• Three-point latch retraction by inside grip. • Lever on one side, blank plate on the other. • Lever always free. • For inswing window storm shutters. |
|
| FE6755 | Classroom |
• Three-point auto deadlocking.
• Three-point latch retraction by grip either side, unless outside grip is locked by key outside. • Inside grip always free. |
Miscellaneous Options
| Description | Specify |
|---|---|
| Torx® head security screws | M04 |
| Working trim only | M31 |
Shutter Thickness
| Shutter Thickness | Specify |
|---|---|
| 1-3/4" | Standard |
Shutter Height - Must be specified
| Shutter Height | Specify |
|---|---|
| 3'0" - 4'6" | H0400 |
| 4'6" - 6'8" | H0500 |
Ordering Reference/Quick Codes
FE6700 Series Storm Shutter Multi-Point Latching System
Optional Mortise Cylinders
- Conventional (standard for FE6700)
- Pyramid (optional)
- IC (optional)
- 2 nickel silver keys
Pyramid
Interchangeable Core
Pyramid Shown
Cylinder Quick Codes
| Mortise Cylinder Type | Cylinder Catalog Number |
|---|---|
| Pyramid High Security (PHS) | 1020-114-A02 |
| Pyramid High Security Interchangeable Core (PCHS) | 1030-114-A02 |
| Conventional 6-pin | 1000-118-A02 |
| 7-pin (7P) | 1000-114-A02-7 |
| 6-pin IC (C6) | 1080-114-A02 |
| 7-pin IC (C7) | 1080-112-A02-7 |
| Security IC (CHS) | 1090-114-A02 |
| Security (HS) | 1010-118-A02 |
FE6700 H-series escutcheon requires cylinder collars depending on length of cylinder specified.
To order collars separately, see below:
|
Cylinder
Length |
|---|
| 1-1/8" |
| 1-1/4" |
| 1-1/2" |
Cylinders and Keying
| Cylinders and Keying | |
|---|---|
| Description | Specify |
| Conventional 6-pin | 6P |
| Conventional 7-pin | 7P |
| Less Cylinder(s) | LC |
| Security | HS |
| Security IC | CHS |
| Access 3- Patented | AP |
| Access 3 - Security | AS |
| Access 3 - High Security | AHS |
| Access 3 IC - Patented | ACP |
| Access 3 IC - Security | ACS |
| Access 3 IC- High Security | ACHS |
| Pyramid Security | PS |
| Pyramid Security IC | PCS |
| Pyramid High Security Fixed Core | PHS |
| Pyramid High Security IC | PCHS |
|
Pyramid with Temporary
Construction Core |
CTP |
| Pyramid Less Core | CLP |
| IC 6-pin | C6 |
| SFIC 6-pin with Less Core | CLS6 |
|
SFIC 6-pin with SFIC disposable
temporary core |
CT6SD |
|
IC 6-pin with Temporary
Construction Core |
|
| Red | CT6R |
| Blue | CT6B |
| Green |
CT6G
CL6 |
| IC 6-pin Less Core | |
| IC 7-pin | C7 |
| SFIC 7-pin with Less Core | CLS7 |
|
SFIC 7-pin with SFIC disposable
temporary core |
CT7SD |
|
IC 7-pin with Temporary
Construction Core |
|
| Red | CT7R |
|
Blue
Green |
CT7B
CT7G |
| IC 7-pin Less Core | CL7 |
| Pyramid Disposable Core | CTPD |
| 6-pin Disposable Core | CT6D |
| 7-pin Disposable Core | CT7D |
| 0-bitted with 2 Blank Keys | |
| Keyed Random (Standard) | KR |
| Construction Master Keyed | CMK |
| Visual Key Control (VKC) | |
|
- No bitting or keyset stamping
on keys |
VKC0 |
| - Keys Only | VKC1 |
| - Cylinders and Keys | VKC2 |
| - (not for HS, CHS, PHS | |
|
or PCHS)
- Cylinders Only (not for HS, CHS, PHS or PCHS) |
VKC3 |
| Concealed Key Control (CKC) | |
| - CKC Cylinders with | CKC2 |
| VKC Keys | |
|
- CKC Cylinders Only
(not for PHS, PCHS) |
CKC3 |
| 2 Keys per Lock | standard |
| KY# | |
| More than 2 Keys | (e.g., KY6) |
How to Order
FE6700 Series Storm Shutter Multi-Point Latching System
Ordering Examples
Stock Order
| Quantity | Series/Function | Trim | Finish | Hand | Shutter Height |
|---|---|---|---|---|---|
| 100 | FE6780 | FSH | 626 | RH | H0400 |
Stock Order
| Quantity | Series/Function | Trim | Finish | Hand | Shutter Height |
|---|---|---|---|---|---|
| 50 | FE6780 | NSH | 625 | LH | H0500 |
Note: Arrow indicates secure side of shutter
| Function | Trim | Finish | Hand | Misc. | |
|---|---|---|---|---|---|
| FE6755 | Standard | Vineyard | 605 | RH | M04 |
| FE6710 | ASH | FSH | 606 | LH | M31 |
| FE6780 | CSH | MSH | 611 | ||
| DSH | TSH | 612 | |||
| ESH | ZSH | 613 | |||
| LSH | 618 | ||||
| NSH | 619 | ||||
| RSH | 625 | ||||
| PSH | 626 | ||||
| 626C | |||||
| 629 | |||||
| 630 | |||||
| 630C | |||||
| 722 |
Finish
| Description | Specify |
|---|---|
| Polished Brass, Clear Coated | 605 |
| Satin Brass, Clear Coated | 606 |
|
Polished Bronze, Clear
Coated |
611 |
| Satin Bronze, Clear Coated | 612 |
|
Dark Oxidized Satin Bronze,
Oil Rubbed |
613 |
|
Dark Oxidized Satin Bronze -
Equivalent |
613E |
| Polished Nickel | 618 |
| Satin Nickel | 619 |
| Polished Chrome | 625 |
| Satin Chrome | 626 |
|
Satin Chrome
with MicroShield® |
626C |
| Bright Stainless Steel | 6291 |
| Satin Stainless Steel | 6301 |
|
Satin Stainless Steel
with MicroShield® |
630C |
|
Black Oxidized Bronze,
Oil Rubbed |
722 |
| Black Suede Powder Coat | BSP |
Escutcheon finished to match 629, 630 finish
Architectural Specifications
FE6700 Series Storm Shutter Multi-Point Latching System
FE6700 Series Storm Shutter Multi-Point Latching System
Three-Point Locking System Devices: Three-Point, auto deadbolt locking devices are engineered for use on inswing shutter applications at windstorm safe shelter room locations. Concealed, fortified steel construction secures the shutter to the frame at top, bottom and center latching positions. All three latching points shall be automatically activated when the device is closed and retracted with one single lever activation motion.
- 1. The Multi-Point latching system device is part of an integrated shutter, frame and hardware assembly UL-listed to FEMA P320 (2014), FEMA P361 (2015) and ICC 500-2014 for inswing applications.
-
2. Latchbolt Construction:
- a. Mortised Centerbolt: Single piece, 13 gauge chrome plated steel lockcase with 3/16" thick stainless steel front. Stainless steel, 1" throw deadbolt. 2 3/4" backset standard with 1/4" stainless steel centerbolt strike.
-
b. Top Latch: Through-hardened steel latchbolt with 7/8" projection, 1/8" steel latchbolt front, and 5/8" stainless steel latch housing
- c. Bottom Bolt: 3/4" diameter steel nylon coated bolt with 3/4" projection and 1/8" steel reinforcement plate. Brass strike housing.
- 3. Provide devices with heavy-duty, brass escutcheon trim and solid cast levers matching the design style and architectural finishes as the balance of the lockset and latches specified.
- 4. Inswinging storm shutters are furnished as a complete door, frame, and hardware assembly for openings measuring from 2'8" x 3'0" minimum to 4'0" x 6'8" maximum.
- 5. Three-Point locking system devices shall have a seven-year limited warranty.
- 6. Multi-Point latching system devices shall be FE6700 Series as manufactured by Corbin Russwin Architectural Hardware of Berlin, CT.
Notes
FE6700 Series Storm Shutter Multi-Point Latching System
The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.
ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S.
Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, registered with the EPA and FDA. Microshield® is a silver-based antimicrobial coating designed to inhibit the growth of bacteria. MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free
of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA
