Corbin Russwin FE6700 Series Multipoint Lock Parts Manual_45677 image on page 1

FE6700 Series

Multi-Point Locks Parts Manual

Corbin Russwin FE6700 Series Multipoint Lock Parts Manual_45677 image on page 1

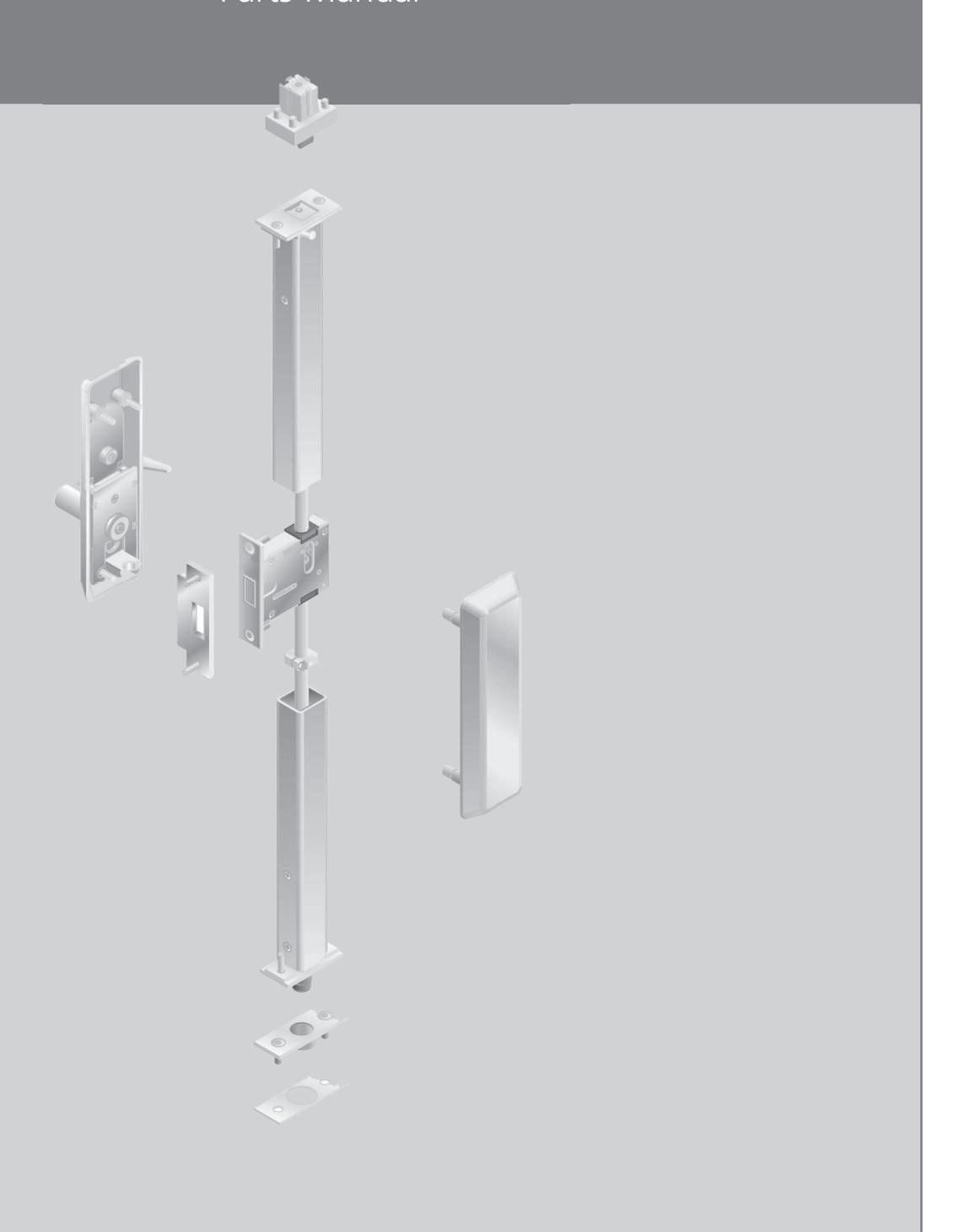

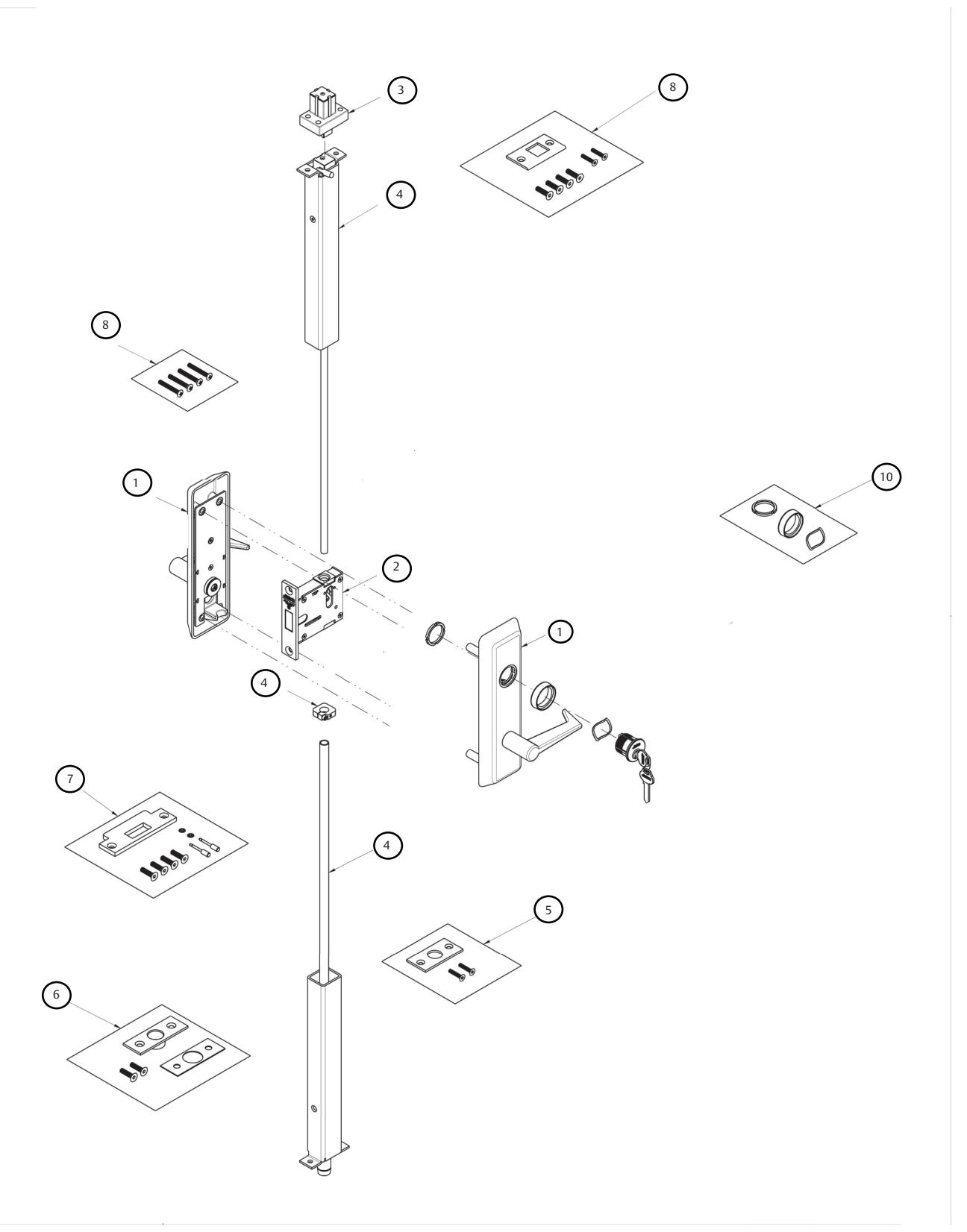

Item Part Number Description Comments
1 FE6710 xS x Finish x Hand x M31 Outside Trim Assembly - FE6710 Must be ordered as a pair.
Must specify lever.
Upgraded design,
September 2017.
FE6755 xS x Finish x Hand x M31 Outside Trim Assembly - FE6755
FE6780 xS x Finish x Hand x M31 Outside Trim Assembly - FE6780
FE67XX xS x Finish x Hand x M31 Inside Trim Assembly (All Functions)
2 723F457 Deadbolt Fasteners Included
3 723F347 Top Latch Assembly Fasteners Included
4 723F088 Replacement Rod Assembly - 3'0" - 4'6" Upgraded design, June
2016
723F098 Replacement Rod Assembly - 4'6" - 6'8"
5 751F508 26D Bottom Bolt Plate Mounting Pack
6 751F512 26D Bottom Strike Mounting Pack
7 720F977 32D Center Strike & Deadbolt Mounting Pack
8 720F968 26D Front & Top Latch Mounting Pack Upgraded design, April
2019
9 719F99M FIN Trim Mounting Pack
10 721F36M FIN Cylinder Collar Pack Use with 1 1/8" Cylinder
721F37M FIN Use with 1 1/4" Cylinder
721F38M FIN Use with 1 1/2" Cylinder

* For Link/Drive Pin and Retaining Ring, order Item #7.

For additional information, contact your ASSA ABLOY Door Solutions sales consultant or visit www.corbinrusswin.com.
