DOORS AND FRAMES, REGARDLESS OF TYPE,

MATERIAL, OR METHOD OF CONSTRUCTION.

2 of 3

02-22

TEMPLATE NUM

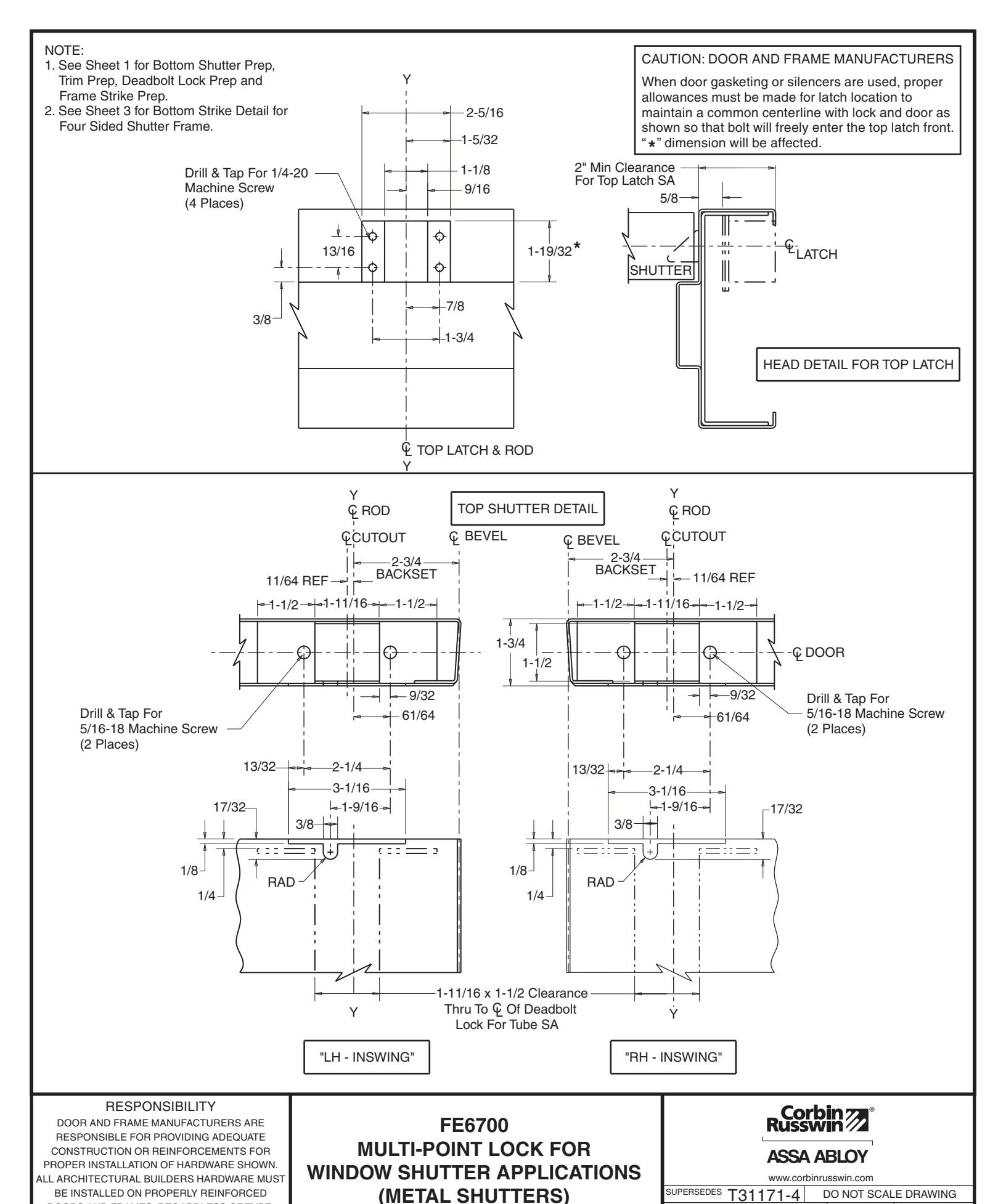

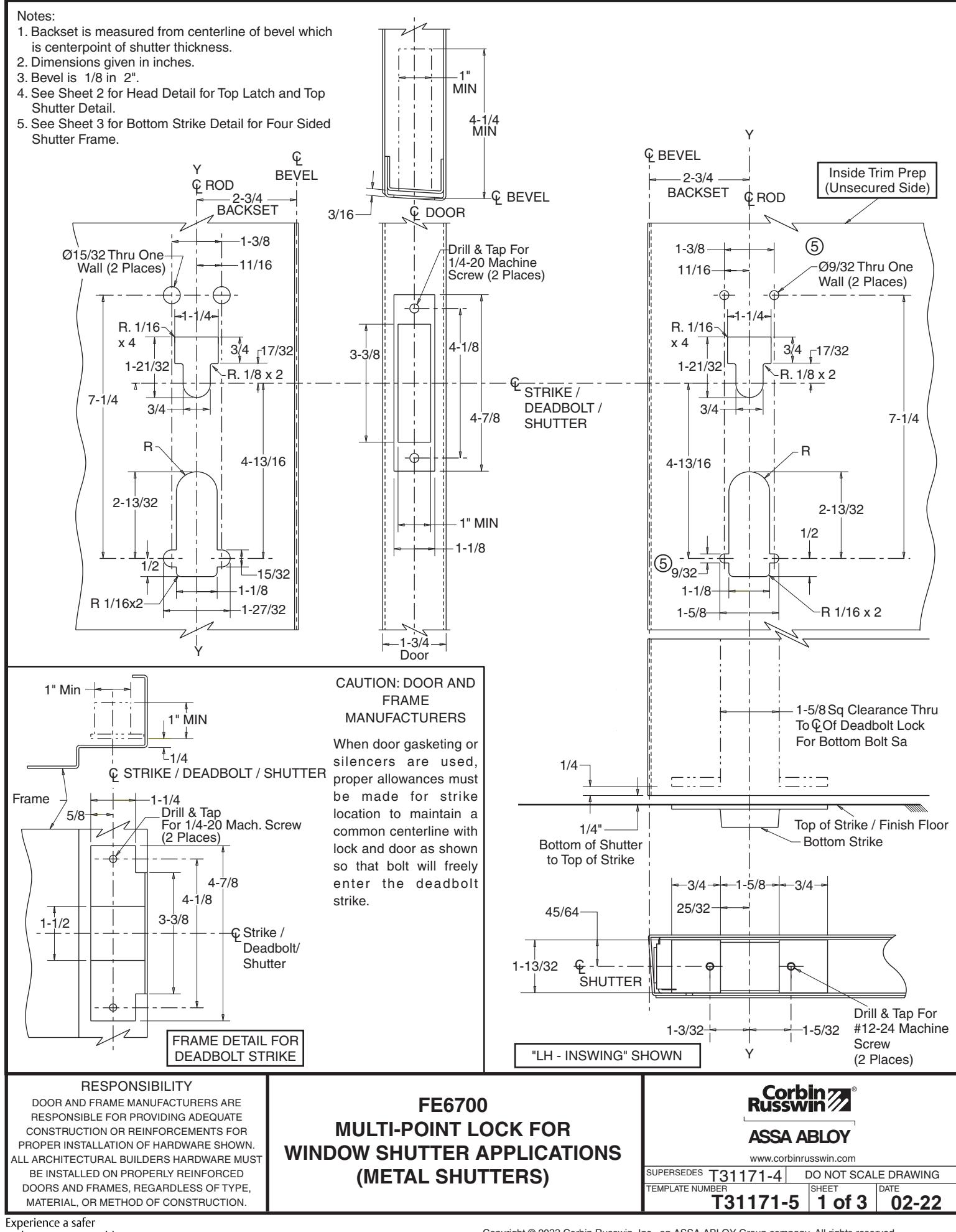

T31171-5 02-22 T31171-4 www.corbinrusswin.com ASSA ABLOY SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER DATE SHEET 3 of 3 RESPONSIBILITY DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. FE6700 MULTI-POINT LOCK FOR WINDOW SHUTTER APPLICATIONS (METAL SHUTTERS) Y 2-1/2 1-1/4 2-3/4 Backset 1-1/2 Drill & Tap for 1/4-20 Machine Screw (2 Places) 1-7/16 1-21/32 R1/32 x 4 1-29/32 3-13/16 CL SHUTTER CL BOTTOM STRIKE & BOTTOM BOLT 3/4 Min. Clearance for Bottom Bolt Y 11/64 NOTE: 1. See Sheet 1 for Bottom Shutter Prep, Trim Prep, Deadbolt Lock Prep and Frame Strike Prep. 2. See Sheet 2 for Head Detail for Top Latch and Top Shutter Detail. BOTTOM STRIKE DETAIL FOR FOUR SIDED SHUTTER FRAME CAUTION: DOOR AND FRAME MANUFACTURERS When door gasketing or silencers are used, proper allowances must be made for bottom strike location to maintain a common centerline with lock and door as shown so that bolt will freely enter the bottom strike. " " dimension will be affected. * *
