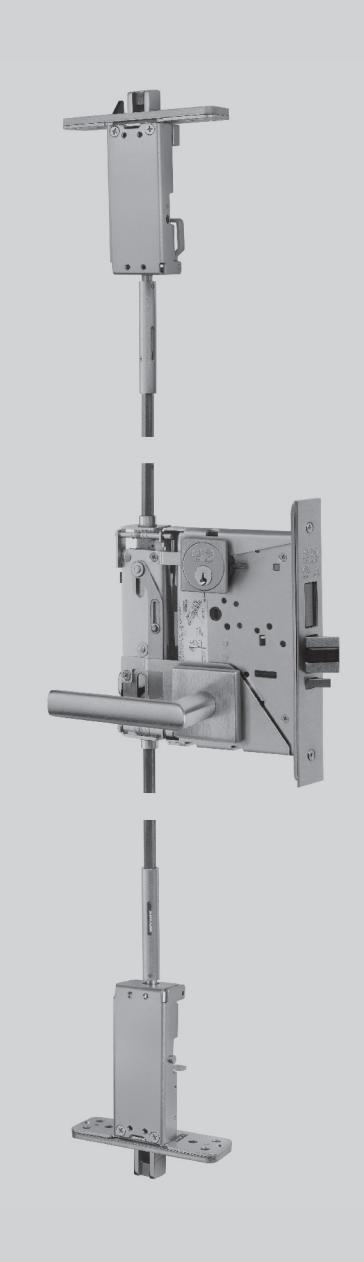

FE6600 Series
Multi-Point Lock Parts Manual
Templating and Installation
For door templates and installation instructions, please refer to our website at www.corbinrusswin.com.
How to Order Parts
- 1. In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed
-
2. To order parts, provide the appropriate quantity, part number, finish, hand (when required) and description as directed and illustrated below.
- For example, use the following configuration to order:
- A) ten chassis in satin chrome
- B) one dogging indicator in bright brass
| Quantity | Part Number | Finish | Hand | Description | |
|---|---|---|---|---|---|
| A | 10 | 729F528 | 626 | — | Cassette |
| B | 1 | 726F64M | 605 | — | Dogging Indicator |
For assistance, contact your authorized Corbin Russwin distributor, sales agency or visit our website at www.corbinrusswin.com.
Finishes
| ANSI/BHMA Code | Finish Description | ||
|---|---|---|---|
| 605 | Bright Brass, Clear Coated | ||
| 606 | Satin Brass, Clear Coated | ||
| 611 | Bright Bronze, Clear Coated | ||
| 612 | Satin Bronze, Clear Coated | ||
| 613 | Dark Oxidized Satin Bronze, Oil Rubbed | ||
| 613E | Dark Oxidized Satin Bronze, Equivalent | ||
| 618 | Bright Nickel, Clear Coated | ||
| 619 | Satin Nickel Plated, Clear Coated | ||
| 625 | Bright Chrome Plated | ||
| 626 | Satin Chrome Plated | ||
| 626C | Satin Chrome Plated with MicroShield® | ||
| 629 | Polished stainless steel | ||
| 630 | Satin stainless steel | ||
| 630C | Satin stainless steel with Microshield | ||
| 722 | Black Oxidized Satin Bronze, Oil Rubbed | ||

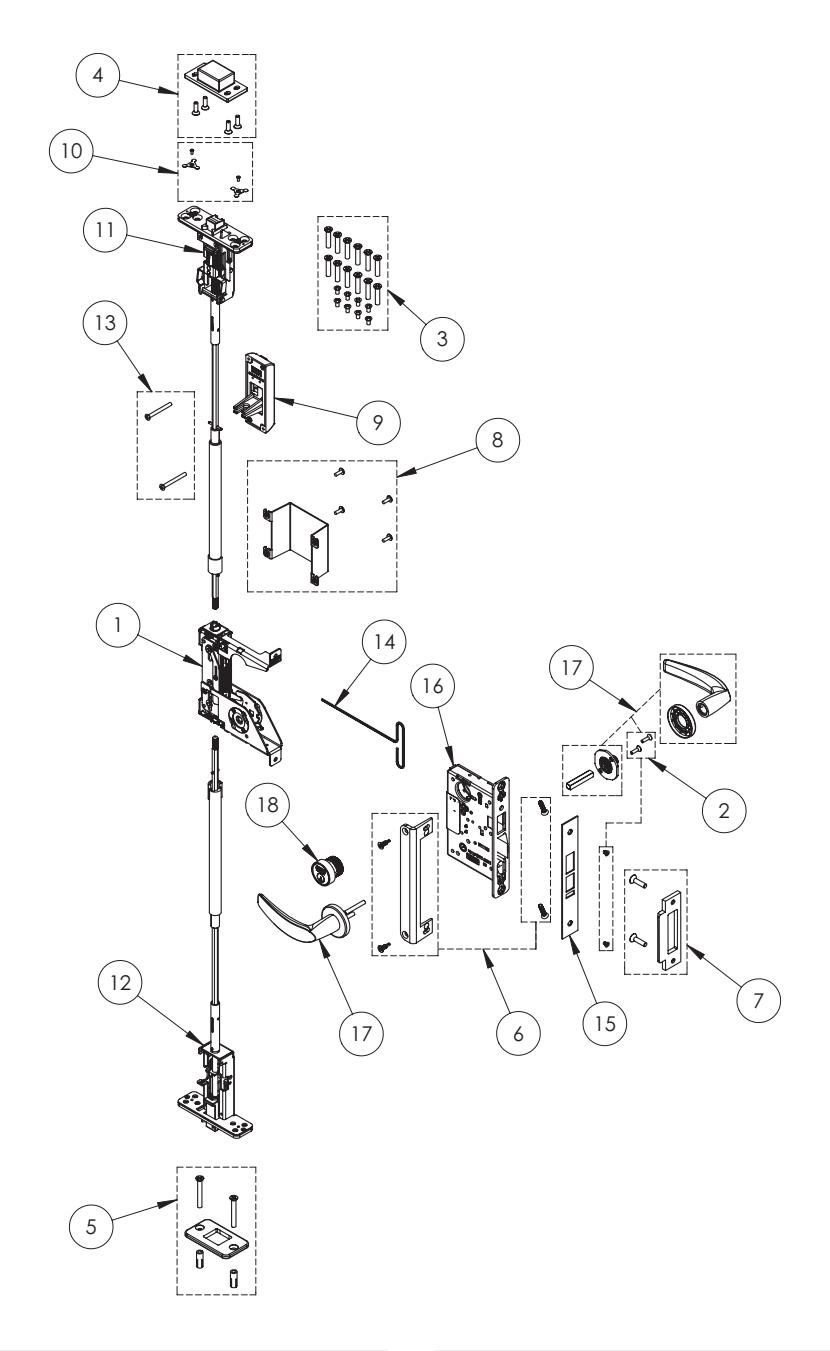

| Item |
Part Number
Description |
Sellable | |
|---|---|---|---|
| 1 | 726F528 | Multipoint Cassette | Yes |
| 2 |
726F558
Trim Mounting Screw Pack |
Yes | |
| 3 | 726F567 |
Top/Bottom Case Mounting Screw
Pack |
|
| 4 | 726F577 | Top Strike Pack | Yes |
| 5 | 726F587 | Bottom Strike Pack | Yes |
| 6 | 726F597 19 |
Mortise Mounting/Reinforcement
Pack |
Yes |
| 7 | 726F607 19 | Center Strike Pack | Yes |
| 726F618 19 | In/Pn Inside Cover Shield Pack | Yes | |
| 8 | 726F628 19 | Harmony Inside Cover Shield Pack | Yes |
| 726F638 19 | Passport Inside Cover Shield Pack | Yes | |
| 9 | 726F64M FIN |
Dogging Indicator * (Includes
Item 13) |
Yes |
| Part Number | Description | Sellable |
|---|---|---|
|
726F658
Screw Retainer Pack |
Yes | |
| 726F668LEN | Top Case And Rod Assembly + | Yes |
| 726F678LEN |
Bottom Case And Rod Assembly
+ |
Yes |
| 726F687 | Dogging Indicator Screw Pack * | Yes |
| 726F698 | T-Wrench, 3/32" Adjustment | Yes |
| 726F718 | T-Wrench, Rod Securing 1/8" | Yes |
|
Consult
Factory |
Mortise Lock/Armour Front | Yes |
|
Consult
Factory |
Mortise Trim | Yes |
|
Consult
Cylinder Factory |
Yes | |
