Storm Resistant

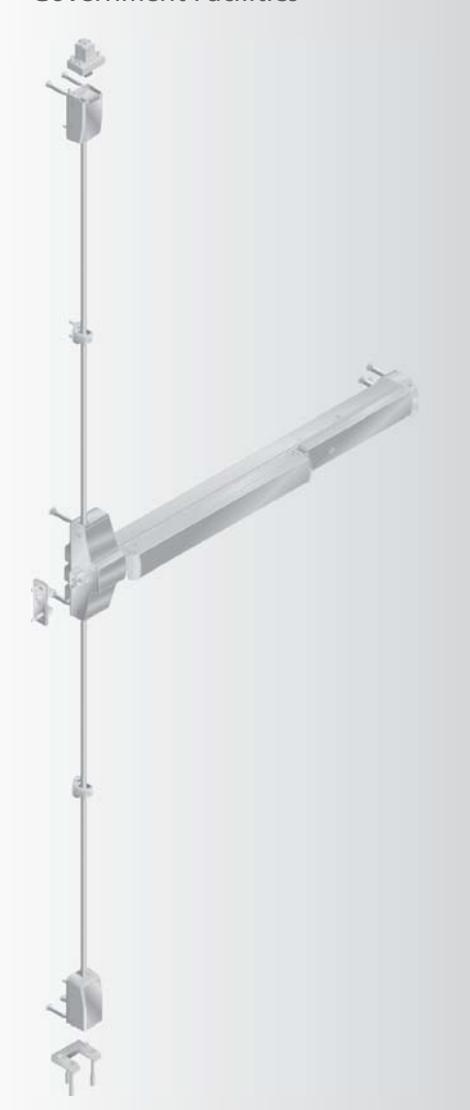

FE5400S Series Multi-Point Exit Device
The Corbin Russwin FE5400S Series is a robust threepoint latching system engineered to help protect lives by securing community shelter entries. Extra-heavy duty steel components secure the door to the frame – at the top, bottom and center latch points – fortifying the opening to withstand extreme wind speeds and flying debris.
FE5400S Series
Multi-Point Exit Device
APPLICATIONS
- s Community Shelters
- s Safe Rooms
- s Corporate Campuses
- s Schools
- s Healthcare Facilities
- s Government Facilities
FEATURES AND BENEFITS
- s Three point auto deadlocking system
- s All three latching points are activated automatically when the door is closed
- s UL Classified in accordance with FEMA P-320 (2014), FEMA P-361 (2015) and ICC 500 (2014)
- s UL Listed for use on panic (UL 305) and fire-rated (UL 10C) exit devices
- s Available with a variety of trim styles and finishes
- s Through-bolts on door for solid attachment
- s Fortified with high tensile alloy Holo-Krome® fasteners
- s Fully Integrated FE5400S Series is part of a complete ASSA ABLOY tornado and hurricane shelter solution utilizing Ceco StormPro® Series and Curries StormPro® Series doors and frames and McKinney® StormPro® hinges
Top Latch 5/8" stainless steel housings, 3/4" projection with 1/8" door gap
Bottom Bolt 7/8" square stainless steel bolt with 5/8" projection

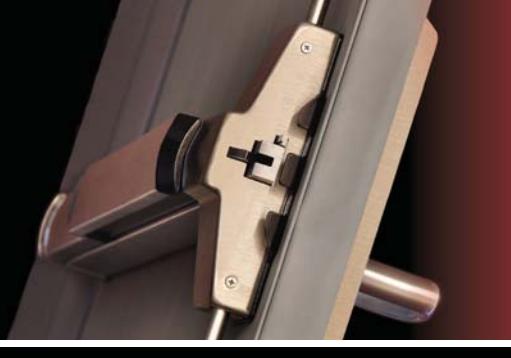

Center Bolt Full 3/4" (19mm) projection, 1" (25mm) wide, positive deadlocking by auxiliary bolt
Center Bolt Roller Strike Surface-mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.
