Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structrual support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Shaded area represents mortise lock cavity from device template.

Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30955 image on page 1

Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30955 diagram on page 1

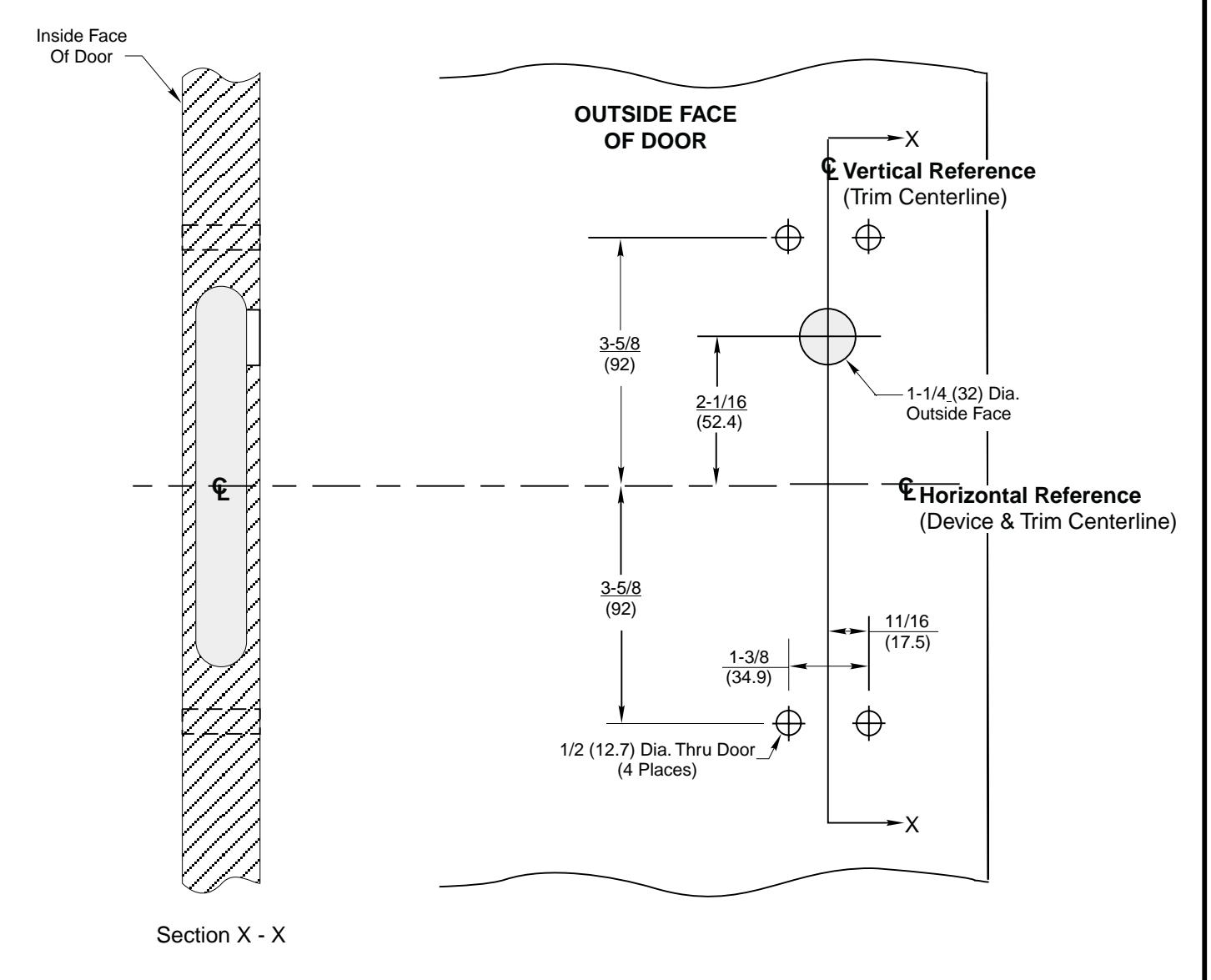

F9M57 Trims Wood or Composite Door Preparation With ED5600 Series Mortise Exit Devices

Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30955 image on page 1

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30955 9-01
