Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structrual support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Shaded area represents mortise lock cavity from device template.

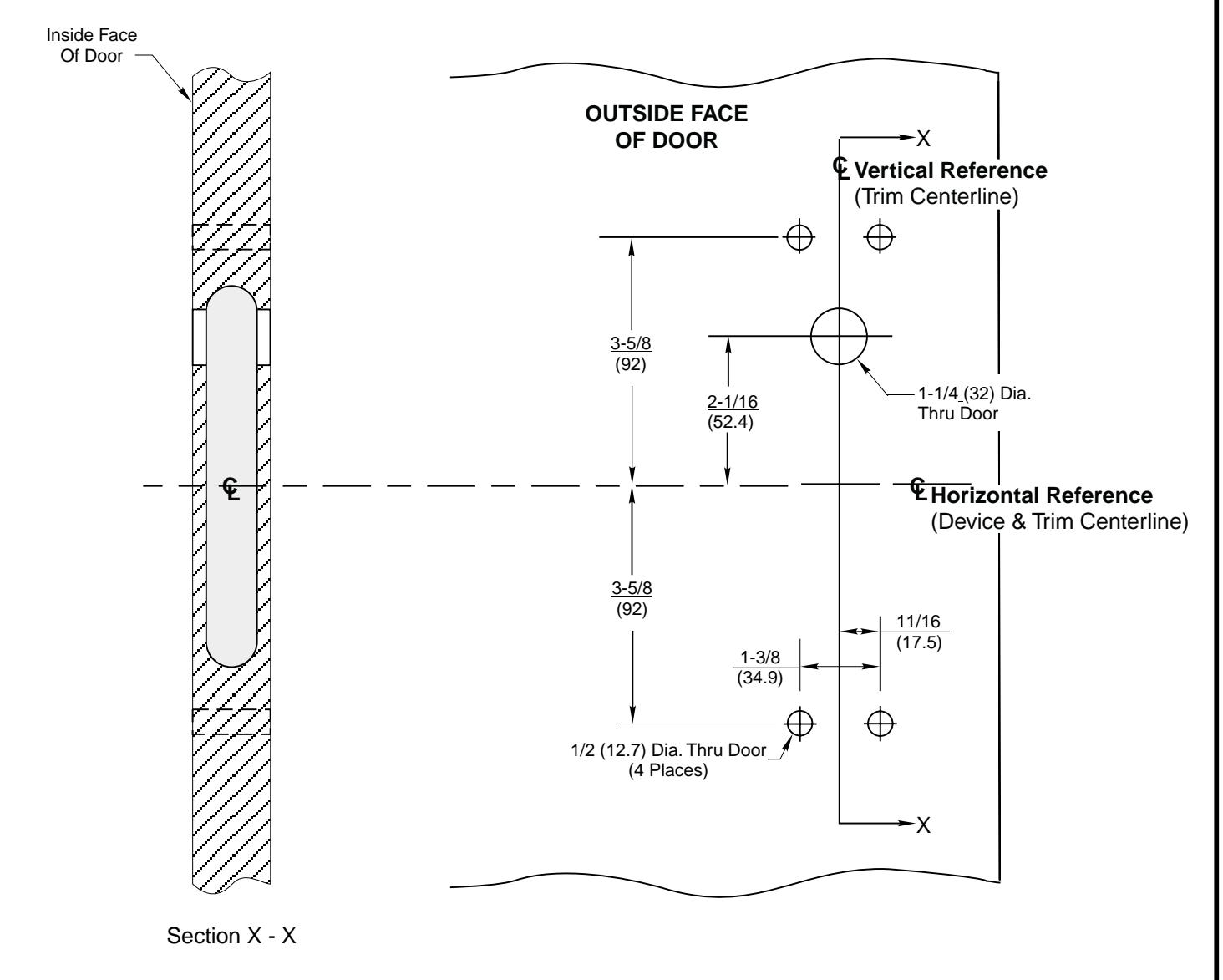

Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Template_T30967 image on

Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Template_T30967 diagram o

F9M57 Trim For Use With IK (INTELLIKEY) Exit Devices Wood or Composite Door Preparation ED5600 Series Mortise Exit Devices

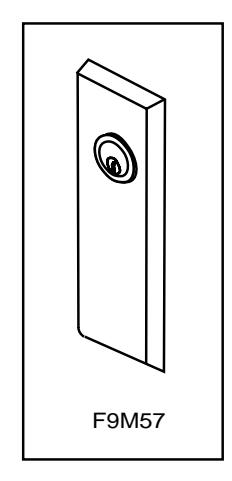

Corbin Russwin F9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Template_T30967 image on

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30967 11-01
