Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

Corbin Russwin F957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Wo…_T30963 imag

Corbin Russwin F957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Wo…_T30963 diag

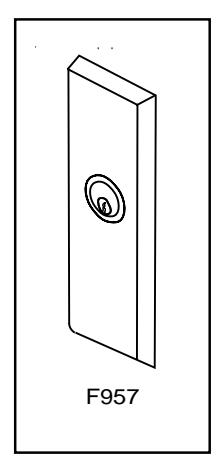

F957 Trim For Use With IK (INTELLIKEY) Exit Devices Wood or Composite Door Preparation ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

Corbin Russwin F957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Wo…_T30963 imag

DO NOT SCALE DRAWING SUPERSEDES

T30963 TEMPLATE NUMBER DATE

11-01
