Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

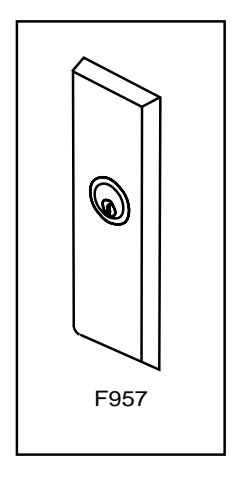

Corbin Russwin F957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Me…_T30962 imag

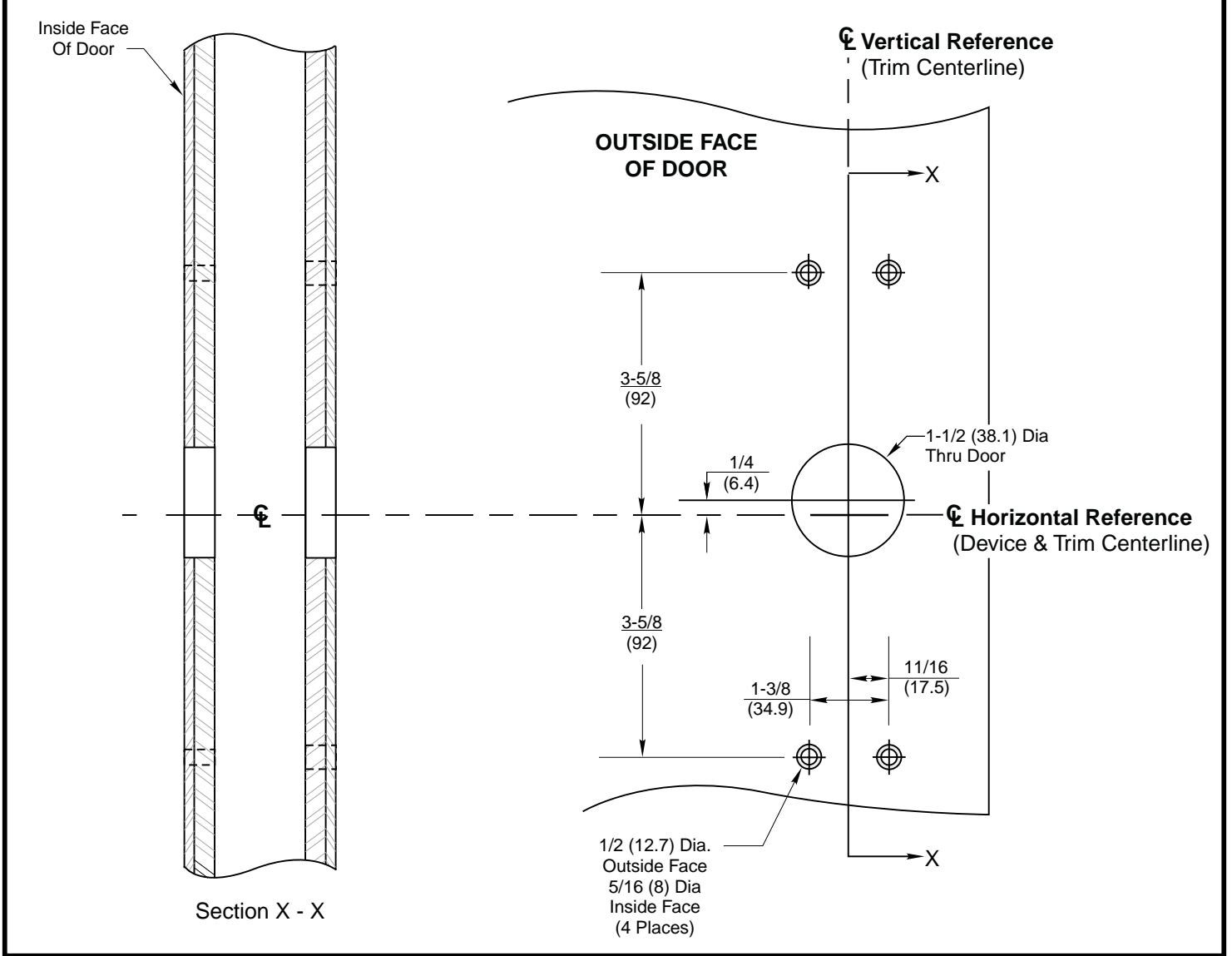

Corbin Russwin F957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Me…_T30962 diag

F957 Trim For Use With IK (INTELLIKEY) Exit Devices Metal Door Preparation ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

®

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE T30962 11-01
