Installation Instructions
- 1. Check box contents. See previous page for components and handing information.

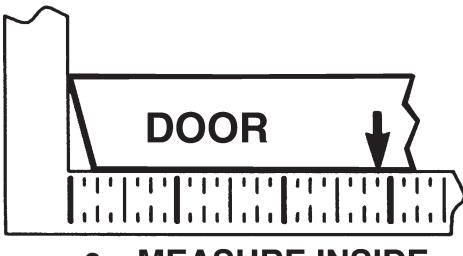

- 2. After marking door inside face for device location (Device Instructions), transfer "Vertical Reference Centerline" from inside to outside door face. Follow steps 2a. and 2b. below.

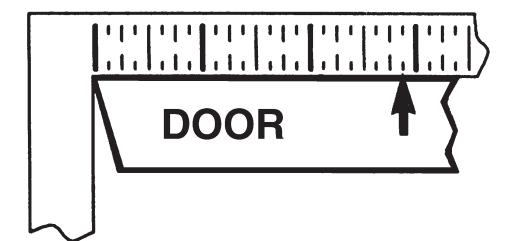

- 3. Transfer "Horizontal Reference Centerline" from inside to outside door face.
- 4. Align trim template and tape to outside door face. CAUTION: Office copiers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the dimensions written on the template to locate the holes on the door (do not use the template as a door marker).
- 5. Spot holes and prepare door for trim.
- 6. Mount trim to door thru holes "B". Fasten, finger tight only, with 2 screws and washers seating on door, as shown in Figure 1.
- 7. Cut trim tailpiece as shown in Figure 2.
- 8. Seat device so that trim tailpiece penetrates cam slot, as shown in Figure 1. Continue as shown in device instructions.
Installation Instructions

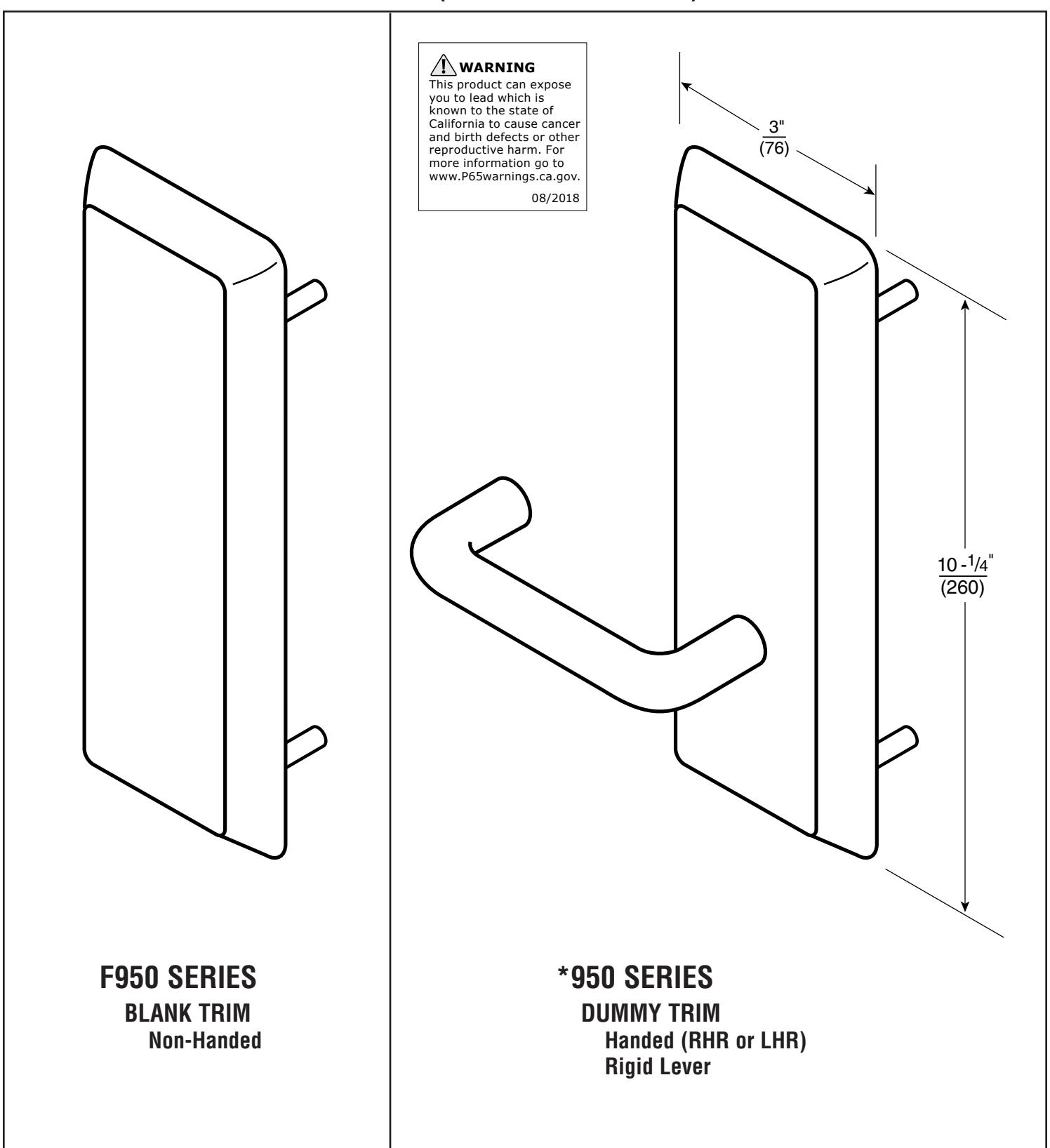

F950 and *950 SERIES HEAVY DUTY TRIM
FM 195 10/18
For use with ED5000 Series Exit Device (Wood and Metal Doors)
* Represents prefix letter(s) for various lever designs.
Outside Door Face VERTICAL REFERENCE 3-5/8 (92) ( Trim) HORIZONTAL REFERENCE (Device and Trim) 2" (51) 3-5/8 (92) See Chart 4 "X" HOLES 2" (51) Dia. 1-1/4 (32) Deep "X"
ASSA ABLOY, the global leader in door opening solutions
Trim Template
HOLES MARKED "X" (4 Places)
METAL DOORS:
Inside Face 5/16" (8) Dia. Outside Face 1/2" (13) Dia.
WOOD DOORS:
1/2" (13) Dia.Thru
Dimensions given in
| TRIM | HOLES |
|---|---|
| F950 | X |
| *950 | A, X |
Corbin 70° Russwin 70°
ASSA ABLOY
In U.S.: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA Phone: 800-543-3658
<u>Technical Product Support:</u> Phone: 888-607-5703
In Canada: ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario, Canada L4K 4T9 Phone: 800-461-3007

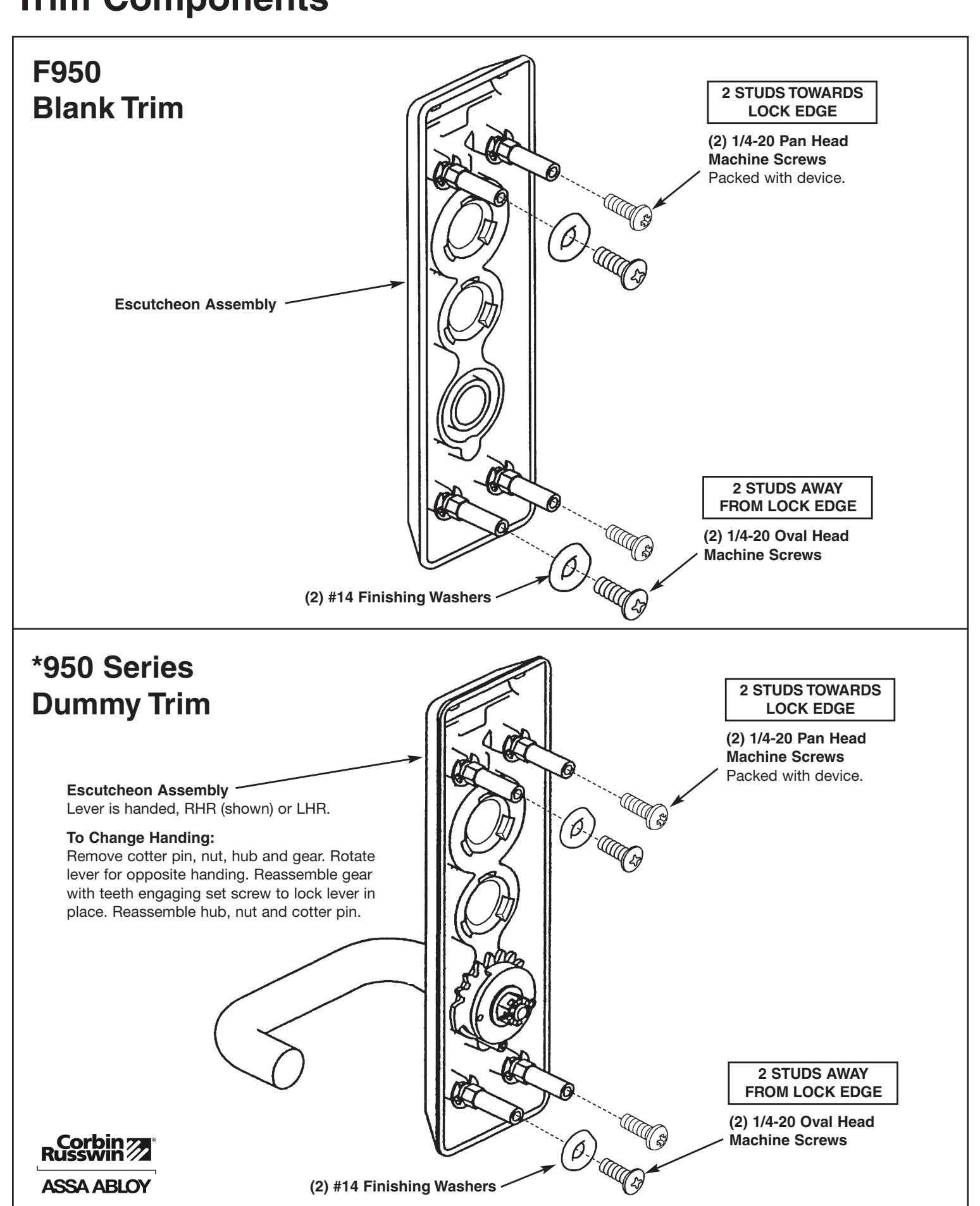

Trim Components
