Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.

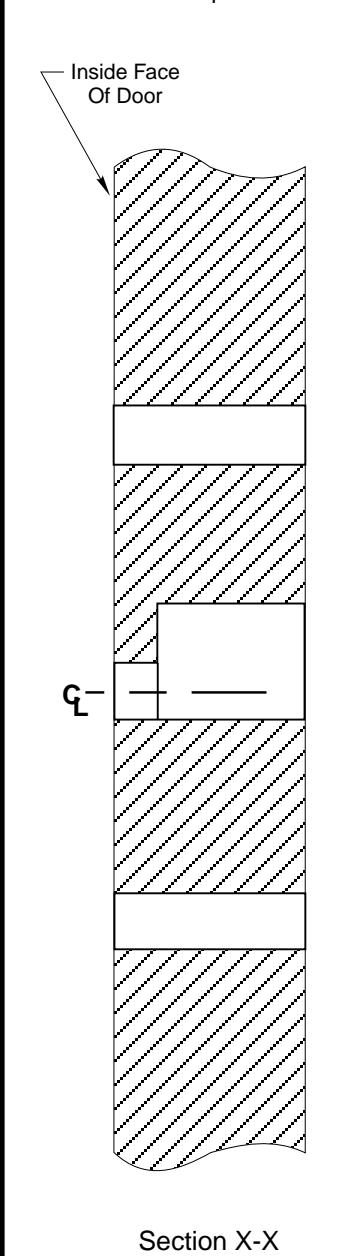

Corbin Russwin F457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Composi…_T30847 imag

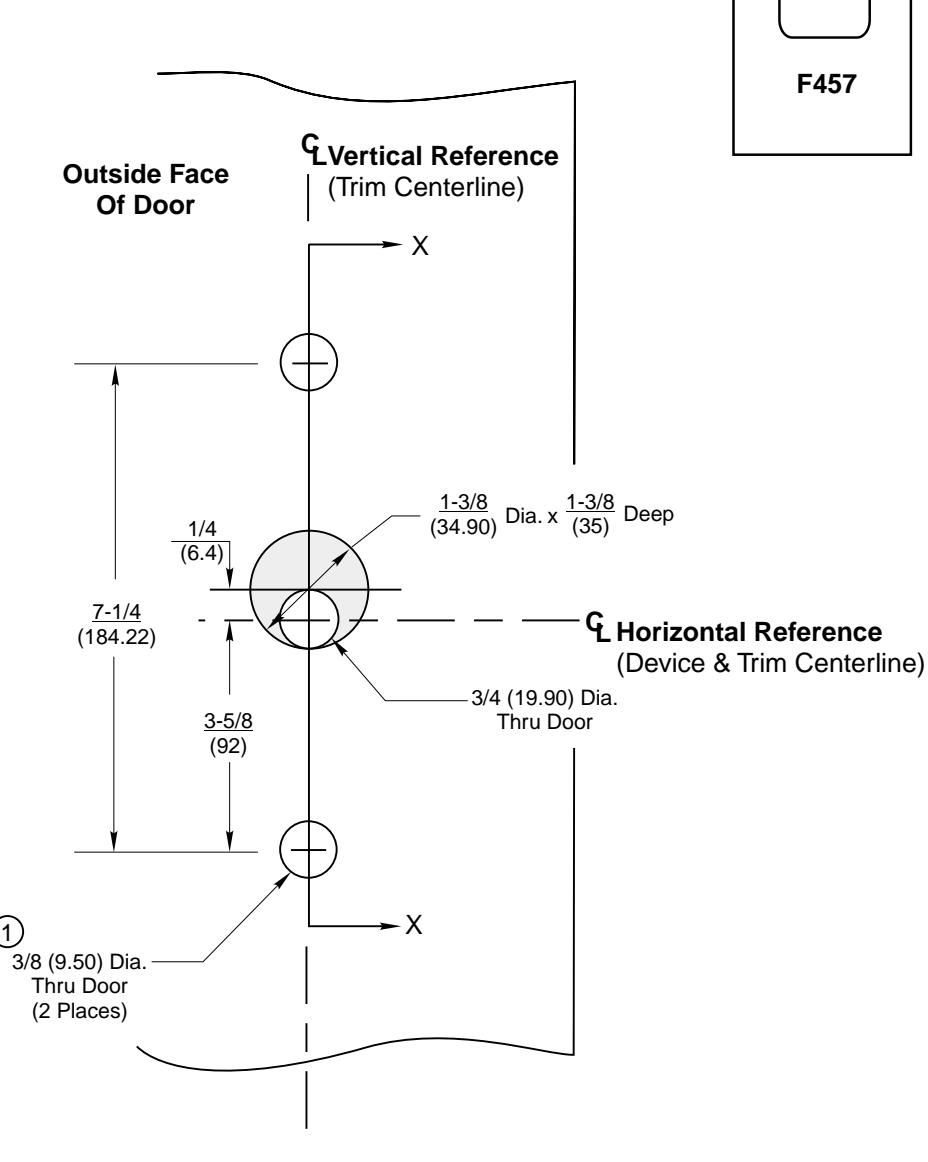

Corbin Russwin F457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Wood or Composi…_T30847 diag

F457 Narrow Escutcheon Trim With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation

Corbin 778 Russwin 778

www.corbinrusswin.com

SUPERSEDES T30847

DO NOT SCALE DRAWING

TEMPLATE NUMBER

T30847-1 | DATE 9-99
