Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

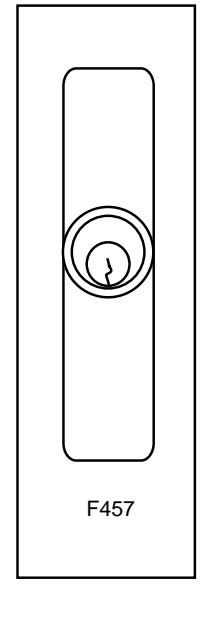

Corbin Russwin F457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Temp…_T30812 imag

Corbin Russwin F457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Temp…_T30812 diag

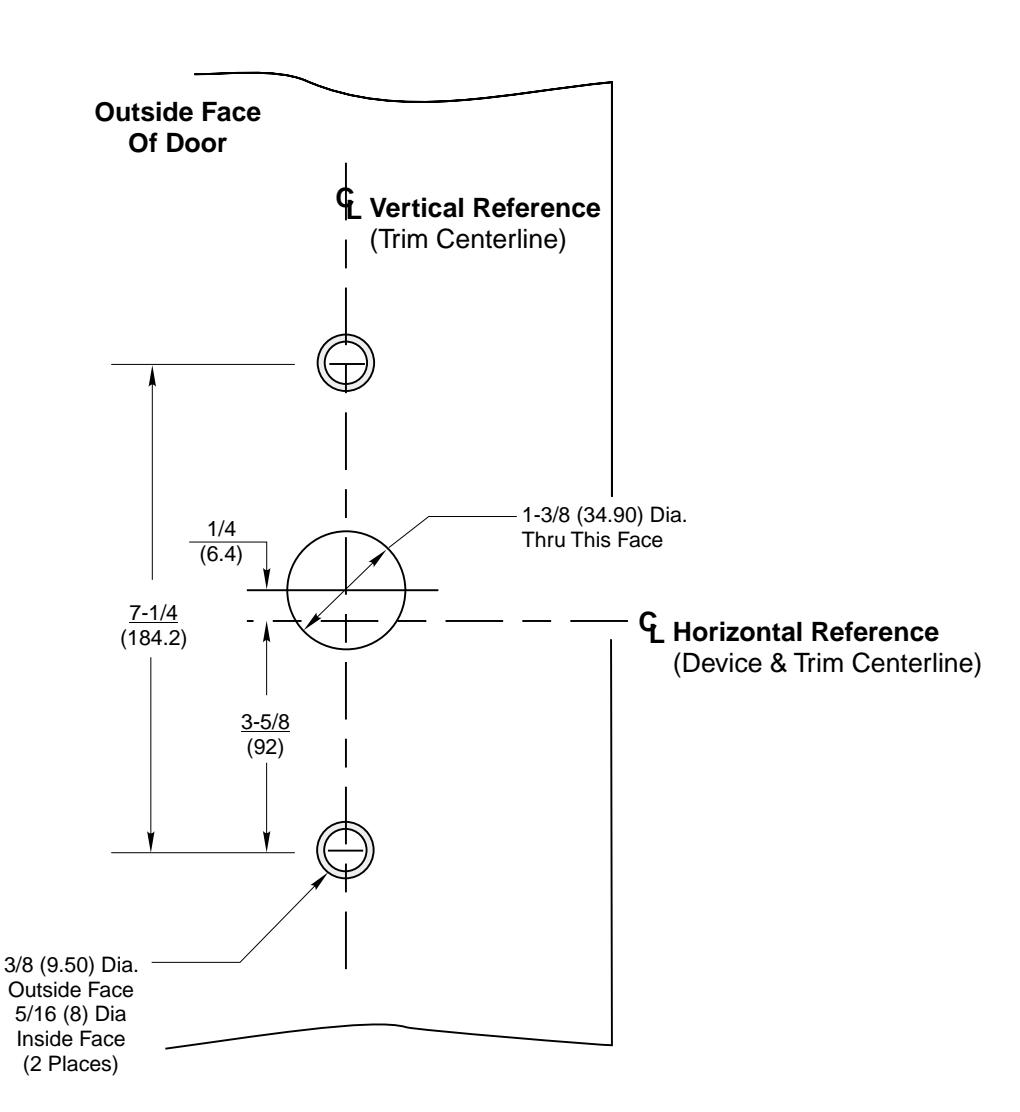

F457 Narrow Escutcheon Trim With ED4200, ED4400, or ED4800 Series Rim and Vertical Rod Exit Devices Metal Door Preparation

Corbin Russwin F457 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Temp…_T30812 imag

www.corbinrusswin.com

SUPERSEDES T30812

DO NOT SCALE DRAWING

TEMPLATE NUMBER

T30812-1

DATE 9-99
