Notes:

1

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

Corbin Russwin F450 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Temp…_T30811 imag

Corbin Russwin F450 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Temp…_T30811 diag

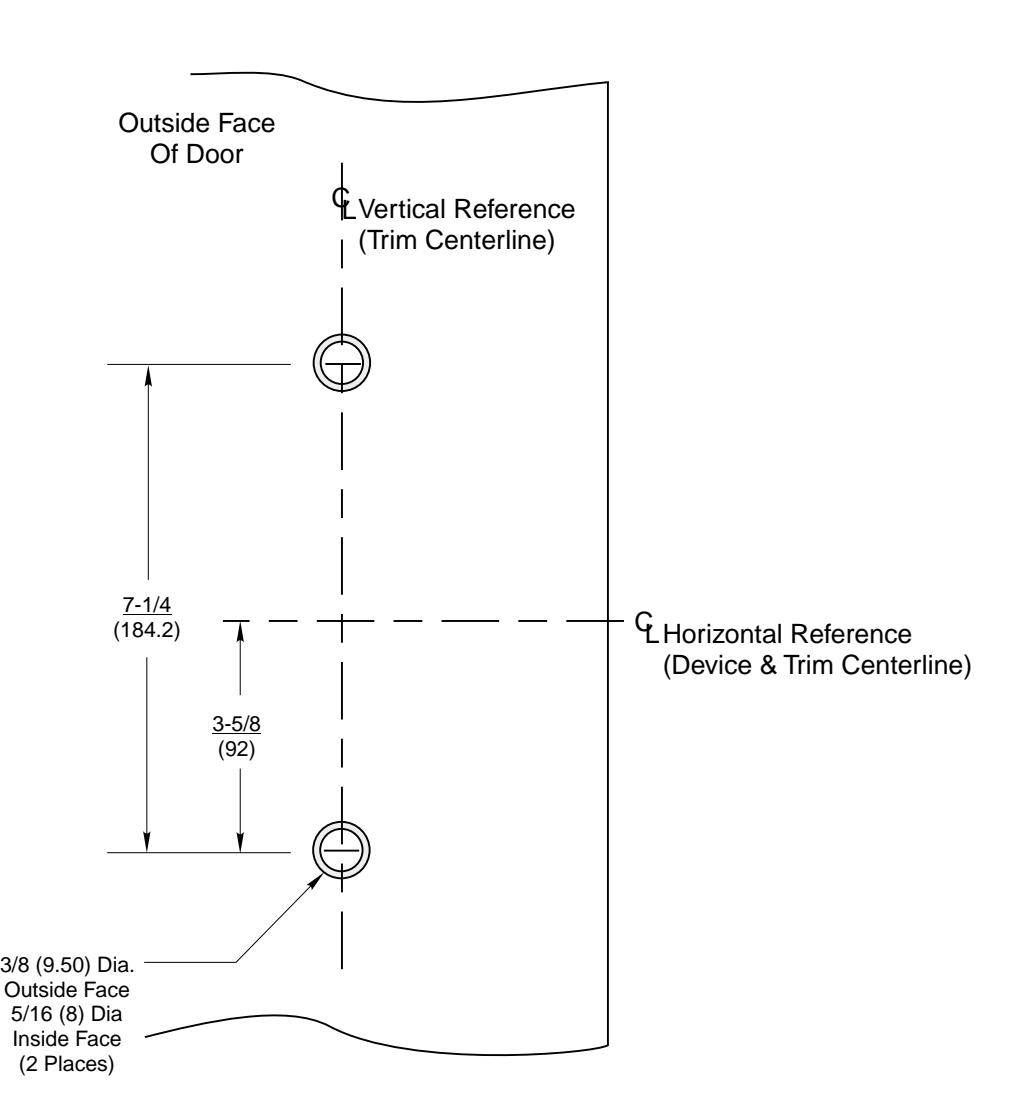

F450 Narrow Escutcheon Trim Metal Door Preparation With ED4200, ED4400, or ED4800 Series Rim and Vertical Rod Exit Devices

Corbin Russwin F450 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR Metal Door Temp…_T30811 imag

www.corbinrusswin.com

T30811

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30811-1 9-99
