Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.

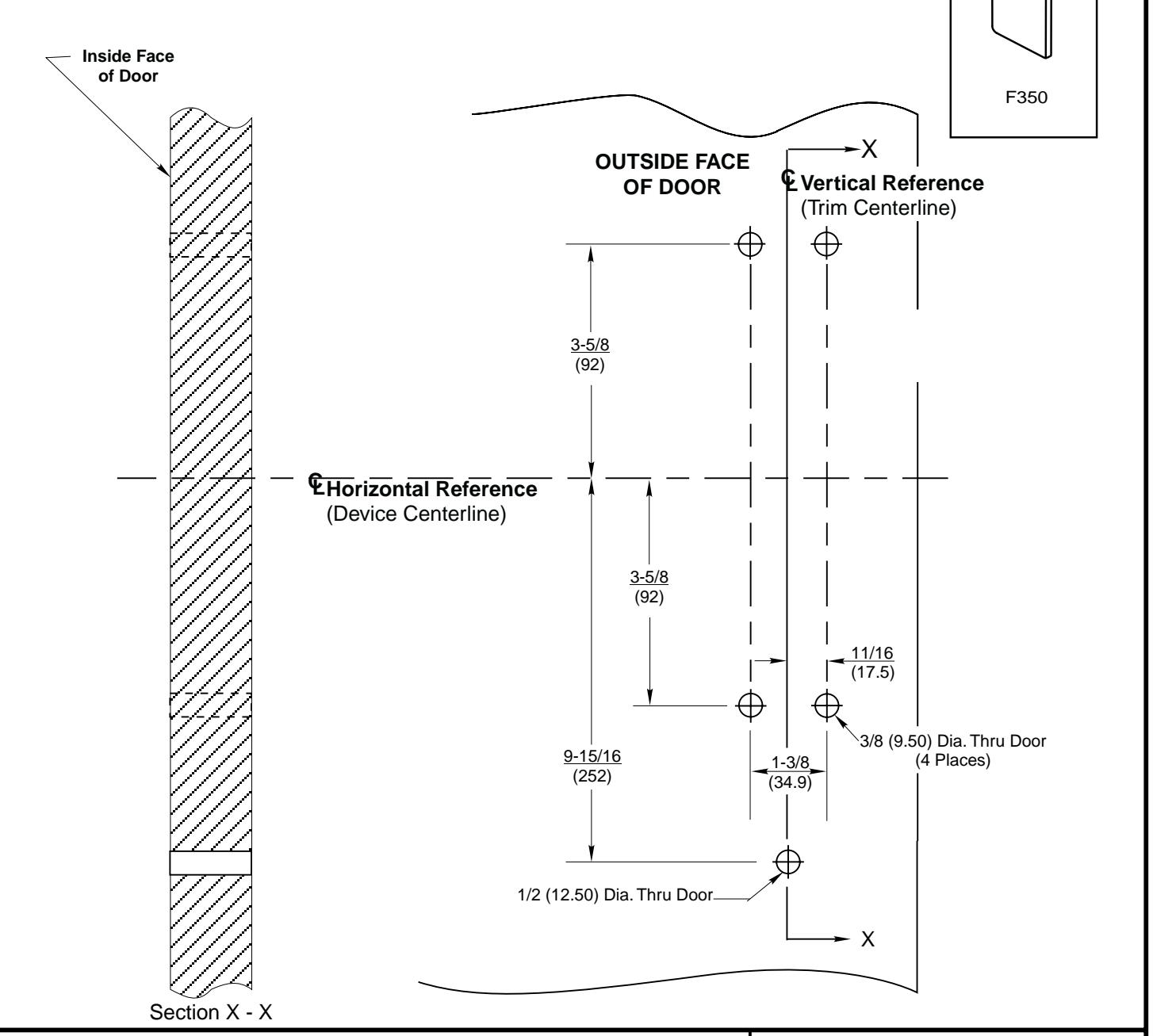

Corbin Russwin F350 Trim for ED5200, ED5400, ED5600, ED5800 Wide Stile Rim, Mortise, CVR, SVR Wood or Composite …_T30858 diag

F350 Trim

Wood or Composite Door Preparation with ED5200, ED5400, ED5600 or ED5800 Series Rim,Mortise and Vertical Rod Exit Devices

Corbin Russwin F350 Trim for ED5200, ED5400, ED5600, ED5800 Wide Stile Rim, Mortise, CVR, SVR Wood or Composite …_T30858 imag

www.corbinrusswin.com

T30858-1 DO NOT SCALE DRAWING SUPERSEDES

T30858-2 8-99 TEMPLATE NUMBER DATE
