Notes:

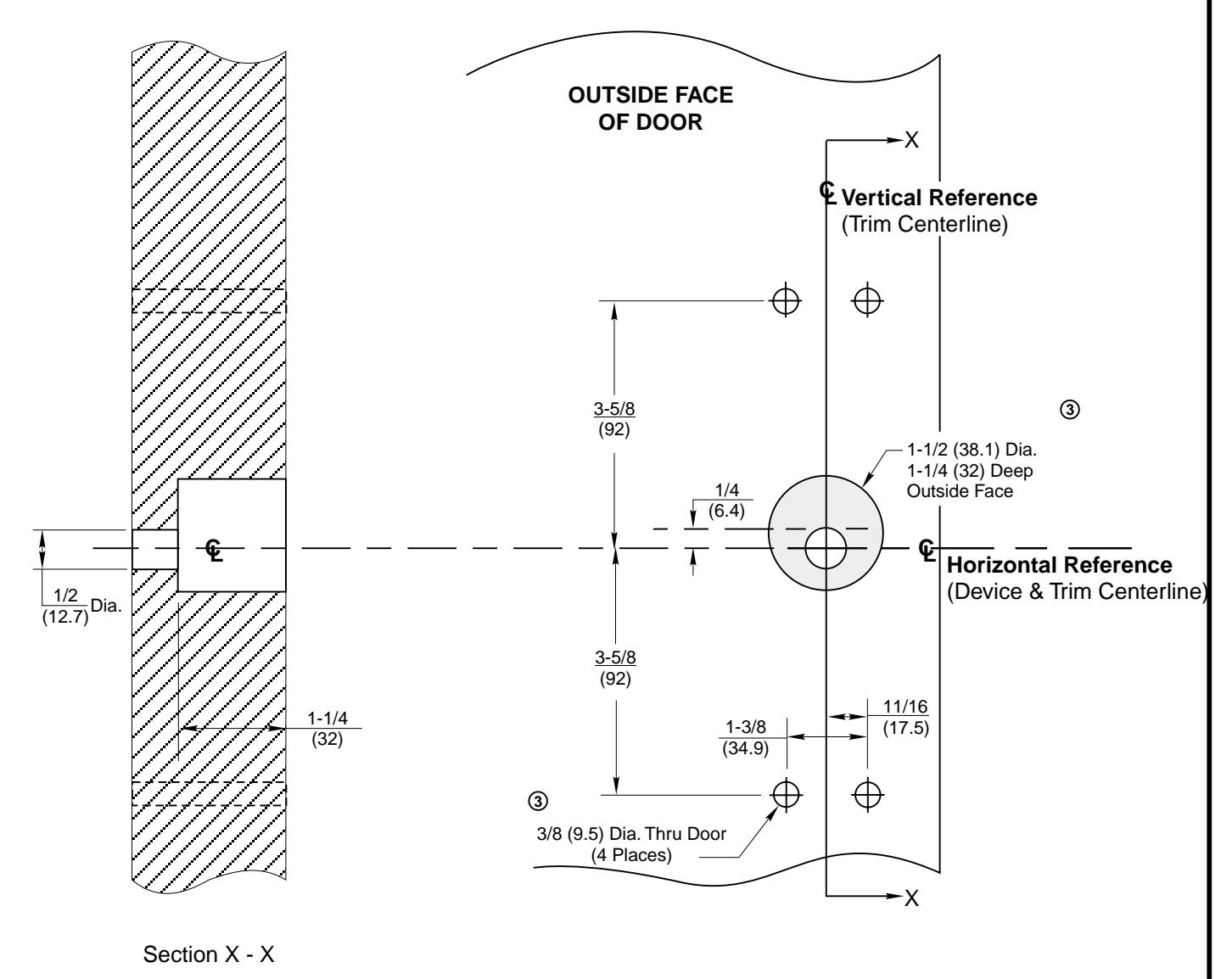

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

Corbin Russwin F257 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door …_T30854 imag

Corbin Russwin F257 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door …_T30854 imag

Corbin Russwin F257 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door …_T30854 diag

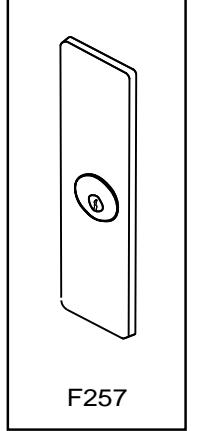

F257 Trim

Wood or Composite Door Preparation With ED5200, ED5400 or ED5800 Series Rim, and Vertical Rod Exit Devices SecureBolt,

Corbin Russwin F257 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door …_T30854 imag

www.corbinrusswin.com

T30854-2

DO NOT SCALE DRAWING SUPERSEDES

T30854-3 TEMPLATE NUMBER DATE

10-01
