Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

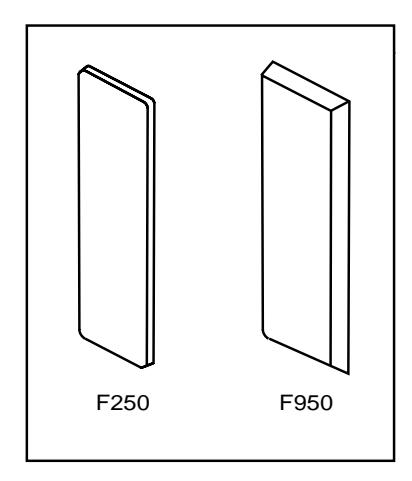

Corbin Russwin F250 and F950 Trim for ED5200, ED5400, ED5800 Wide Stile Mortise, Rim, CVR, SVR Metal Door Templa…_T30817 imag

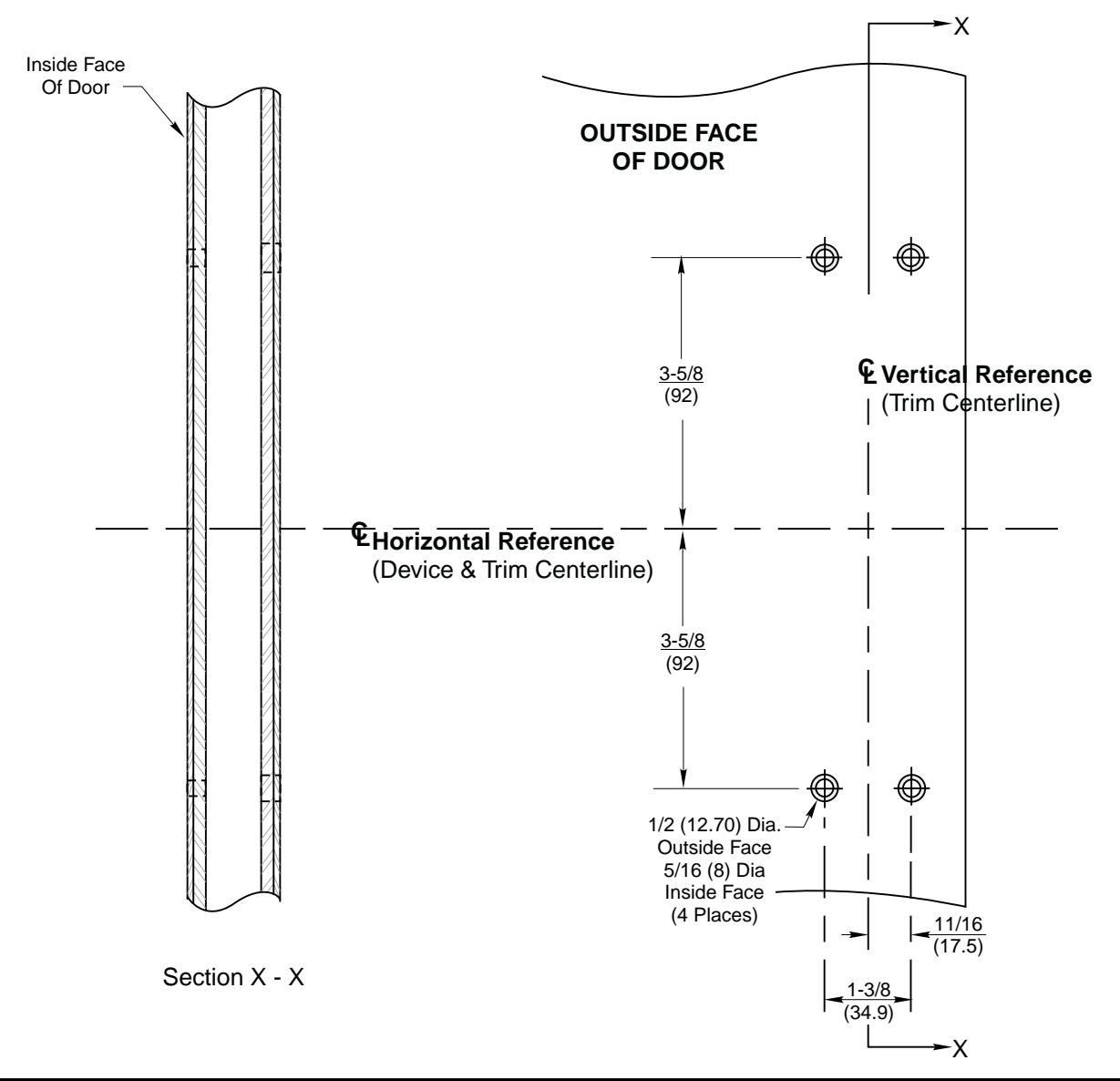

Corbin Russwin F250 and F950 Trim for ED5200, ED5400, ED5800 Wide Stile Mortise, Rim, CVR, SVR Metal Door Templa…_T30817 diag

F250 & F950 Trim Metal Door Preparation With ED5200, ED5400, ED5600 or ED5800 Series Rim, Mortise and Vertical Rod Exit Devices

®

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30817

TEMPLATE NUMBER DATE T30817-1 9-99
