Notes :

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate internal support to maintain door integrity during operation.
  • 7. At specifier's option, stock door with ANSI A115.W2 cutout may be substituted. These doors require a filler plate for the door edge cutout (by others).

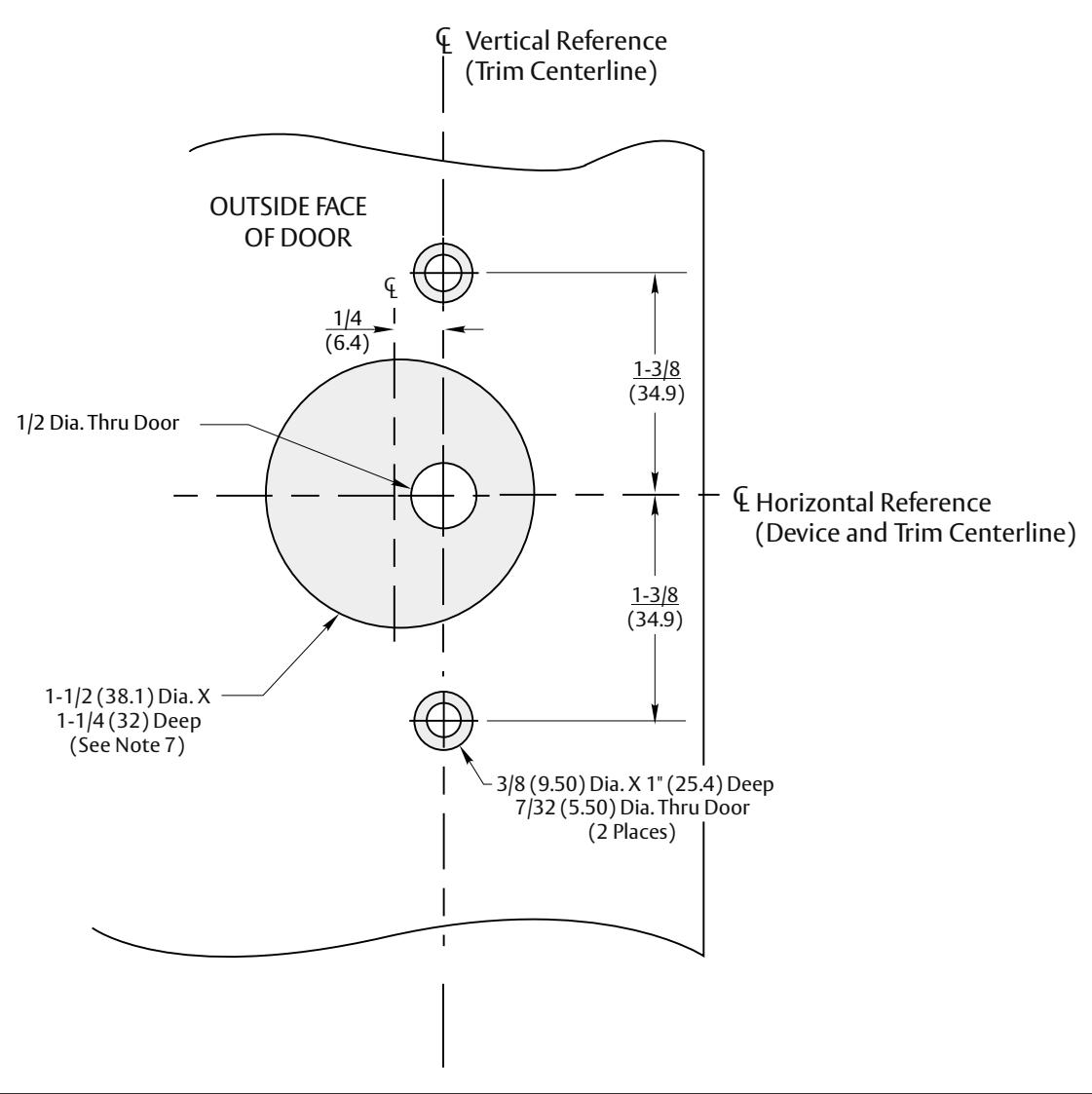

Corbin Russwin F1857ET and P1857ET Trim for ED2000 Series Wide Stile Rim, CVR, SVR Wood or Composite Door Templa…_T31270 imag

Corbin Russwin F1857ET and P1857ET Trim for ED2000 Series Wide Stile Rim, CVR, SVR Wood or Composite Door Templa…_T31270 diag

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

F1857ET and P1857ET Trim With ED2000 Series Rim and Vertical Rod Exit Devices Wood or Composite Door

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE T31270 1 of 1 04/23
