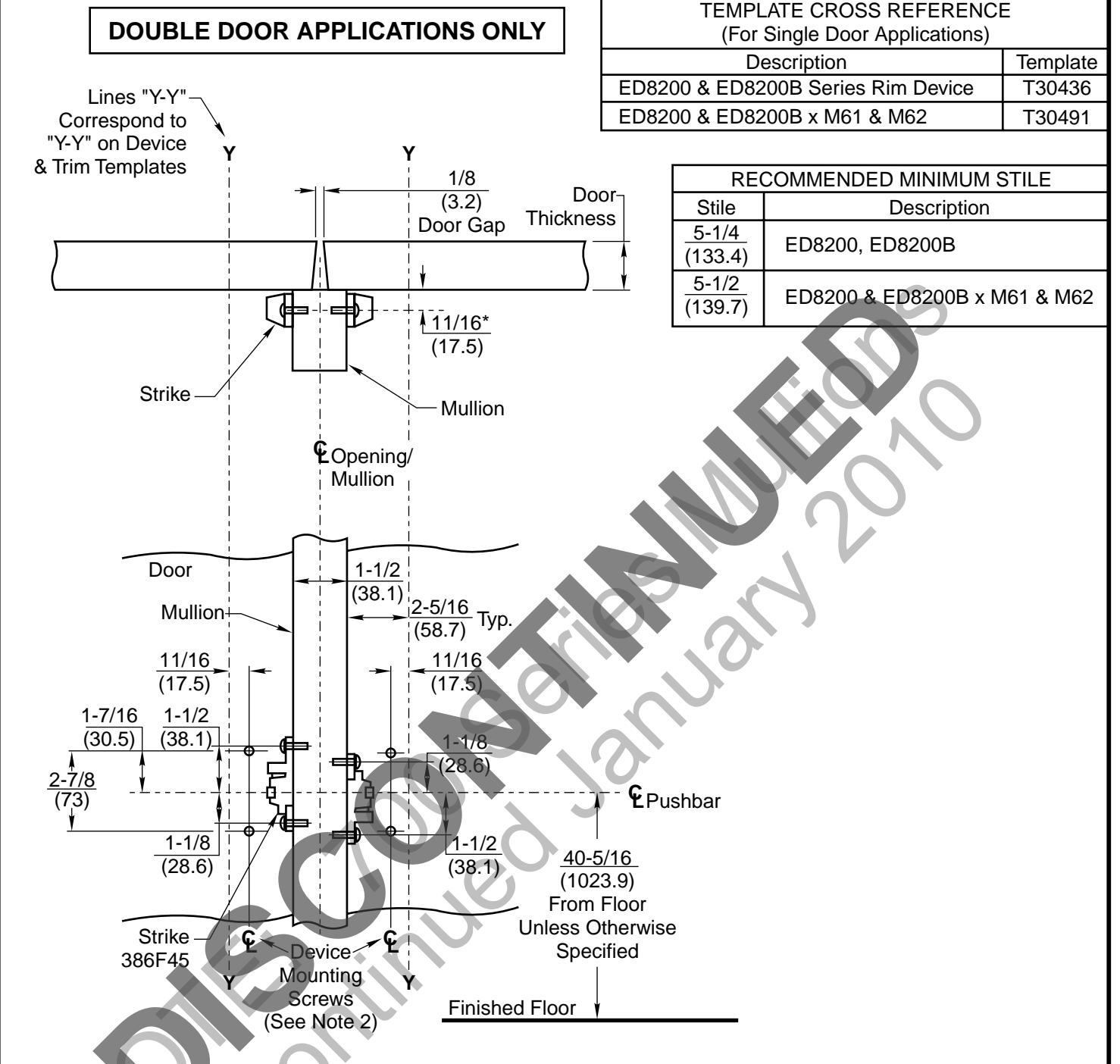

Corbin Russwin ED8200B Series Template_T30940-1 diagram on page 1

NOTES:

  • 1. For 707A and 708A (KM) Mullion Frame Preparation Template, refer to T30882.
  • 2. For other device and strike mounting specifications, refer to appropriate single door application template.
  • *3. Caution: When glass bead shims are used to raise device off surface of door, refer to glass bead shim template T30494 for proper strike mounting dimensions.
  • 4. For preparation of trim, refer to separate template.
  • 5. Dimensions given in inches and (mm).

ED8200B Series Rim Fire Exit Devices Application to Metal, Wood or Composite Doors With 707A and 708A (KM) Mullion

Corbin Russwin ED8200B Series Template_T30940-1 image on page 1

DO NOT SCALE DRAWING

SUPERSEDES T30940 TEMPLATE NUMBER

DATE 10-05

T30940-1
