TEMPLATE CROSS REFEREN (FOR SINGLE DOOR APPLICATIONS)
DESCRIPTION	TEMPLA
200 SERIES RIM DEVICE	17047

DESCRIPTION	TEMPLATE
ED8200 SERIES RIM DEVICE	T30436
ED8200 SERIES × M61 & M62	[3049]

RECOMM	ENDED MINIMUM STILE
STILE	DESCRIPTION
5-1/4 (133.4)	ED8200 SERIES
5-1/2 (139.7)	ED8200 SERIES × M61 & M62

NOTES, FOR 707A (KM), 708A (KM) AND 710 (KM) MULLION FRAME PREPARATION TEMPLATE, REFER TO T30882.

Í-1/2 (38.1)

FINISHED FLOOR

£ PUSHBAR

40-5/16 (1023.9) FROM FLOOR UNLESS OTHERWISE

SPECIFIED

FOR OTHER DEVICE AND STRIKE MOUNTING SPECIFICATIONS, REFER TO APPROPRIATE SINGLE ODOR APPLICATION TEMPLATE.

MOUNTING SCREWS (SEE NOTE 2)

[CAUTION:] WHEN GLASS BEAD SHIMS ARE USED TO RAISE DEVICE OFF SURFACE DF DDDR, REFER TO GLASS BEAD SHIM TEMPLATE 130494 FOR PROPER STRIKE MOUNTING DIMENSIONS.

• FOR PREPARATION OF TRIM, REFER TO SEPARATE TEMPLATE.
• DIMENSIONS GIVEN IN INCHES AND (MM).

(36.5)

1-1/8 (28.6)

STRIKE

2-7/8

(73)

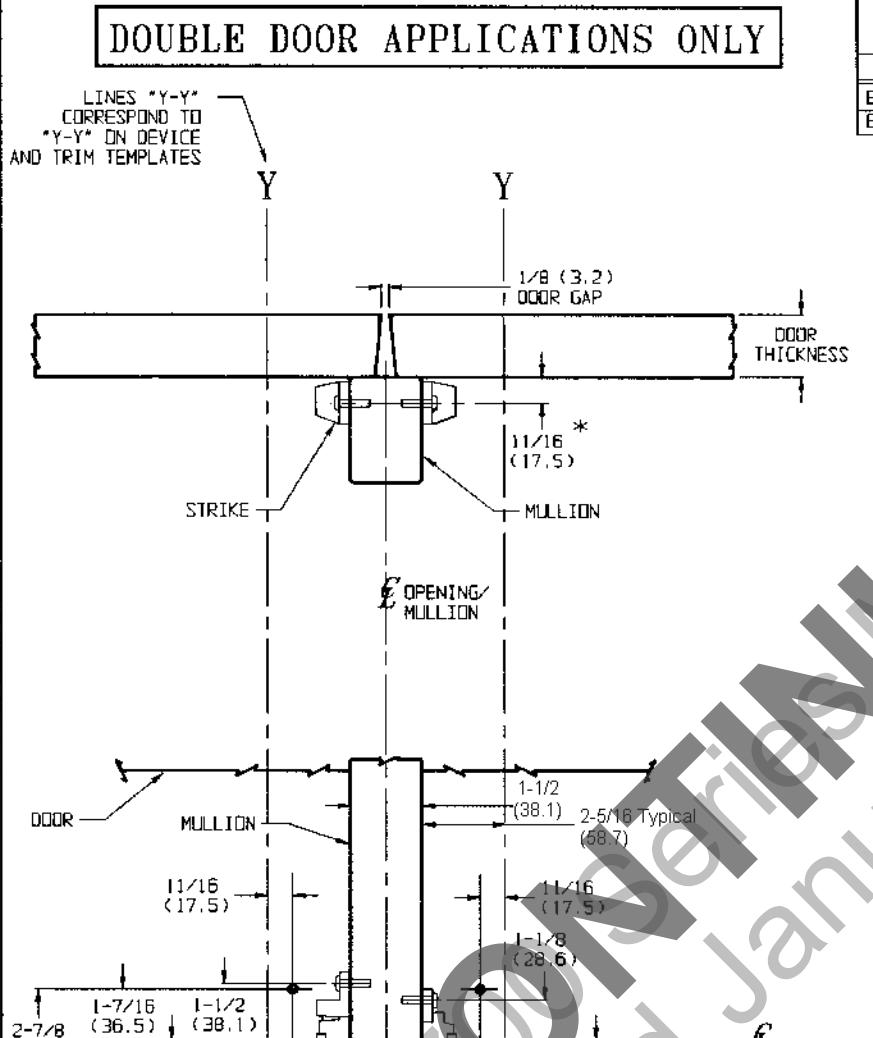

ED8200 Series Rim Panic Exit Devices Application to Metal, Wood, or Composite Doors With 707A (KM), 708A (KM), or 710 (KM) Mullion

www.corbinrusswin.com Do Not Scale Drawing Template Number T30942 9/99
