Installation Instructions

ED8200A Series

For Wood and Metal Doors.

Fire-Rated Rim Exit Device

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

ED8200A Series

Fire-Rated Rim Exit Device

Installation Instructions

TOC	Table of Contents
1	Determine Hand of Door 2
2	Package Contents 3
3	Preparation 3
a	Mark Horizontal Centerline of Device 3
b	Install Trim (If Furnished) 3
c	Cut Pushbar (If Required) 4
4	Installation 5
a	Mount ED8200A Exit Device 5
b	Install Strike 6
c	Install Front Bar Insert, Rear & Front Covers 6
d	Test Pushbar 7

1 Determine Hand of Door

IMPORTANT

• Failure to follow these instructions could affect operation of this product and void warranty.
• Some trim designs are handed when used with this device (see trim instructions).

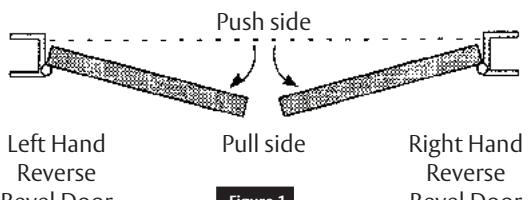

• Exit devices must be securely fastened to properly reinforced doors with fasteners which will not loosen or pull out. Add reinforcement when necessary. Figure 1 Bevel Door Bevel Door
• Before Installing:
  • Be sure exit device is the proper hand for your door. (Figure 1)
  • Use enclosed template to ensure proper operation.

ED8200A Series

Fire-Rated Rim Exit Device

Installation Instructions

2 Package Contents

ED8200A	Qty.	Description
Latch Assembly	6	#12-24 x 7/8" Phillips flat head machine screws
Rear Bracket	2	#12-24 x3/4" Phillips pan head machine screws, and #12 internal washers (wood doors #12 x 1-1/4" Phillips pan head, type A, tapping screws)
Strike, UL	4	#12-24 x 7/8" Phillips flat head machine screws
Front Bar Insert	1	#8-32 x 1" Phillips pan head machine screw
Rear Cover	1	#8-32 x 1" Phillips flat head machine screw with external washers
Front Cover	2	#8-32 x 1/2" Phillips flat head machine screw, type F, with external washers
Non-Reinforced Door	4	#12-24 x 1-21/32" sex nuts

3 Preparation

a Mark Horizontal Centerline of Device

Establish a centerline of device by drawing a line across the door and the door stop, 40-5/16" (1.02 m) above finished floor unless doors have been pre-prepped. (Figure 2)

b Install Trim (If Furnished)

See separate trim installation instructions.

Installation Instructions

3 Preparation (cont.)

c Cut Pushbar (If Required)

Note

If bar does not require cutting, proceed to step 4 a.

• A. Installation of device depends on trim: Note 3/4" (19 mm) minimum restriction. (Figure 3)
• B. Measure and mark bar as shown. (Figure 4)
• C. Fully depress bar and cut off square on mark. (Figure 5)

Fire-Rated Rim Exit Device

Installation Instructions

4 Installation

a Mount ED8200A Exit Device

Installation of device depends on trim:

A. For Reinforced Metal Doors:

• For throughbolted trim in 2-1/8" prep, install device with two (2) fillister head screws (packed with trim) in latch assembly holes marked D . (Figure 6) For all other applications , install device with two (2) pan head machine screws and two (2) internal tooth lock washers in latch assembly holes marked C .
• Use level as shown to ensure device is level. Use rear bracket to spot, drill, and tap two (2) rear bracket mounting holes. Attach rear bracket to door using two (2) pan head machine screws and two (2) lock washers. Drill, tap, and install four (4) flat head machine screws in latch assembly holes marked E . (Figure 6)

B. For Un-Reinforced Doors Only:

• Using device as a template, drill 1/4" (6 mm) top and bottom latch assembly holes marked D though door. Enlarge holes to 3/8" (10 mm) from opposite side of door to clear for sex nuts. Install two (2) flat head machine screws and two (2) sex nuts. Drill and tap two (2) middle latch assembly holes marked E and install two (2) flat head machine screws (if applicable). (Figure 6)

C. For All Other Door Types:

• For throughbolted trim in 2-1/8" prep, install device with two (2) fillister head screws (packed with trim) in latch assembly holes marked D . (Figure 6) For all other applications , install device with two (2) pan head machine screws and two (2) internal tooth lock washers and two (2) sex nuts in latch assembly holes marked C .
• Use level as shown to ensure device is level. Use rear bracket to spot and drill 1/4" (6 mm) holes through door. Enlarge holes to 3/8" (10 mm) from opposite side of door to clear for sex nuts and bolts. Attach rear bracket to door using two (2) pan head machine screws, two (2) lock washers, and two (2) sex nuts. (Figure 6)

Fire-Rated Rim Exit Device

Installation Instructions

4 Installation (cont.)

b Install Strike

Install strike using flat head machine screws in holes marked A . (Figure 7) Adjust strike. Strike is properly adjusted when latch is able to fully project when door is closed. Drill, tap, and install two (2) flat

Tighten all screws.

Strike

c Install Front Bar Insert, Rear & Front Covers

• A. Slide front bar insert over end of front bar.
• B. Assemble 1/2" pan head tapping screw through insert mounting hole.
• C. While holding insert flush against back edge of front bar, tighten screw to bottom of recessed mounting hole.
• D. Install front and rear cover using 1" flat head screw with attached washer. (Figure 8)

ED8200A Series

Fire-Rated Rim Exit Device

Installation Instructions

d Test Pushbar

Latchbolt is retracted by pushbar inside. If latchbolt does not operate properly or does not remain secure, inspect dimensions outlined in steps 3c , 4 a, and 4 c .

Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA Phone: 800-543-3558 Fax: 800-447-6714 www.corbinrusswin.com
