Corbin Russwin ED7200 Narrow Stile Rim Template_T30568

Home
Resource Library
Request a Quote

Original Source Document Full PDF Version

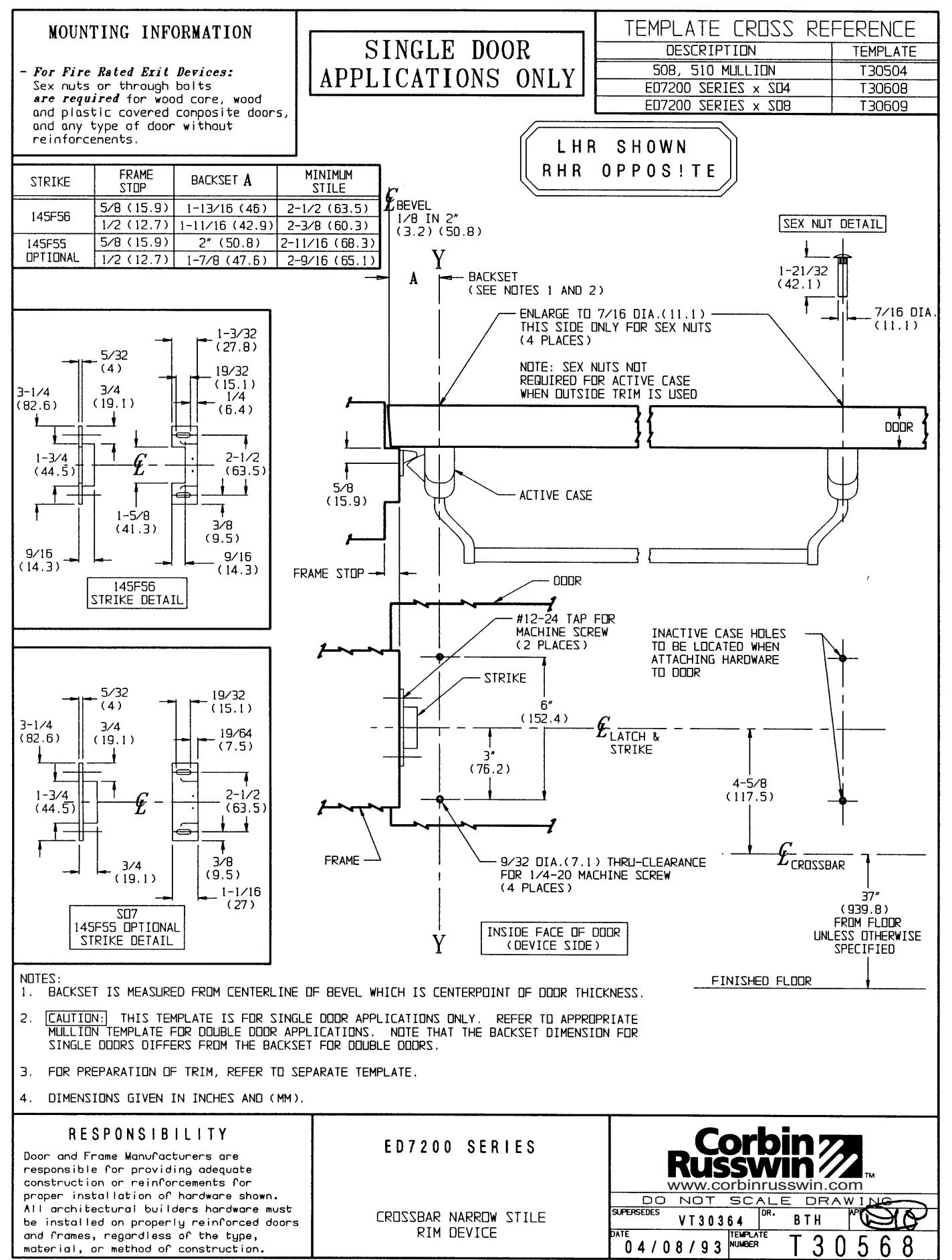

Corbin Russwin ED7200 Narrow Stile Rim Template_T30568 diagram on page 1
