MOUNTING INFORMATION

- For Fire Rated Exit Devices: Sex nuts or through bolts are required for wood core, wood and plastic covered composite doors, and any type of door without reinforcements.

I HR SHOWN RHR OPPOSITE

TEMPLATE CROSS F	REFERENCE
DESCRIPTION	TEMPLATE
ED7200 SERIES RIM DEVICE	T30568

BLADE STOP	BACKSET Å	MINIMUM MINIMUM
* 5/8 (15.9)	1-1/4 (31.8)	1-7/8 (47.6)
1/2 (12.7)	1-1/8 (28.6)	1-3/4 (44.5)

NOTES:

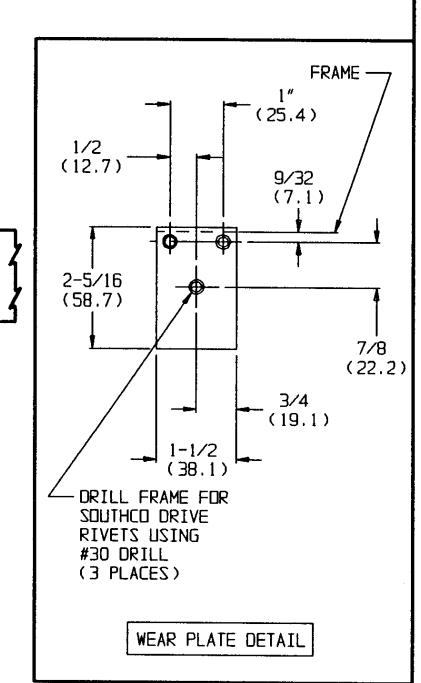

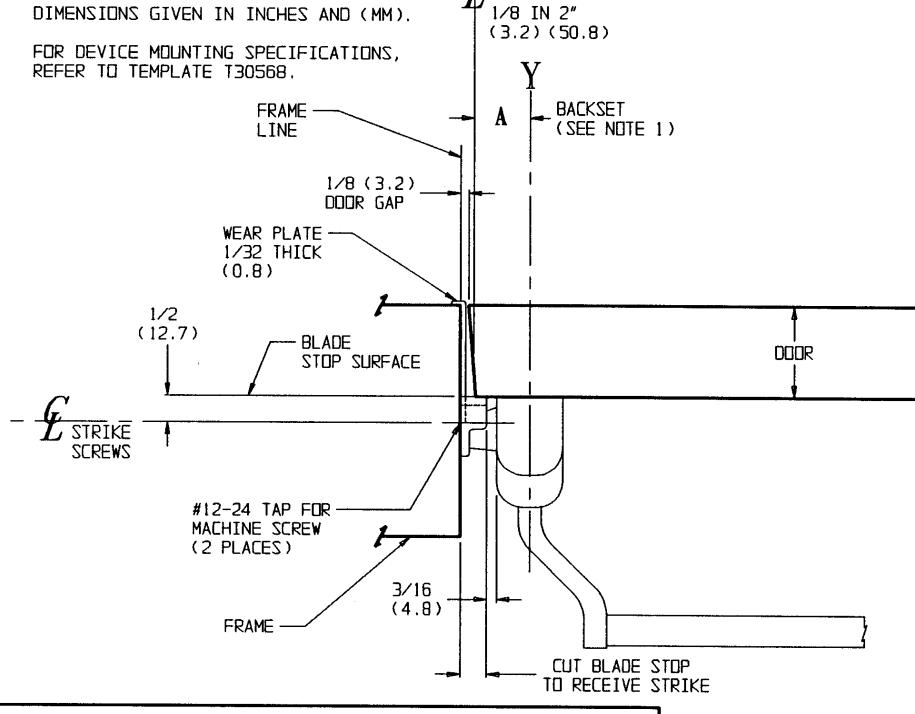

1. BACKSET IS MEASURED FROM CENTERLINE OF BEVEL WHICH IS CENTERPOINT OF DOOR THICKNESS.

2.(*) USE 1/8 (3.2) SHIM UNDER STRIKE FOR 5/8 (15.9) BLADE STOP APPLICATION.

3. DIMENSIONS GIVEN IN INCHES AND (MM).

4. FOR DEVICE MOUNTING SPECIFICATIONS,

BEVEL

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction

ED7200 SERIES BY SO8

CROSSBAR NARROW STILE RIM DEVICE BY BLADE STOP STRIKE

www.corbinrusswin.com DO NOT SCALE DRAWING

WT30107 BTH

0 3 / 2 6 / 9 3 NAMBER 3
