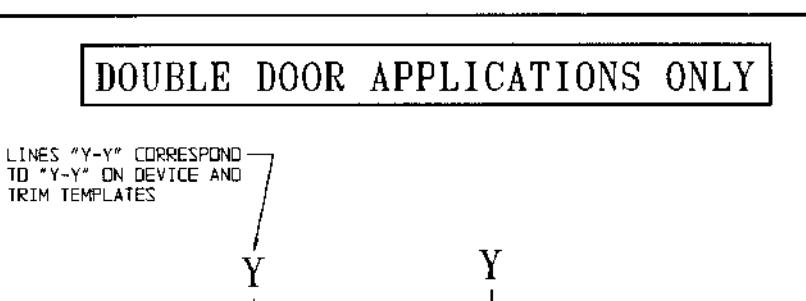

Corbin Russwin ED6200A Series Template_T30944 diagram on page 1

TEMPLATE CROSS REFERENCE (FOR SINGLE DOOR APPLICATIONS) DESCRIPTION TEMPLATE

ED6200A SERIES RIM DEVICE T30508

Notes:

  • 1. For 707A (KM) and 708A (KM) Mullion Frame Preparation Template, Refer to T30882.
  • For other device and strike mounting specifications, refer to single door application template.
  • 3. For preparation of trim, refer to separate template.
  • 4. Dimensions given in inches (mm).
  • 5. ED6200A Series Fire Exit Doors up to 72" High. (Cut 708A (KM) Mullion to suit)

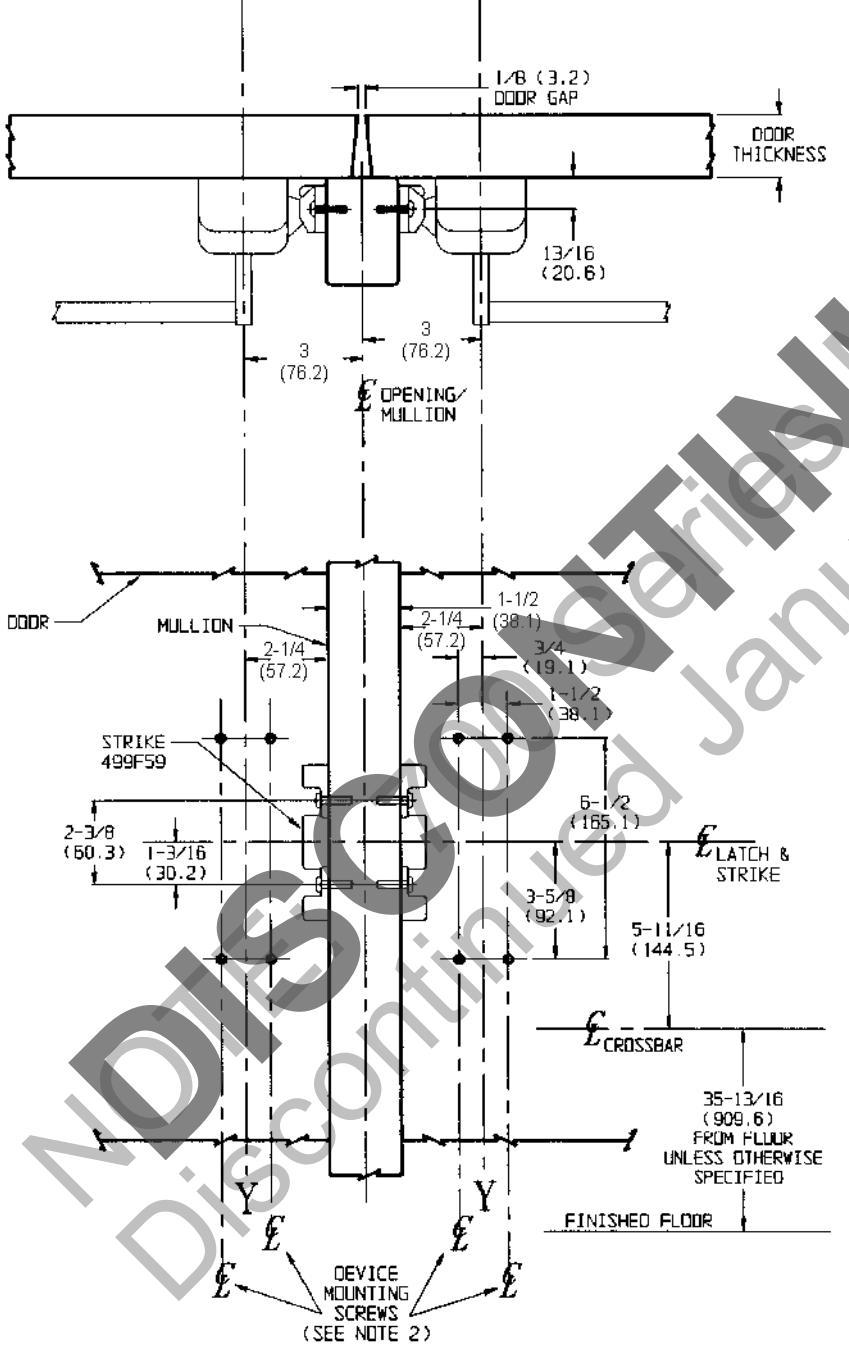

Corbin Russwin ED6200A Series Template_T30944 diagram on page 1

ED6200A Series Rim Fire Exit Devices Application to Metal, Wood or Composite Doors With 707A (KM) or 708A (KM) Mullion

Corbin Russwin ED6200A Series Template_T30944 image on page 1

www.corbinrusswin.com

SUPERSEDES Template Number

Do Not Scale Drawing

T30944

9/99
