TEMPLATE CROSS REFERENCE (FOR SINGLE DOOR APPLICATIONS)
DESCRIPTION	TEMPLATE
6D6200 SERIES RIM DEVICE	130566

Notes:

• 1. For 707A (KM), 708A (KM) or 710 (KM) mullion frame preparation template, refer to T30882.
• 2. For other device and strike mounting specifications, refer to appropriate single door application template.
• 3. For preparation of trim, refer to separate template.
• 4. Dimensions given in inches (mm).

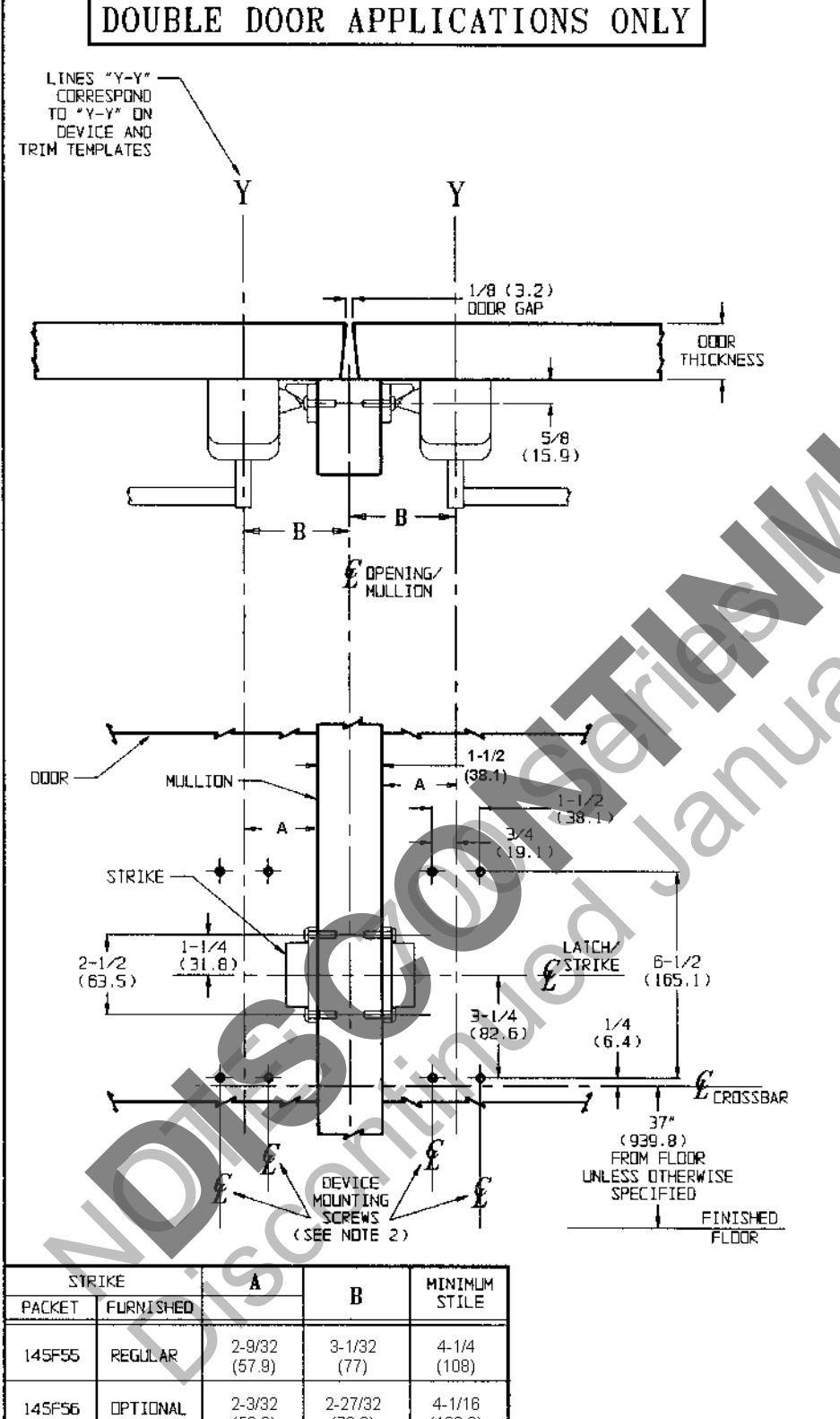

ED6200 Series Rim Panic Exit Devices Application to Metal, Wood or Composite Doors With 707A (KM), 708A (KM), or 710 (KM) Mullions

(103.2)

(72.2)

(53.2)

202

www.corbinrusswin.com

SUPERSEDES Do Not Scale Drawing Template Number T30943

9/99
