Corbin Russwin ED5860(B) M55 Wide Stile CVR Less Bottom Rod Wood Door and Metal Frame Template

Original Source Document Full PDF Version

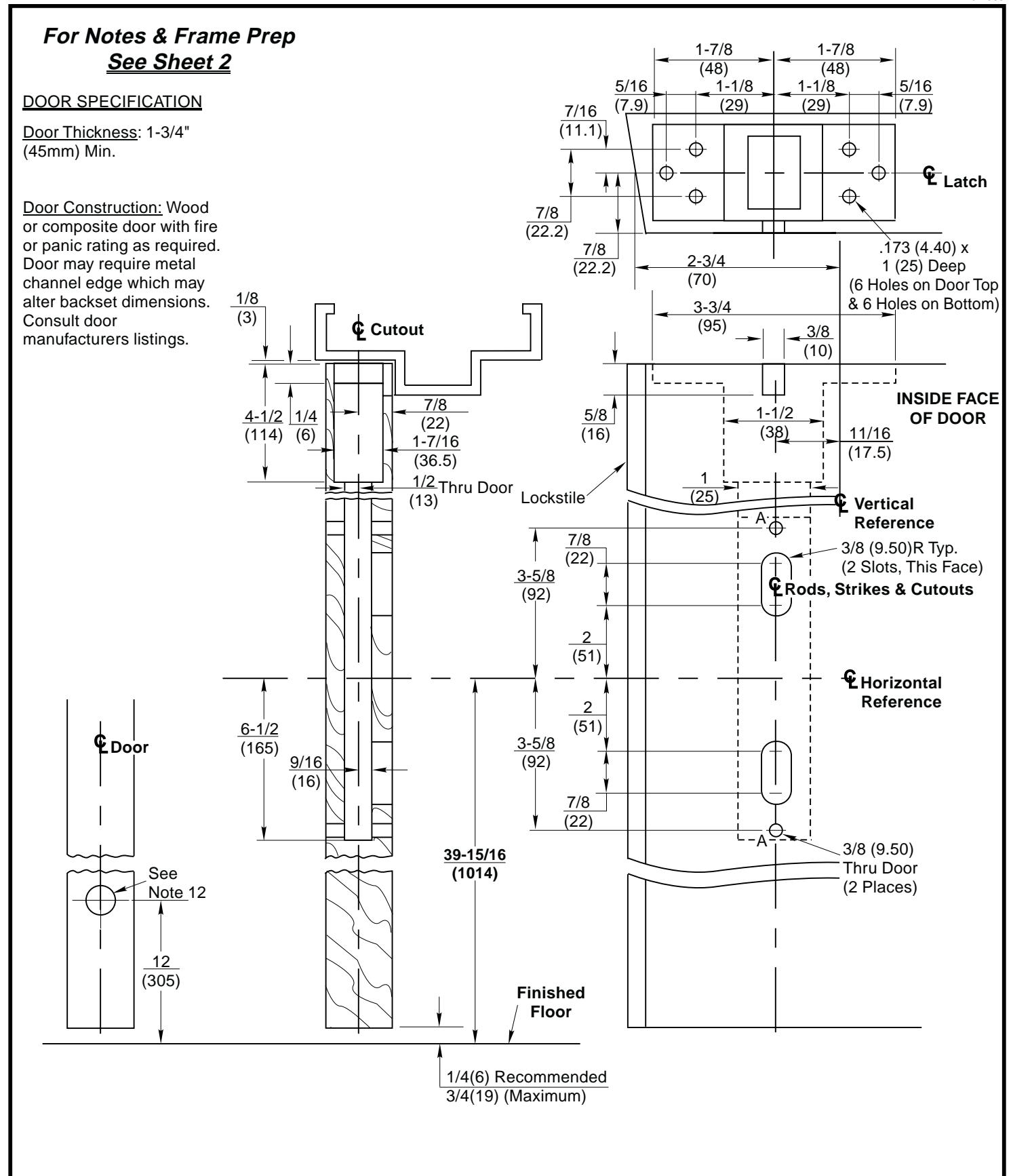

Corbin Russwin ED5860(B) M55 Wide Stile CVR Less Bottom Rod Wood Door and Metal Frame Template_T30908 diagram on page 1

ED5860 M55 & ED5860B M55 Series Concealed Vertical Rod Exit Devices

Application for Wood Door & Metal Frame Less Bottom Rod (M55 Option)

Corbin 28° Www.corbinrusswin.com

WWW.corbini.doowini.com

SUPERSEDES T30908-3 DO NOT SCALE DRAWING TEMPLATE NO. T30908-4 SHEET 1 of 2 DATE 1-02

681F77 Top Strike Preparation (See Note 6) Dust Cover Reinforcements (By Frame Manufacturer) 1(25)min. -By Frame Manufacturer 1(25) Min. (30.2)3/32 RHR Door <u>3/4</u> (2.4)LHR Door (19) Inside Face Inside Face 1-1/2 (38.1) Latch & Latch & Strike Strike L VERTICAL REFERENCE 11/16 RHR Door Bevel C (17.5)(or square edge of door) LHR Door Bevel (or square edge of door) For Door Prep See Sheet 1 (4) 10-32 TAP (2 Places) 2-1/16 2-1/16 (52)(52)1-5/8 CUTOUT (41.3)(51)15/16(24) (Note 8) Ф Latch, Strike & Plane of Section Shown Above

1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. Preparation is typical for both hands.
4. Minimum door stile width: 4-1/2 (114).
5. Prepare mounting holes when installing the device.
6. Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view.
Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.

Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.
Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both stiles.
10. For outside trim preparation see appropriate trim template.
11. For electrical devices (suffixes M91, M92, M93, M94, M97) also see template T30890.
12. For labeled door pairs only. Active leaf: 5/8 (16) Dia. x 1-1/4 (32) Deep Inactive leaf: 9/16 (14) Dia. x 1-5/8 (41) Deep
13. Door structure as required for heat activated interlocking bolt. 1-1/2 square 16 ga. plate recommended.

Application for Wood Door & Metal Frame Less Bottom Rod (M55 Option)

Corbin Russwin ED5860(B) M55 Wide Stile CVR Less Bottom Rod Wood Door and Metal Frame Template_T30908 image on page 2

www.corbinrusswin.com

SUPERSEDES T30908-3 DO NOT SCALE DRAWING

$^{10.}$ T30908-4 $^{|SHEET}$ 2 of 2 $^{|DATE}$ 1-02
