Corbin Russwin ED5800(A) Wide Stile CVR Metal Door and Frame Template

Original Source Document Full PDF Version

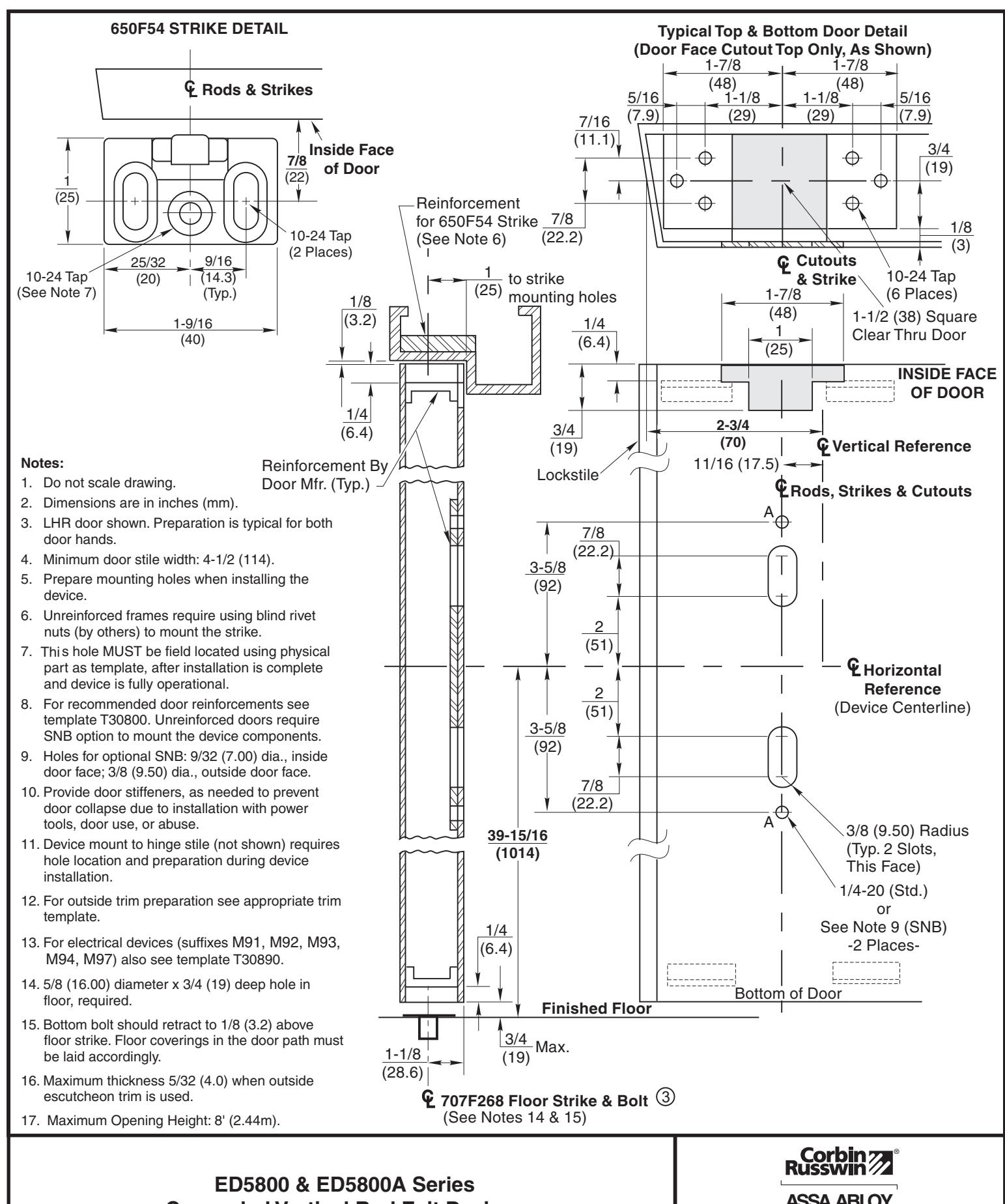

Corbin Russwin ED5800(A) Wide Stile CVR Metal Door and Frame Template_T30806 diagram on page 1

Concealed Vertical Rod Exit Devices Standard Application for Metal Door and Frame

ASSA ABLOY www.corbinrusswin.com SUPERSEDES 730806-2 DO NOT SCALE DRAWING TEMPLATE NUMBER 730806-3 DATE 05-09
