Notes:

• 1. Minumum Stile Width 4-1/2(114).
• 2. For door reinforcements see template T30800. Unreinforced doors require optional SNB to mount devices.
• Unless otherwise specified, door preparation and dimensional tolerences must conform to ANSI A115.1. Lock support required as shown.
• 4. For outside trim preparation see appropriate trim template.
• 5. Prepare mounting holes when installing the device.
• 6. LHR active pair shown. Preparation is typical for both door hands.
• 7. Dimensions are in inches (mm). Do not scale drawing.
• 8. Holes for optional SNB: 9/32(7.00)Dia. inside door face; 3/8(9.50) Dia. outside door face.
• 9. Dimensions given about a centerline are symmetrical.

• Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
• For Electrical device suffixes "-Safe", "-Secure", M91, or M93: 1/2 (12.70) diameter, this face, plus prep shown on template T30890.
• 12. For electrical device suffixes M92, M94 or M97 also see template
• 13. Latchbolt centerline is 23/32 (18.2) below & Auxbolt centerline is 3/16 (4.8) above the centerline of lockfront.

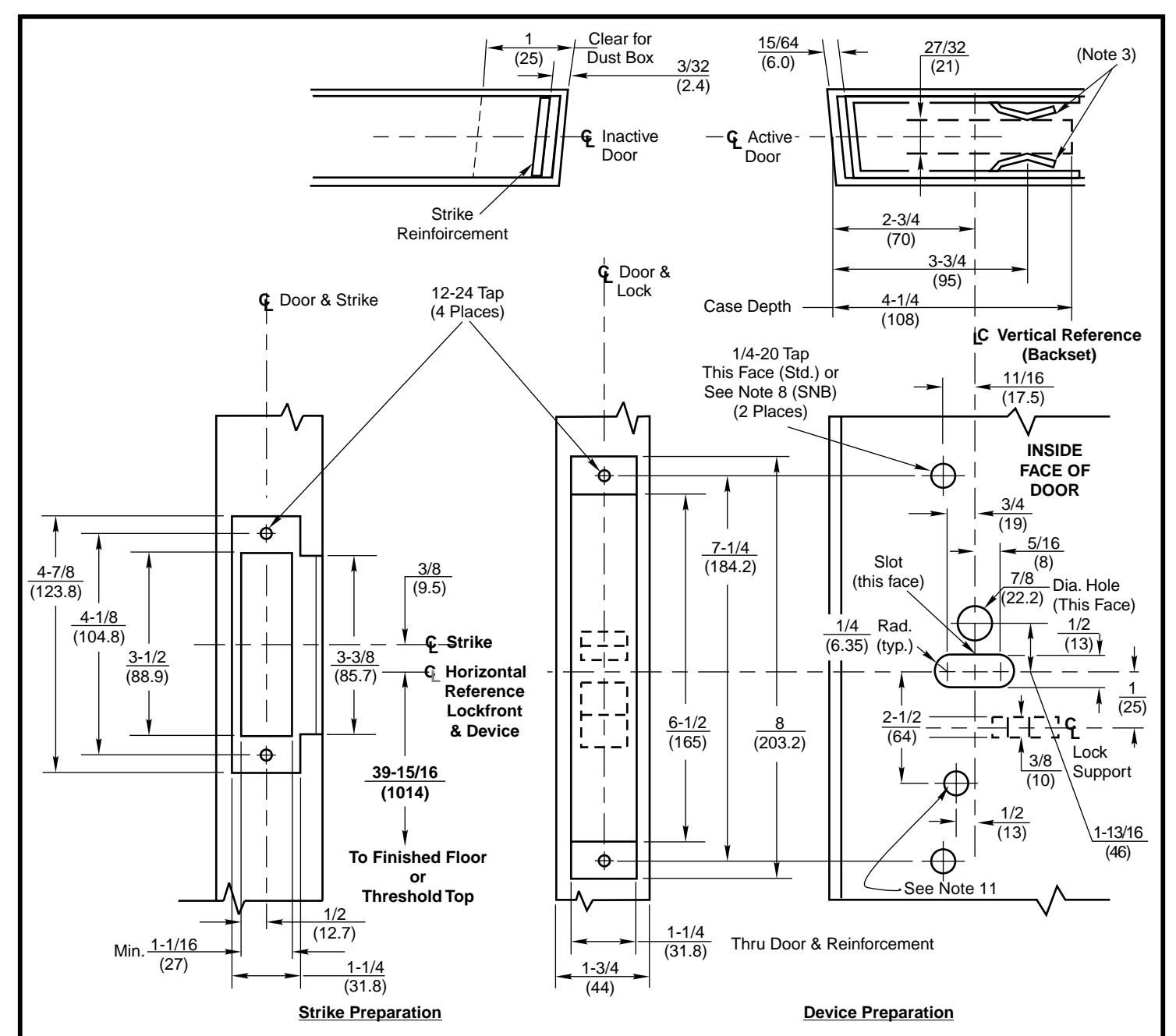

ED5602 & ED5602A Series Double Cylinder Mortise Exit Devices with ANSI A115.1 Strike

Application for Pair of Metal Doors without Mullion
