Notes:

• Minimum door stile width 4-1/2(114).
• 2. Dimensions are in inches (mm). Do not scale draw-
• 3. Unless otherwise specified, door preparation and dimensional tolerances must conform to ANSI A115.1 (lock), and A115.14(strike). Lock support required as shown.
• 4. For trim preparation see appropriate trim template.
• 5. Prepare mounting holes when installing the device.
• 6. LHR active pair shown. Preparation is typical for both
• 7. For door reinforcements see template T30800. Unreinforced doors require optional SNB to mount the devices

• 8. Holes for optional SNB: 9/32 (7.00) dia. inside door face; 3/8 (9.50) dia. outside door face.
• 9. Dimensions given about a centerline are symmetrical.
• 10. Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
• 11. For electrical device suffixes "-safe", "-secure", M91, or M93: 1/2 (12.70) diameter, this face, plus prep shown on template T30890.
• 12. For electrical device suffixes M92, M94 or M97 also see template T30890.
• 13. Latchbolt centerline is 23/32 (18.2) below & Auxbolt centerline is 3/16 (4.8) above the centerline of lockfront.
• 14. Strike clearance required: 7/8 (22.2) deep on inside face and 1/8 (3.2) deep on outside face.

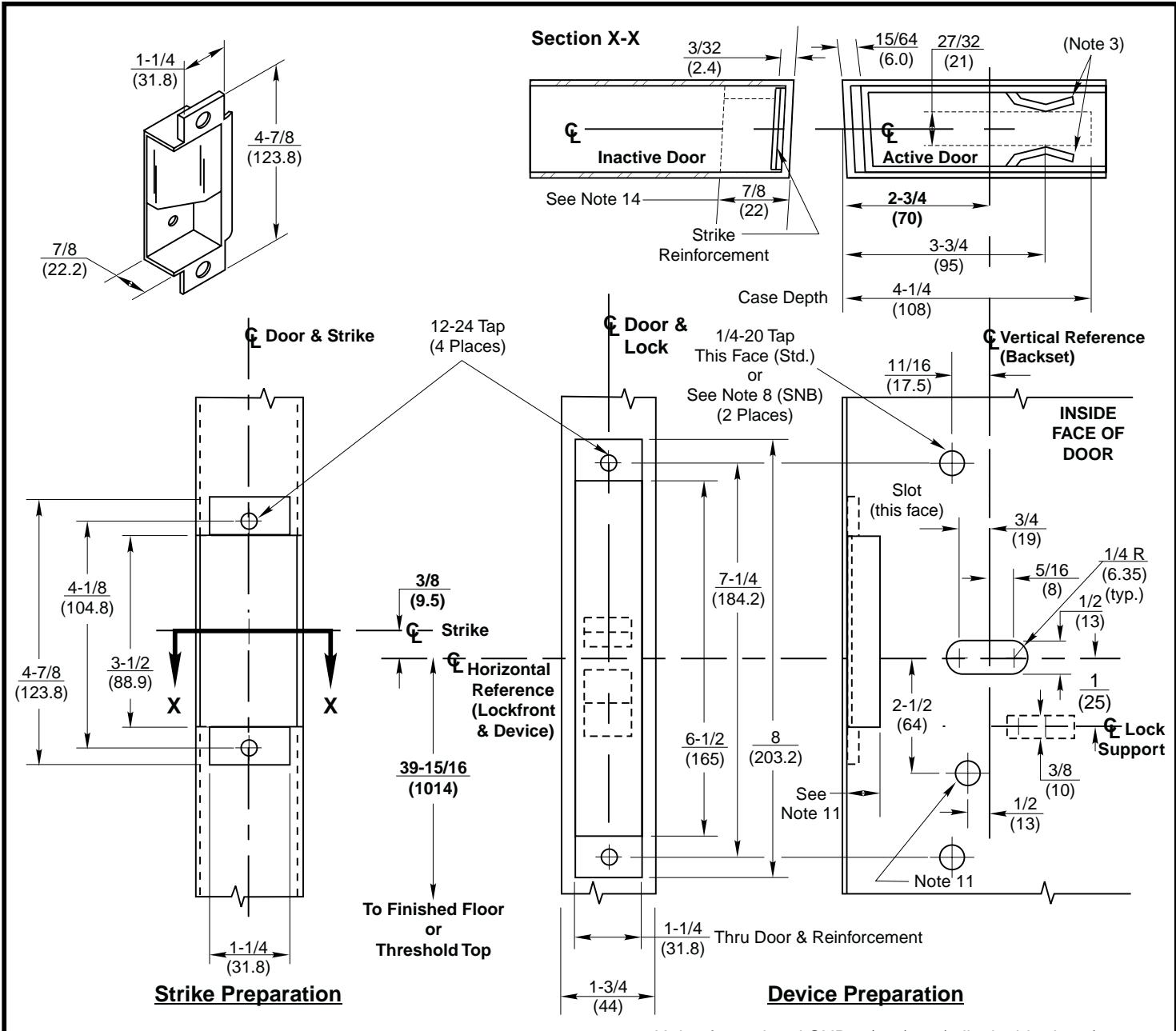

ED5600 & ED5600A Series Mortise Exit Devices with Optional SB134 or SB214 Open Back Strike Application to Pair of Metal Doors without Mullion

SUPERSEDES T30889 DO NOT SCALE DRAWING

TEMPLATE NUMBER

T30889-1 DATE 9-99
