• Minimum Stile Width 4-1/2(114).
• Unless otherwise specified, preparation and dimensional tolerances must conform to ANSI A115.1(frame) and A115.1W (door).
• For outside trim preparation see appropriate trim template.
• 4. Prepare mounting holes when installing the device.
• LHR pair shown. Preparation is typical for both hands.
• 6. Dimensions are in inches (mm). Do not scale drawing.
• 7. Dimensions given about a centerline are symmetrical.
• 8. Device mount to hinge stile (not shown) requires hole location and preparation during device installation.

• For electrical device suffixes "-Safe", "-Secure", M91, or M93: 1/2 (12.70) diameter thru this face, plus prep shown on template T30890.
• 10. For electrical device suffixes M92, M94, or M97 also see template T30890.
• 11. Wood screws #14x1-1/4" (by others) permitted in solid core wood doors if pilot holes are used for installation, when door label allows its use.
• 12. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 13. Latchbolt centerline is 23/32 (18.2) below & Auxbolt centerline is 3/16 (4.8) above the centerline of lockfront.

TEMPLATE NUMBER

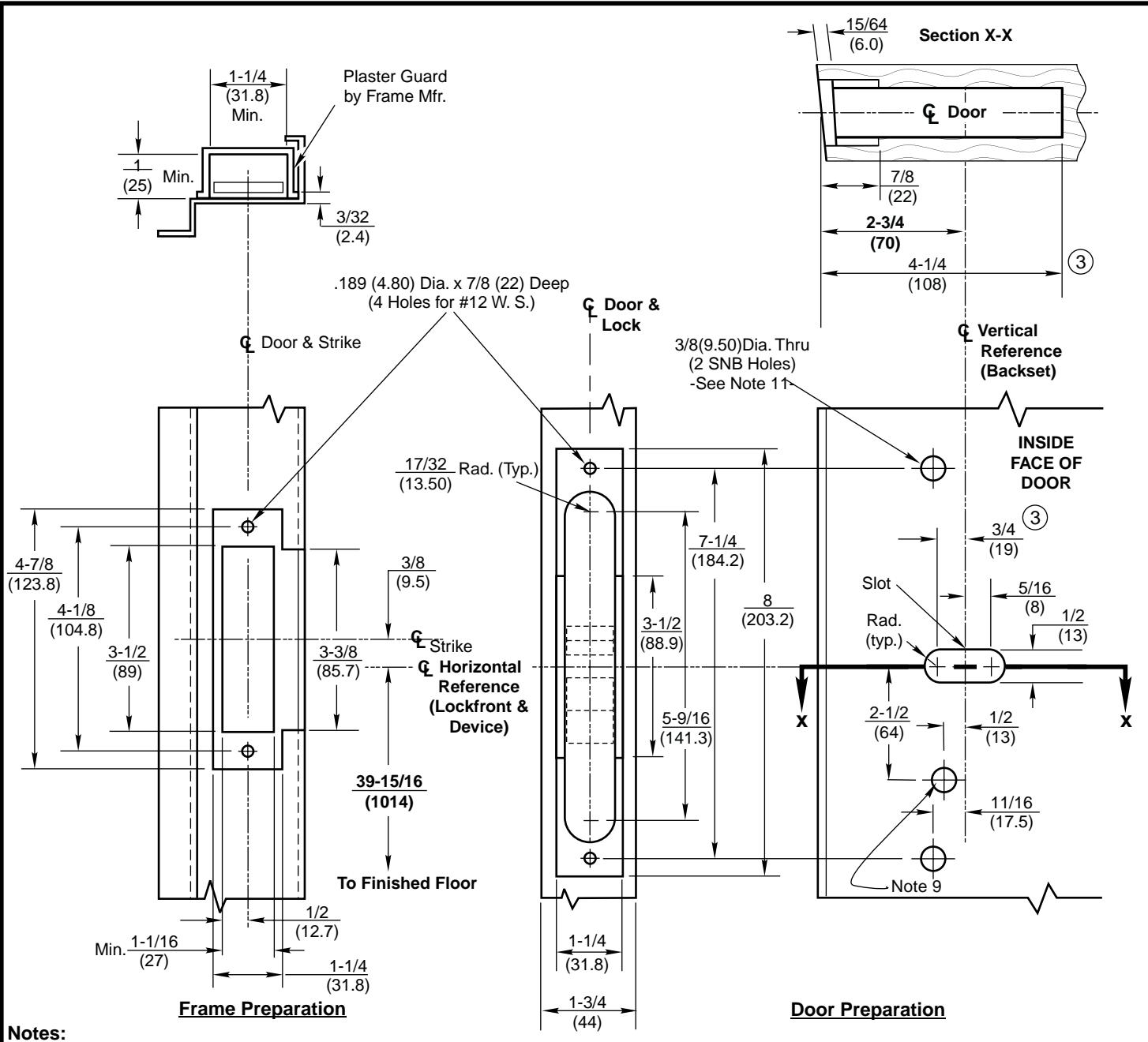

ED5600 & ED5600A Series Mortise Exit Devices with ANSI A115.1 Strike & Optional SNB Application for Wood or Composite Door and H.M. Frame

www.corbinrusswin.com DO NOT SCALE DRAWING T30843-2

T30843-3

DATE 6-04
