Notes:

• 1. Do not scale drawing.
• 2. Dimensions are in inches (mm).
• LHR active pair shown. Preparation is typical for both 3.
• 4. Minimum door stile width 4-1/2(114).
• 5. Prepare mounting holes when installing device.
• 6. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
• 7. Device mount to hinge stile (not shown) requires hole(s) location and preparation during device installation.
• 8. For outside trim preparation see appropriate trim template.

• Unless otherwise specified, door preparation and dimensional tolerances must conform to ANSI A115.1W.
• 10. Dimensions given about a centerline are symmetrical.
• 11. Wood screws (#14x1-1/4", by others) permitted in solid core wood doors if pilot holes are used for installation when door label allows its use.
• 12. For electrical devices suffixes "-Safe", "-Secure", M91, or M93: 1/2 (12.70) diameter thru this face, plus prep shown on template T30890.
• 13. For electrical device suffixes M92, M94, or M97 also see template T30890.
• 14. Dimension is 1 (25) if dust box is used.
• 15. Latchbolt centerline is 23/32 (18.2) below & Auxbolt centerline is 3/16 (4.8) above the centerline of lockfront.

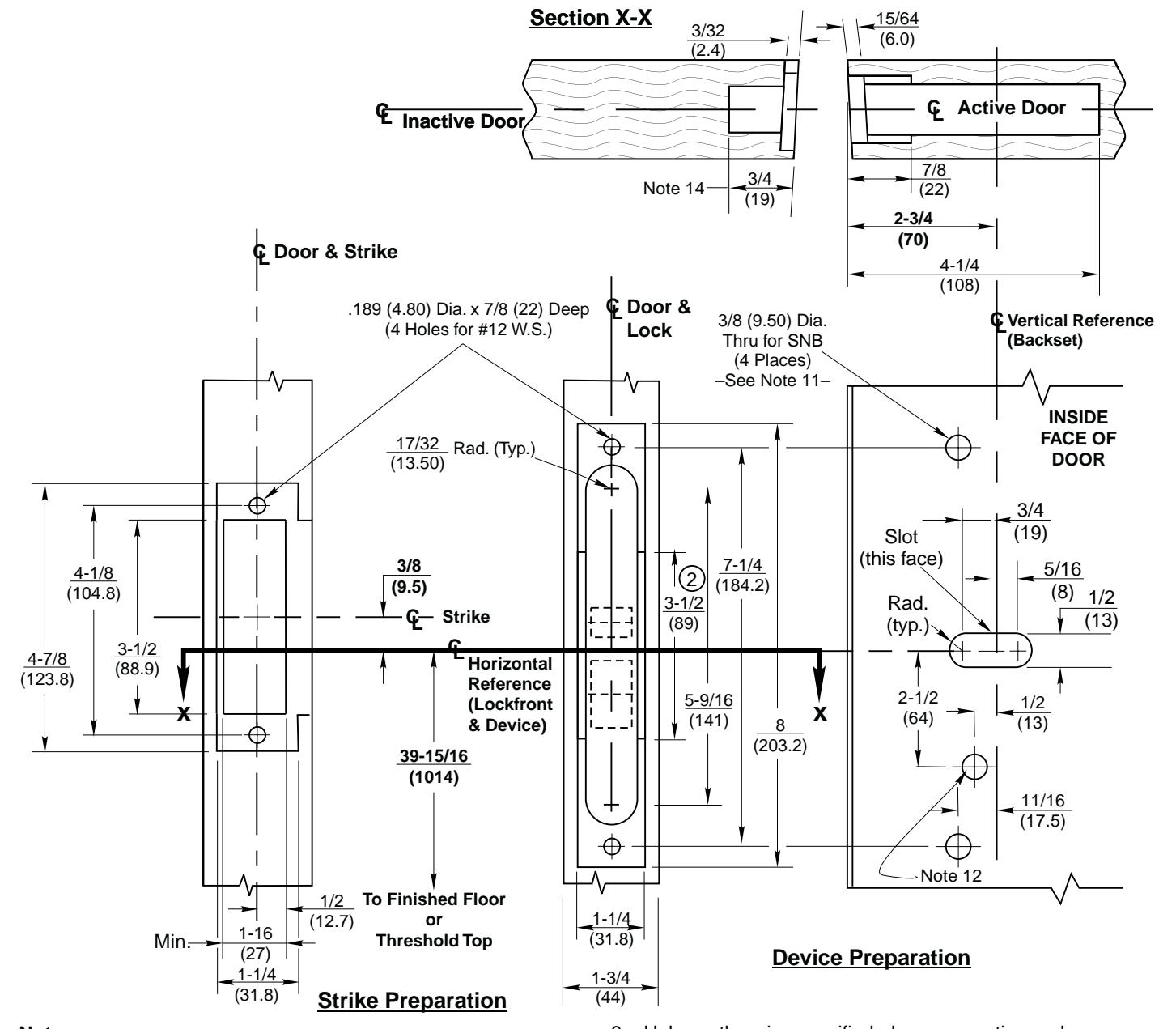

ED5600 & ED5600A Series Mortise Exit Devices with ANSI A115.1 Strike & Optional SNB

Application for Pair of Wood or Composite Doors without Mullion

TEMPLATE NUMBER DATE 9-99

T30844-2
